Midea CTBU-09HWFN1-M

139
 MOCA01-18HFN1-MT0W
No.
Part name
Procedures
Remarks

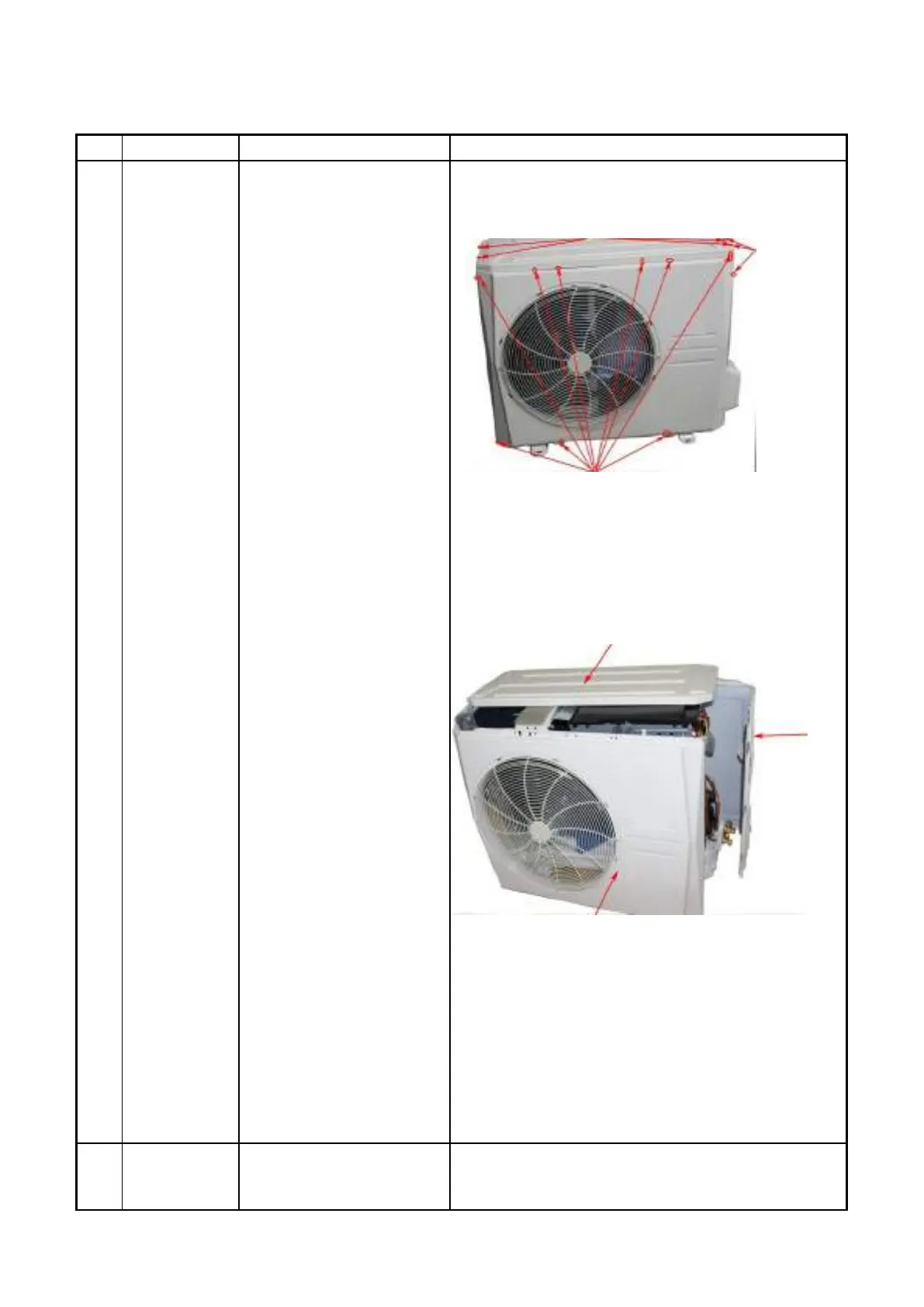

Panel plate
How to remove the panel
plate.
1) Stop operation of
the air conditioner and turn
“OFF” the power breaker.
2) Remove the top panel(7
screws).
3) Remove the screws of
front panel(9 screws)
4) Remove the screws of
the right side panel(10
screws)
○
2
○
4
○
3
2
Fan ass’y
How to remove the fan
ass’y.
4 screws of top panel
9 screws of front panel
3 screws of
big handle
