Midea CTBU-09HWFN1-M

150
 MOBA30-09HFN1-MT0W
No.
Part name
Procedures
Remarks

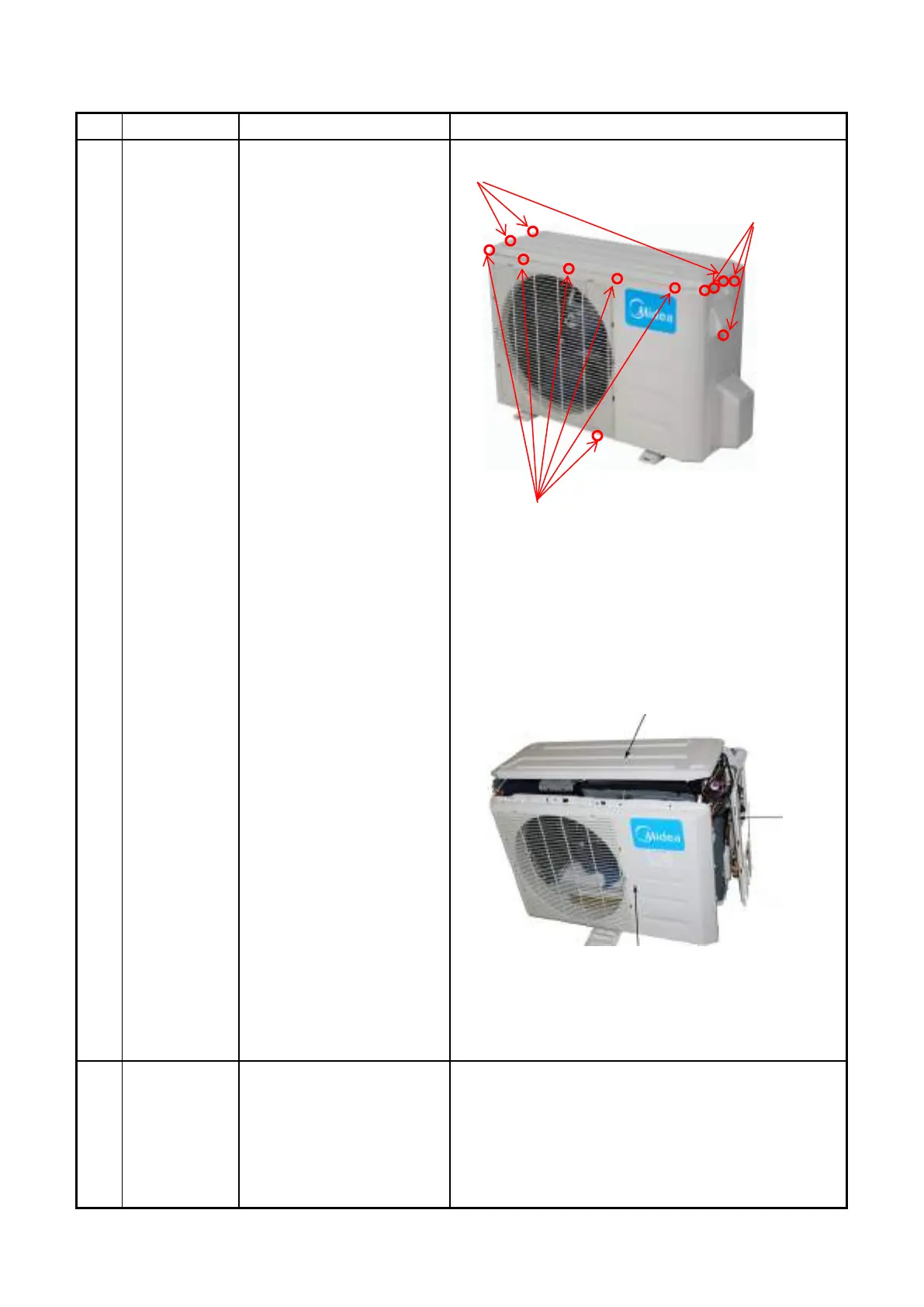

1
Panel plate
How to remove the panel
plate.
1) Stop operation of the
air conditioner and turn
“OFF” the power breaker.
2) Remove the big
handle first,then remove
the top cover (3 screws)
3) Remove the screws of
front panel(7 screws)
(4) Remove the screws of
the right side panel(11
screws)
○
2
○
4
○
3
○
3
2
Fan ass’y
How to remove the fan
ass’y.
1) After remove the
Screws of front panel(7 screws)
Screws of top panel (3 screws,1 screws is under the big handle)
3 screw of
big handle
