Midea CTBU-09HWFN1-M

151
panel plate following
procedure 1.

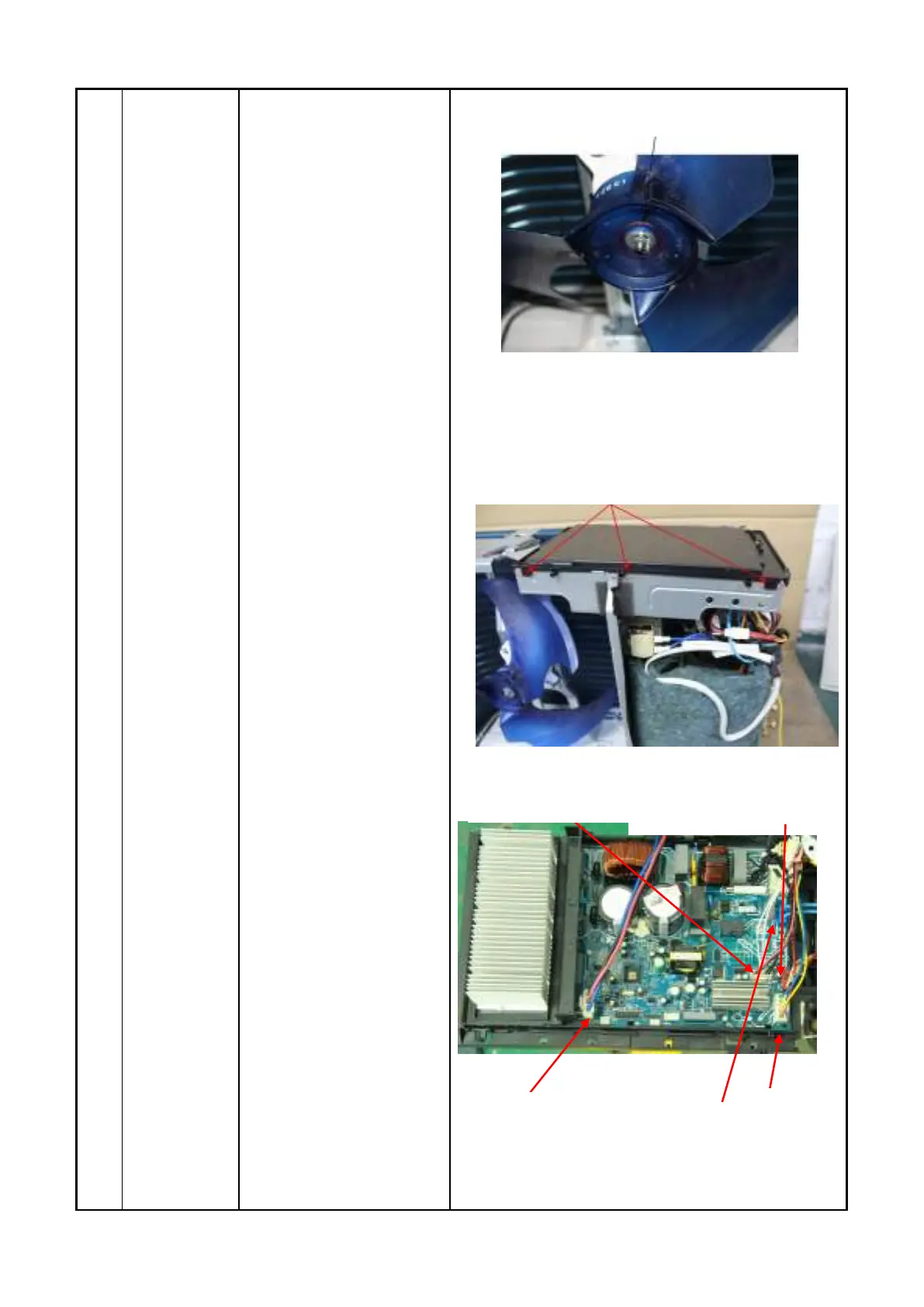

2) Remove the nut fixing
the fan, and remove the
fan.
3) After remove the top
cover .Unfix the hooks and
then open the electronic
control box cover.
4) Disconnect the
connector for fan motor
from the electronic control
board.
○
2
○
3
compressor
T3,T4,T5 sensor
Motor
Electronic expansion valve
4 way valve
