155
4

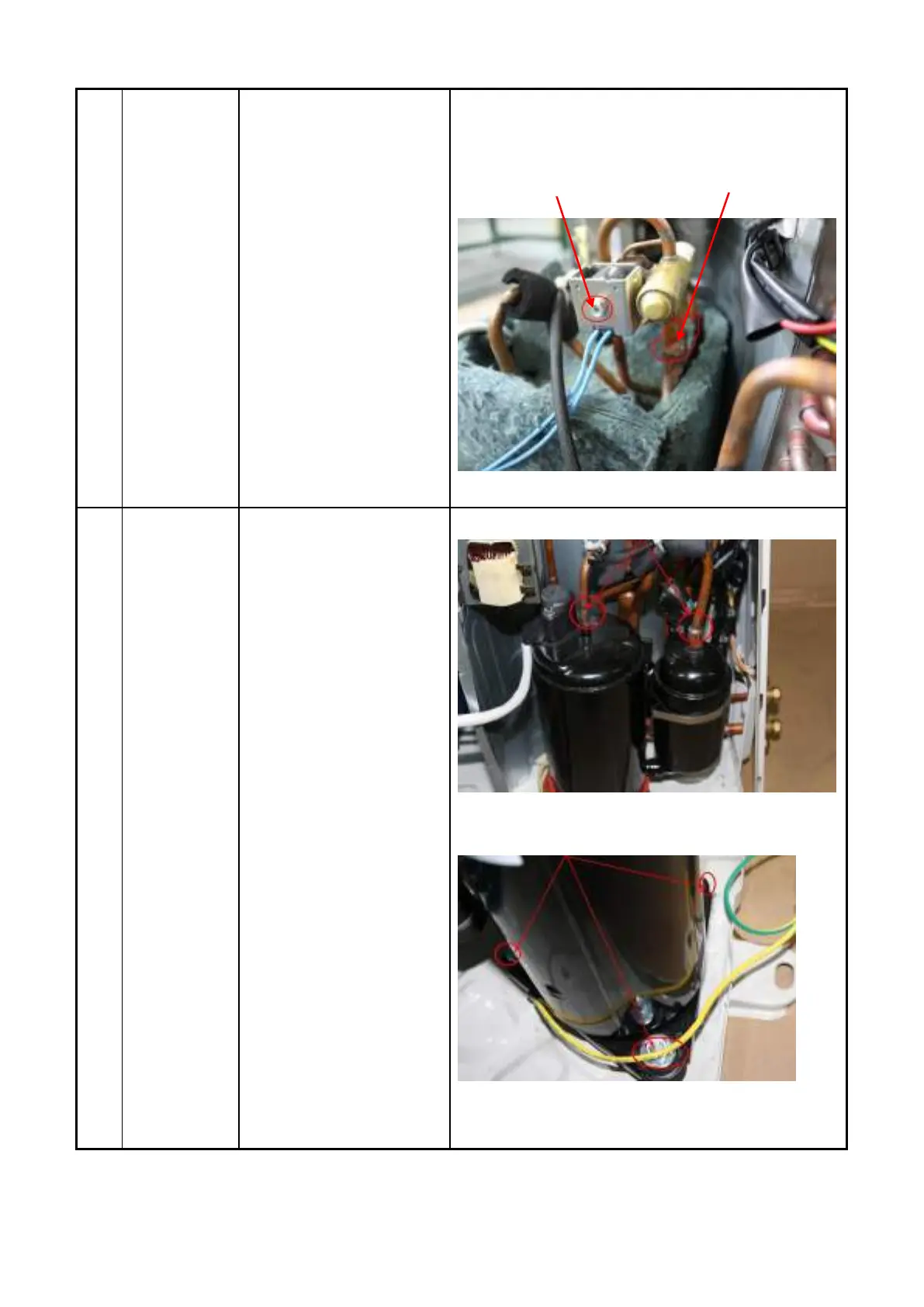

Four-way
valve
How to remove the
four-way valve.
1）Perform work of item
1,3.
2)Recover refrigerant from
the refrigerant circuit.
3)Remove the screw of the
coil and then remove the
coil.
4)Detach the welded parts
of four-way valve and pipe.
5)Then the four-way valve
ass’y can be removed
The picture of four-way valve may be different from
the one on your side.
5
Compressor
How to remove the
compressor.
6) After perform work of
item1,3. Recover
refrigerant from the
refrigerant circuit.
7) Remove the
discharge pipe and suction
pipe with a burner.
8) Remove the hex nuts
and washers fixing the
compressor on bottom
plate.
9) Lift the compressor
from the base pan
assembly.
○
2
○
3
④
○
3
