156
 MOB30-09HFN1-MX0W, MOB30-12HFN1-MV0W, MOB30-12HFN1-MT0W
No.
Part name
Procedures
Remarks

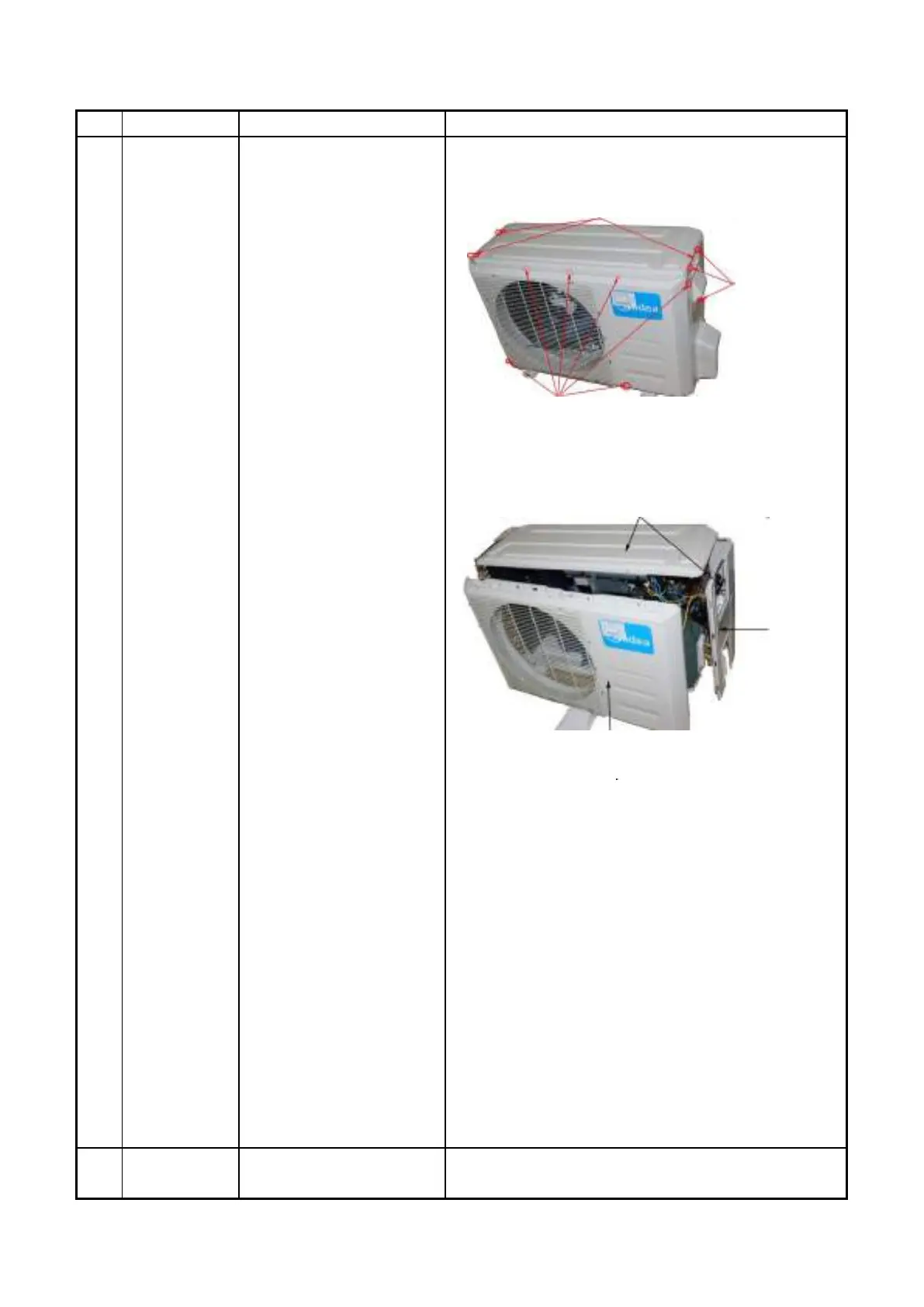

Panel plate
How to remove the panel
plate.
1) Stop operation of
the air conditioner and
turn “OFF” the power
breaker.
1) Remove the big
handle first, and then
remove the top panel(3
screws).
3) Remove the screws of
front panel(6 screws)
(4) Remove the screws of
the right side panel(8
screws)
○
2
○
4
○
3
2
Fan ass’y
How to remove the fan
Screws of top panel (3 screws, 1 screw is under the big handler)
3 screws
of the big
handler
6 screws of front panel
