10 32801000801
Specifications subject to change without notice.
DRAIN CONNECTIONS
Install drains must meet local sanitation codes.
Install the outdoor unit drain joint
Fit the seal into the drain joint, then insert the drain joint into the base
pan hole of the outdoor unit. Rotate 90
_ to securely assemble them.
Connect the drain joint with an extension drain hose to avoid
condensate from draining off the outdoor unit during heating mode.
Seal
Base pan hole
Drain joint
Seal
Base pan
Drain
joint

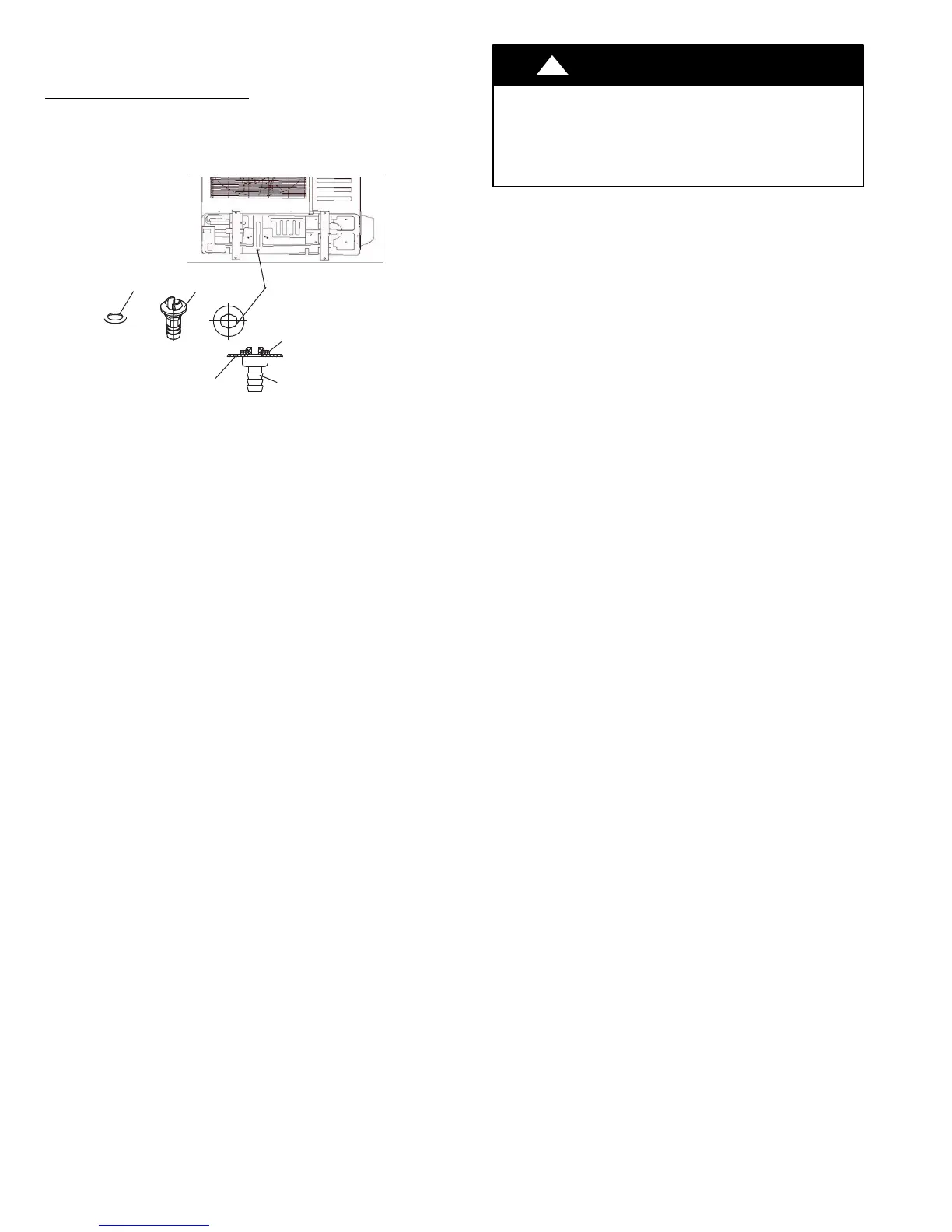

Fig. 11 - Drain Joint
Images are for illustration purposes only.
CAUTION
!
In cold climates, ensure the drain hose is as vertical as
possible to ensure swift water drainage.
If water drains too slowly, it can freeze in the hose and flood
the unit.
NOTE: Basepan built−in with multiple holes for proper draining
during defrost. For applications where it is required to seal these holes,
and re−direct the condensate drain, rubber plugs are available through
RCD.
Table 8—Base Pan Base Rubber Plugs
Outdoor Unit Model
Number
Base Pan Base
Rubber Plugs RCD
Part Number
Quantity per
Unit
DLCSRAH09AAJ
DLCSRAH12AAJ
DLCSRAH09AAK
DLCSRAH12AAK
12600801A00077 13
DLCSRAH18AAK 12600801A00077 25
DLCSRAH24AAK
DLCSRAH30AAK
DLCSRAH36AAK
12600801A00117 5
