Midea EN600C4 - Before Locating the Fixing Brackets

14
L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
590
520
50
46
560
490
50 mini

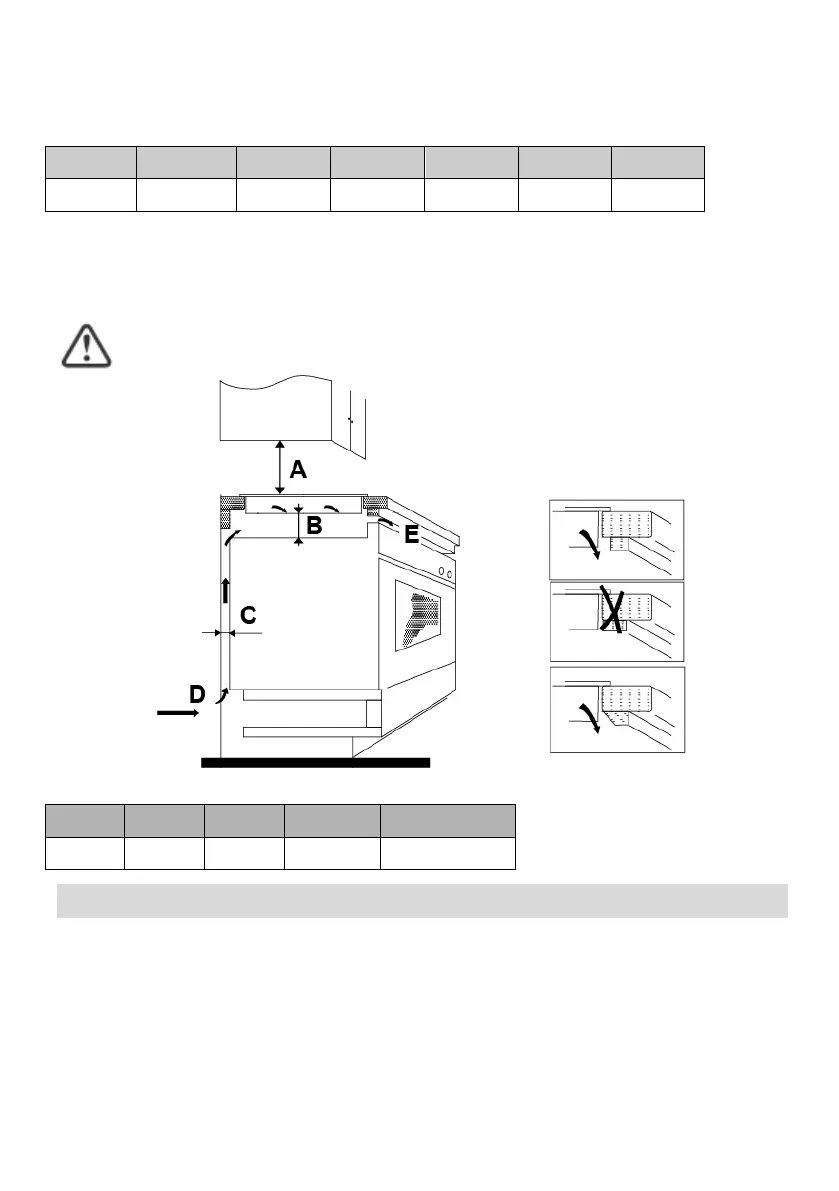

Under any circumstances, make sure the ceramic cooker hob is well ventilated
and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in
good work state. As shown below
Note: The safety distance between the hotplate and the cupboard above
the hotplate should be at least
6 0 mm. 5
A(mm)
B(mm)
C(mm)
D
E
0 65
50 mini
20 mini
Air intake
Air exit 5mm
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the packaging). Do not
apply force onto the controls protruding from the hob.
Fix the hob on the work surface by screw four brackets on the bottom of hob (see
picture) after installation.
