Midea F Series

17

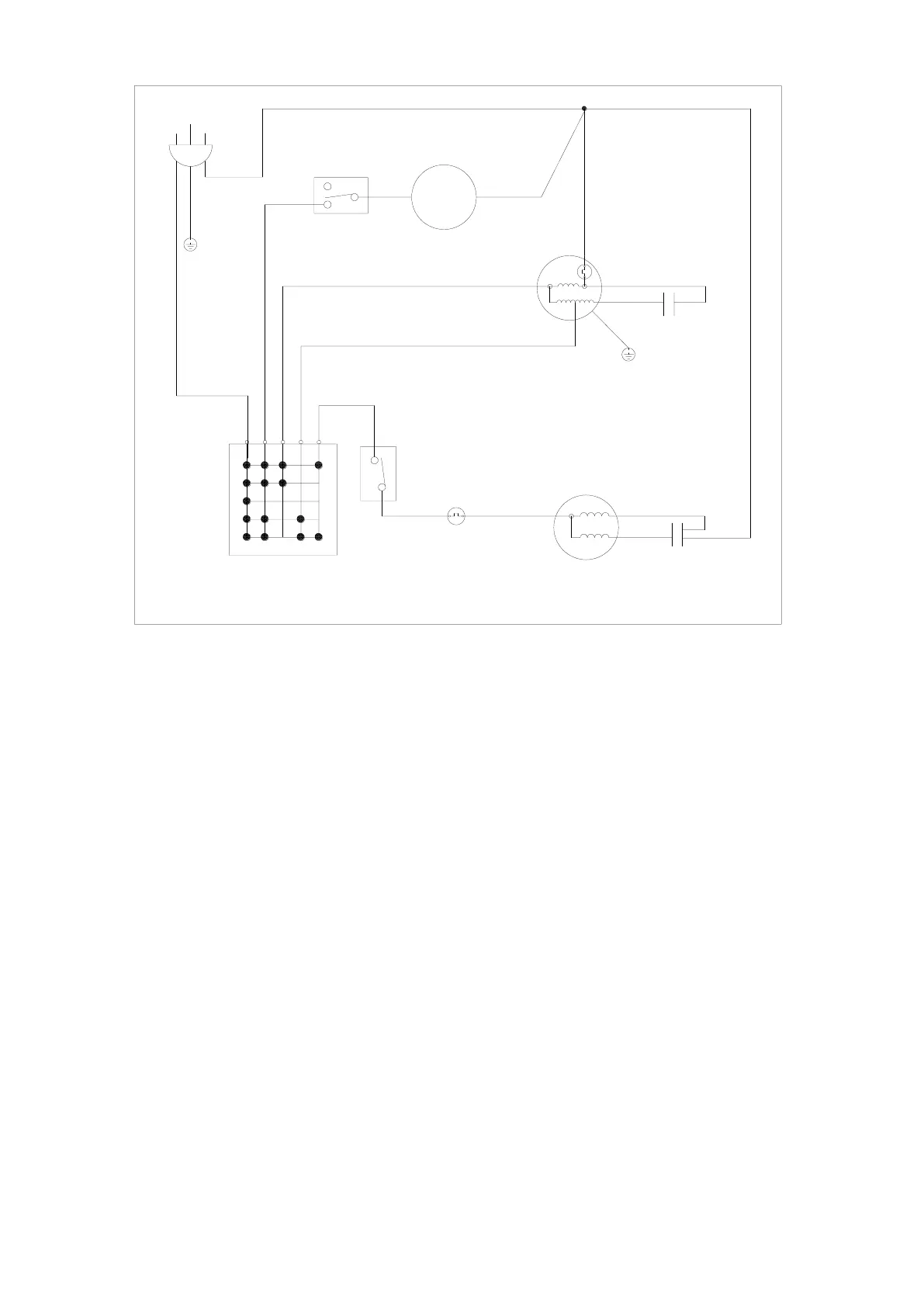

(5). HT-KC28/E4(MWH-10CM), HT-KC32/E4(MWH-12CM)
HIGH COOL
HIGH FAN
OFF
LOW FAN
LOW COOL
0
4
2
1
3
MAIN SWITCH
COMPRESSOR
THERMOSTAT
BLUE
WHITE(N)
L
C
BLACK
GREEN
BLACK(L)
BLACK
BLACK
BLUE
R
C
S
BLUE
CAPACITOR
CAPACITOR
RED
FAN MOTOR
RED
YELLOW
M
~
RED
BLUE
LOUVER MOTOR
1
1b
1a
LOUVER SWITCH
O.T.P
RED
(E)
RED
G&Y
16020300001084
