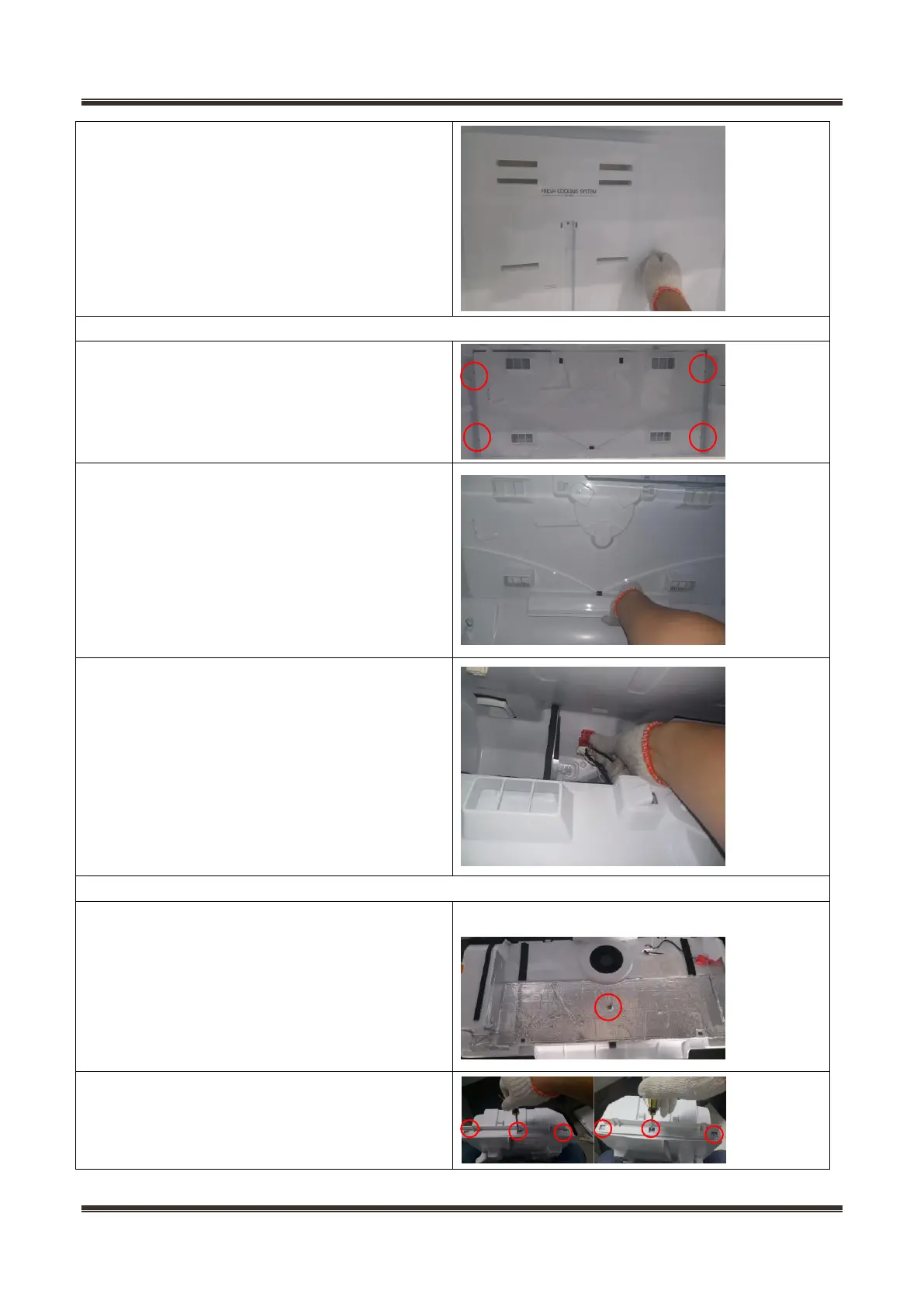

4）dismantle the air duct cover of refrigerator
room.
Air duct components in freezing chamber
1） Use cross screwdriver to rotate
anticlockwise, for remove the 4 pcs screws;
2） Dismantle the air duct cover outwards;
3） pull out the fan motor and temperature sensor
plug-in terminal at the upper right corner.
1）Make air duct aluminum foil be away from the
back cover of air duct, Use cross screwdriver to
rotate anticlockwise, for remove the 1 pcs
screw;
2)Use slotted screwdriver to dismantle the clips of
air duct cover;
