4） Separate the sensor and the evaporator;
5） Take off the defrost heater from the supporting
plate of evaporator;
6） Take off the defrost heater from the
evaporator;
7） *Don’t break the welding of the evaporator in
case that only the defrost heater needs to be
replaced.

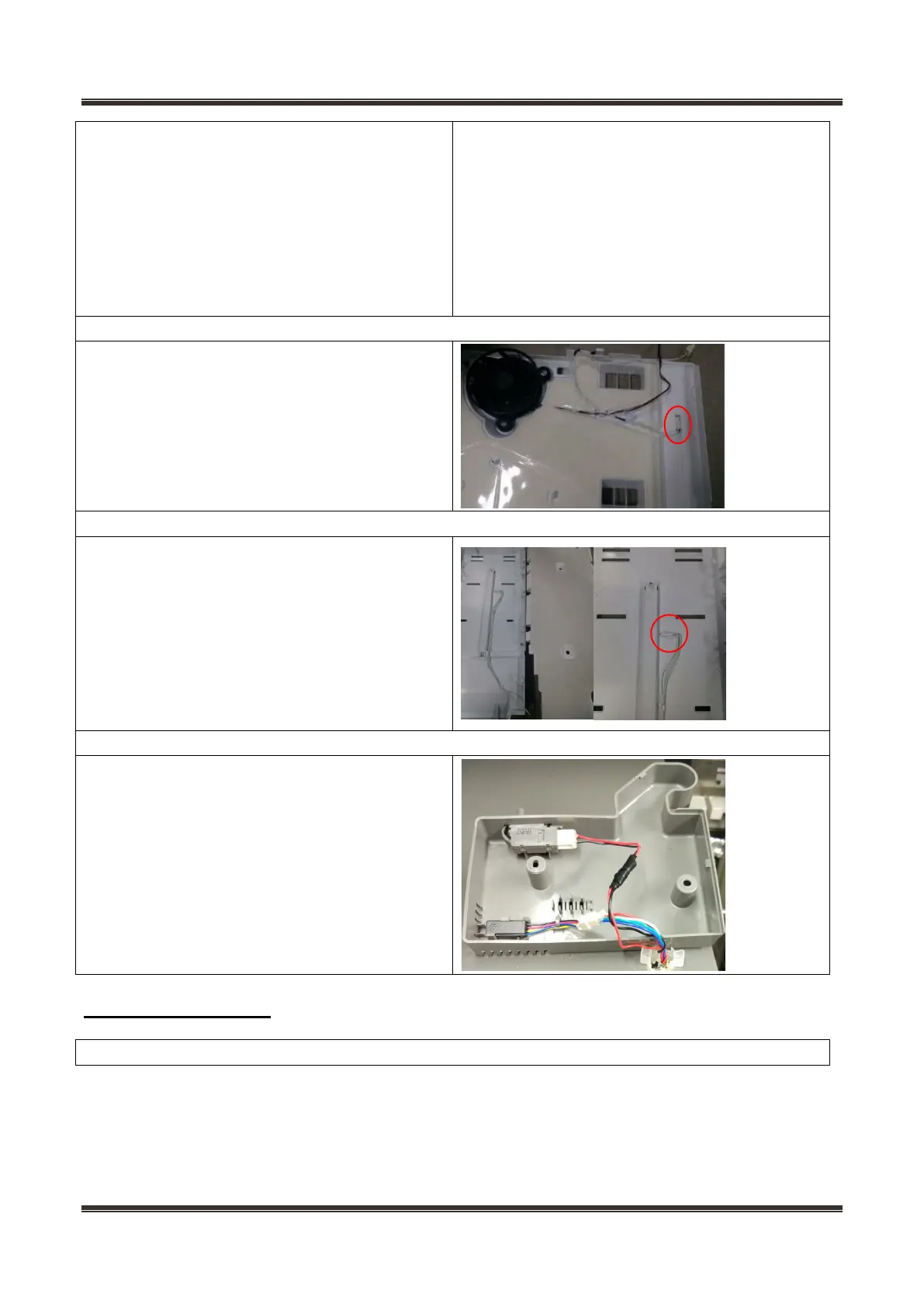

Sensor in freezing chamber
1)2)All air duct components in the freezing
chamber should be dismantled before removing
the temperature sensor in the freezing chamber.
1) Rip the adhesive tape which fixes the harness;
2) Remove the sensor.
Sensor in refrigerating chamber
The air duct components in refrigerating chamber
should be dismantled before removing the sensor.
1) Remove the air duct components in
refrigerating chamber;
2) Remove the sensor.
Ambient temperature and humidity sensor
The sensors is located in the upper hinge cover of
the refrigerator right door, it sends a temperature
and humidity signal to the microprocessor.
8.6 Compressor case
Rear cover and compressor case
