3.3 Installation Accessories
Please check that you have all the following parts.
No. Name Quantity Remarks
1 Self-tapping screw 4 ST4* 20
2 Plastic expansion pipe 4 For use in installing the controller onto the wall
3 3 pin black terminal 3 For communication
4 3 pin gray terminal 1 For connecting the power supply
3.4 Installation Method

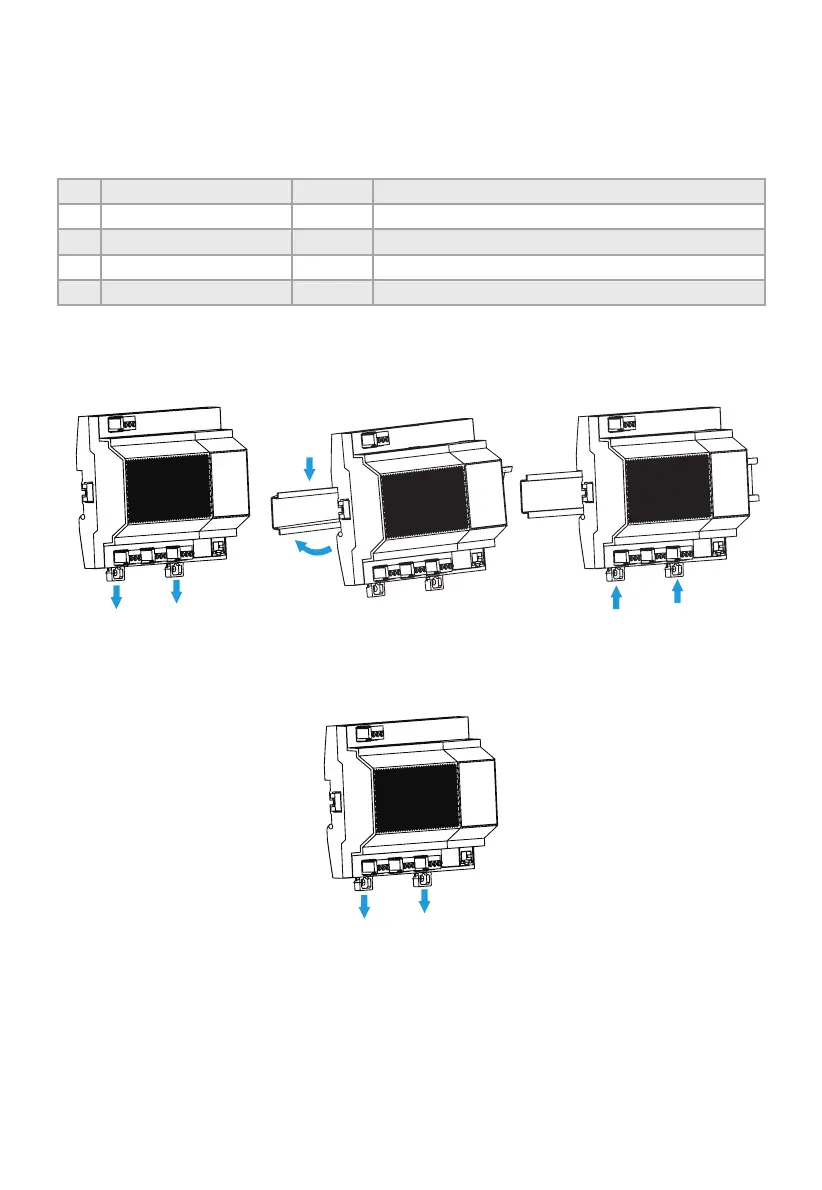

3.4.1. Installing the Guide Rail
Pull open the handle buckle
Snap t the product on the guide
rail
Close the handle buckle
3.4.2. Mounting the Device on the Wall
Pull open the handle buckle
