M thermal Split
Part 2
-
Component Layout
and
Refrigerant Circuits
MHA-V12W/D2RN8-B / MHA-V14W/D2RN8-B / MHA-V16W/D2RN8-B

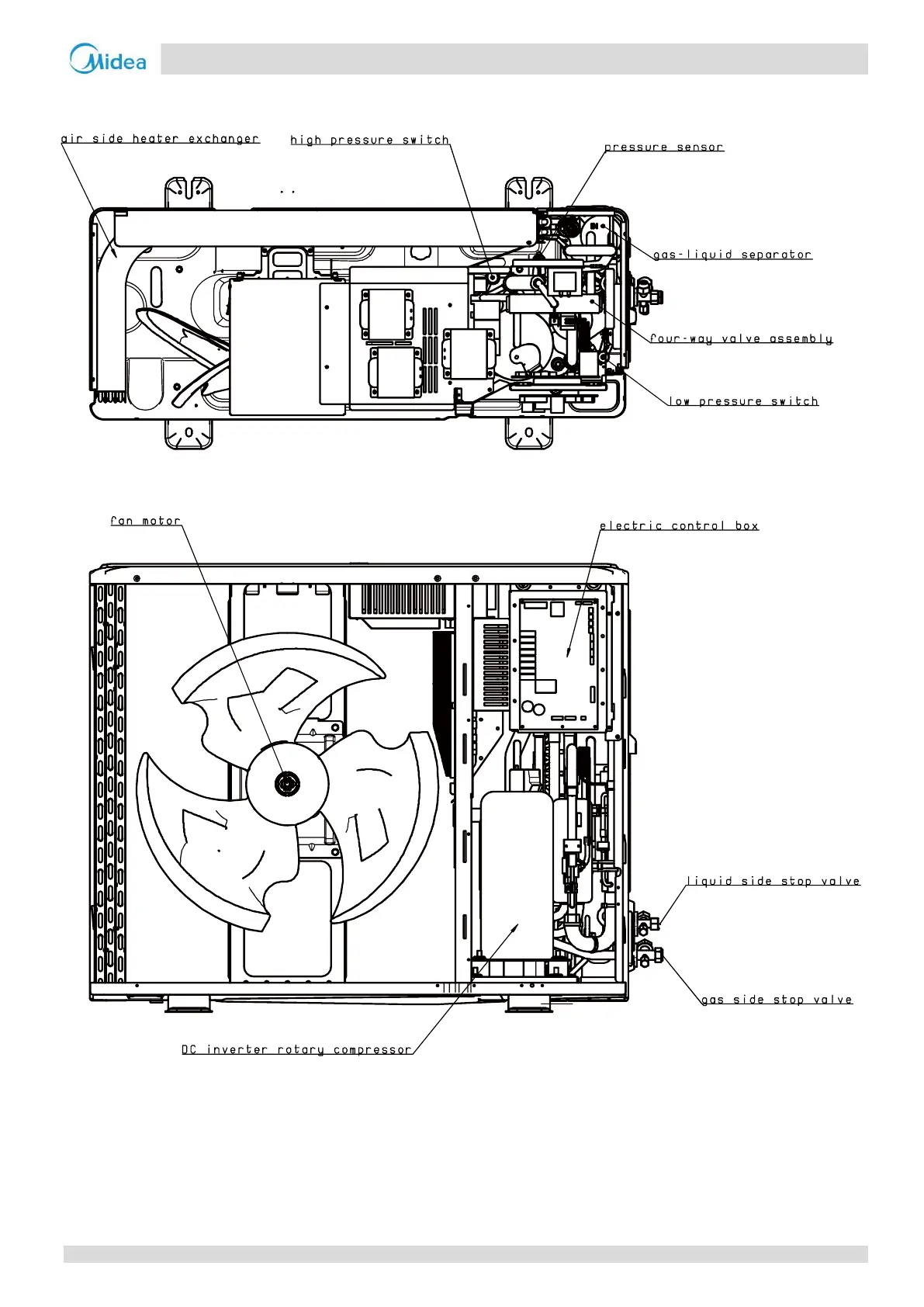

Figure 2-1.7: MHA-V12(14,16)W/D2RN8-B top view
Figure 2-1.8: MHA-V12(14,16)W/D2RN8-B front view
