1.2 Hydronic Box Layout

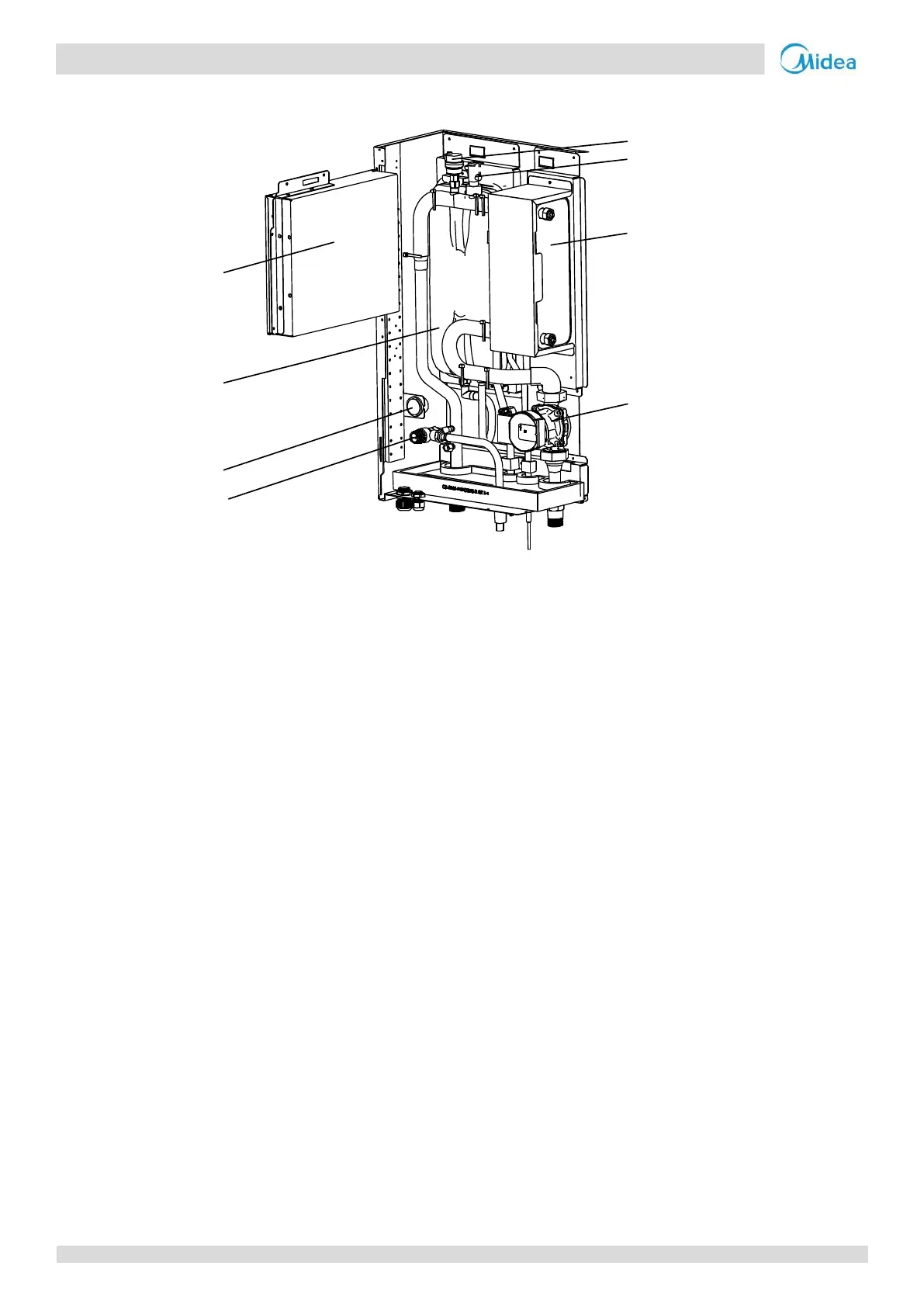

Figure 2-1.9: HB-A60(100,160)/CGN8-B oblique view
Electric control box
Expansion vessel
Manometer
Safety valve
Air purge valve
Water flow switch
Water side heat exchanger
Water pump
