8.6 Evaporator and Defrost system

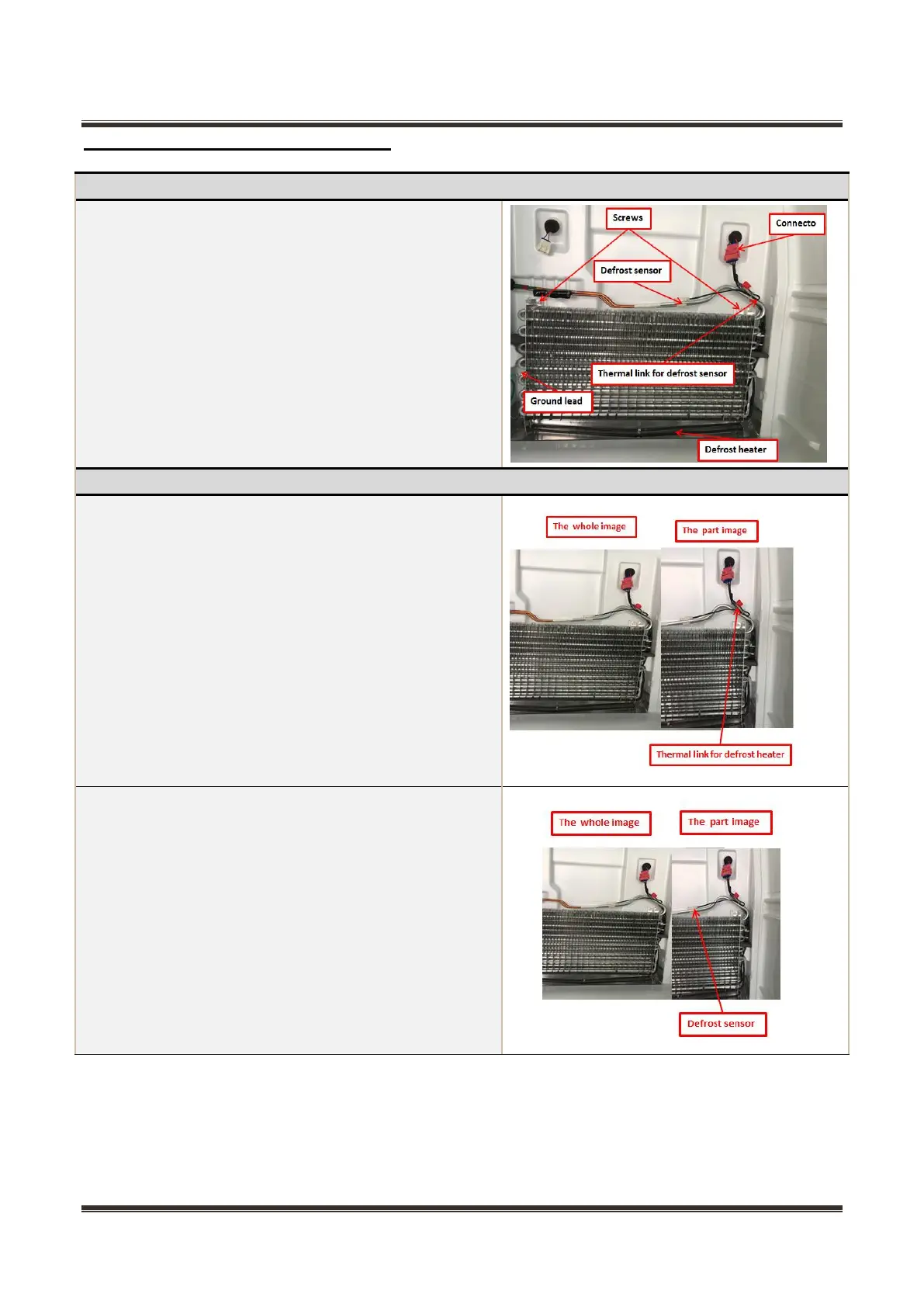

Evaporator in freezing chamber
1） Remove the air duct components in freezer chamber.
2） Disconnect all connectors.
3） Remove the welding on inlet and outlet tubes.
Components on the evaporator
Defrosting fuse
1）Disconnect the fuse connector.
2）Cut off the band which fixes the fuse.
3）Separate the fuse and the evaporator.
*Don’t break the welding of the evaporator in case that
only the fuse needs to be replaced.
Defrost sensor
The defrost sensor is located on top of the evaporator
pipe.
1）Disconnect the connector of defrost sensor
2）Cut off the band which fixes the sensor.
3）Separate the sensor and the evaporator.
