10. Function and operation

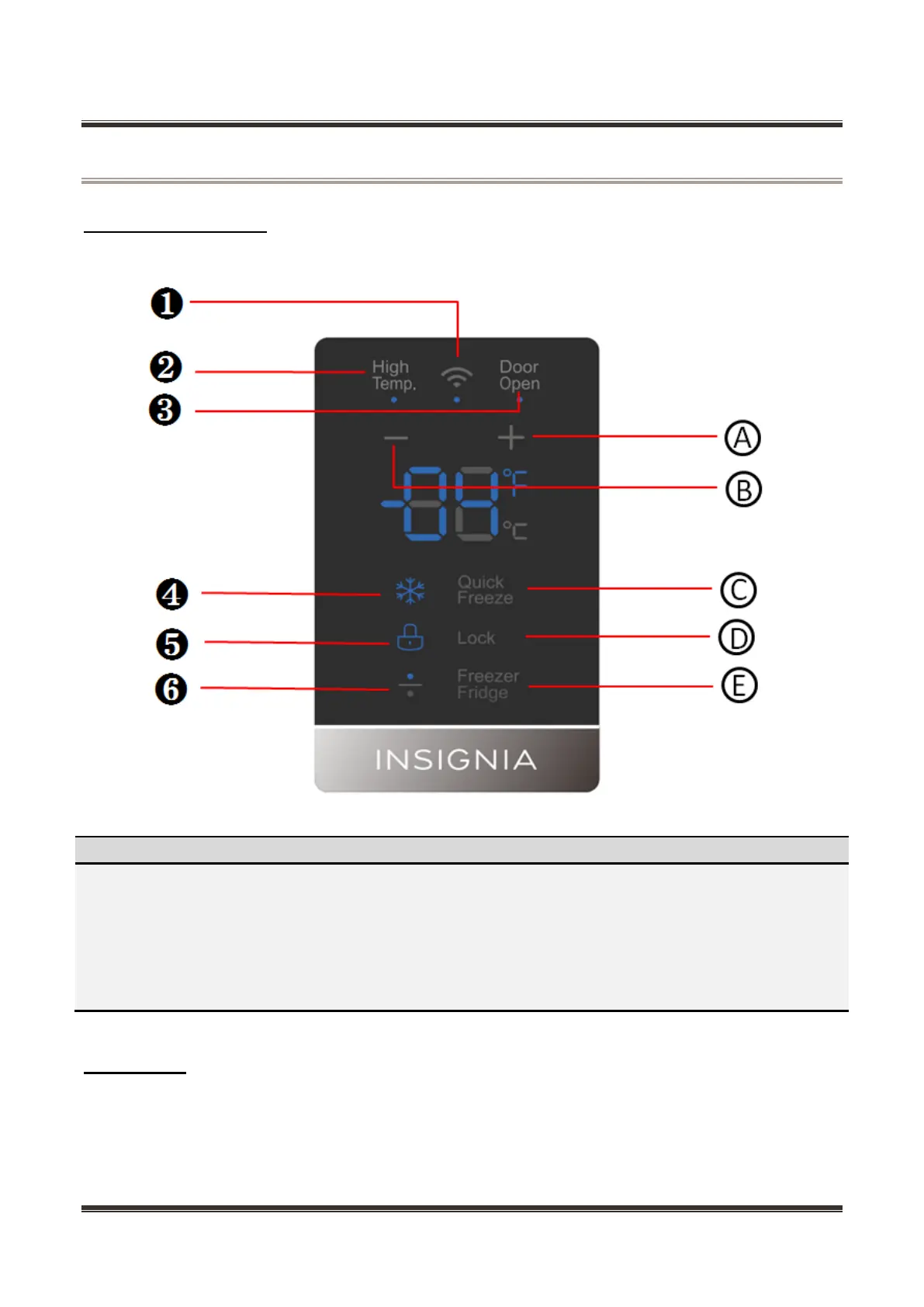

10.1 Operation panel
Icons
Button
❶WIFI access indicator
❷ High temperature alarm
❸Door opening alarm
❹Quick freezing indicator
❺Locking
❻Refrigerating and freezing switching
ⒶTemperature up key
ⒷTemperature down key
ⒸQuick freezing keyⒹKey for locking and
unlocking
ⒺRefrigerating and freezing switching
10.2Display
 When the system is powered on: the LED module and 7 LED lights are all on for 3 seconds. Then
enter the normal operation display
 Normal operation display: display the current set temperature
 In case of fault: display fault code
