Midea HS-507FWEN - Temperature Sensing System; Position of Sensors; Replacement of Sensors

Service Manual_2018-V2.0
32
9. temperature sensing system
9.1Position of sensors
9.3 Replacement of sensors

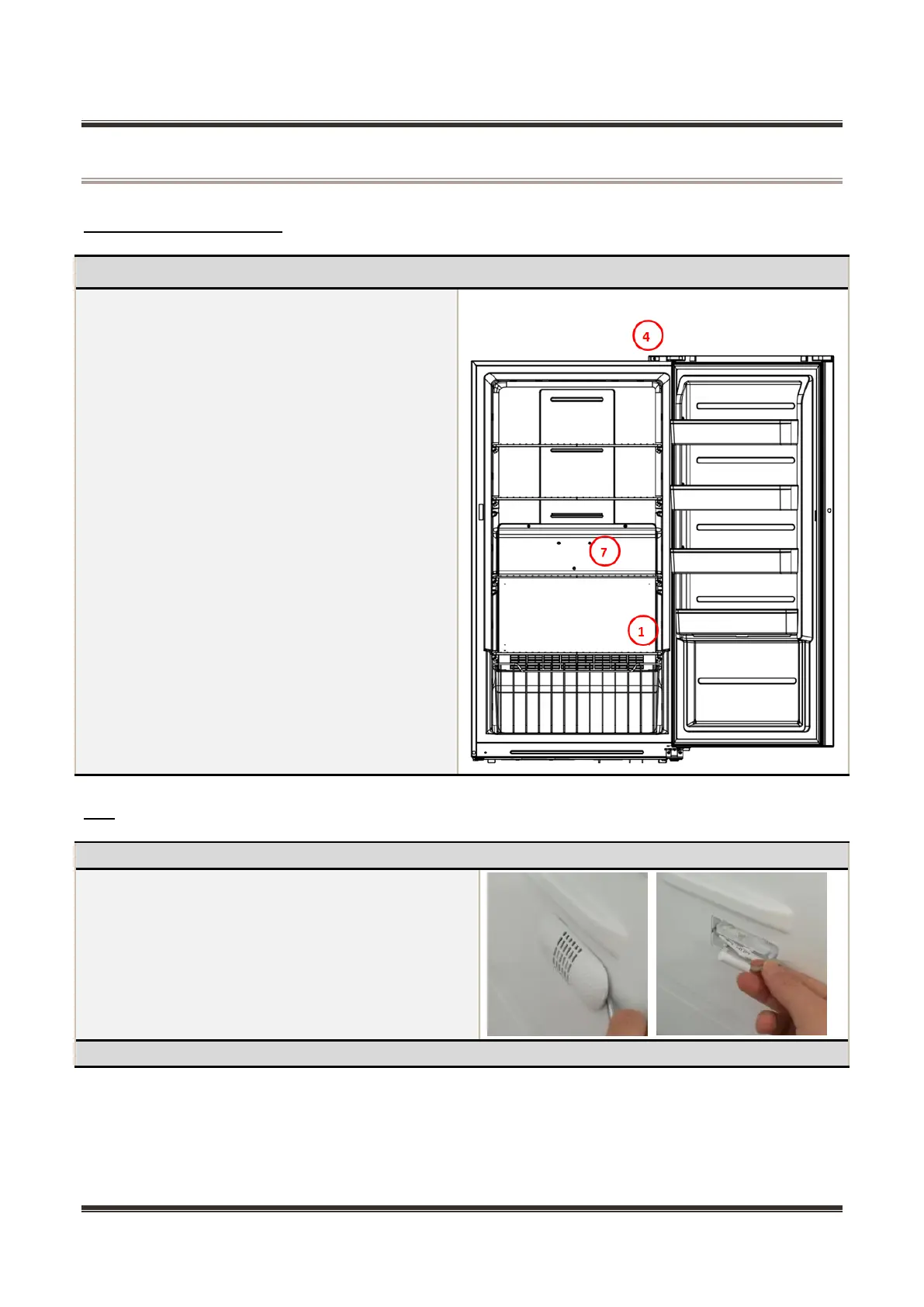

Position of sensors
Have 3 sensors
① Sensor in freezing chamber
② Sensor in refrigerating chamber
③ Sensor in Variable temperature chamber
④ Ambient temperature or humidity sensor
⑤ Ice machine sensor
⑥ Defrost sensor in refrigerating chamber
⑦ Defrost sensor freezing chamber
Sensor in refrigerating chamber
The sensor is located at right of refrigerating chamber
1）Pull out the cover
2）Pull out the sensors
Ambient temperature sensor
