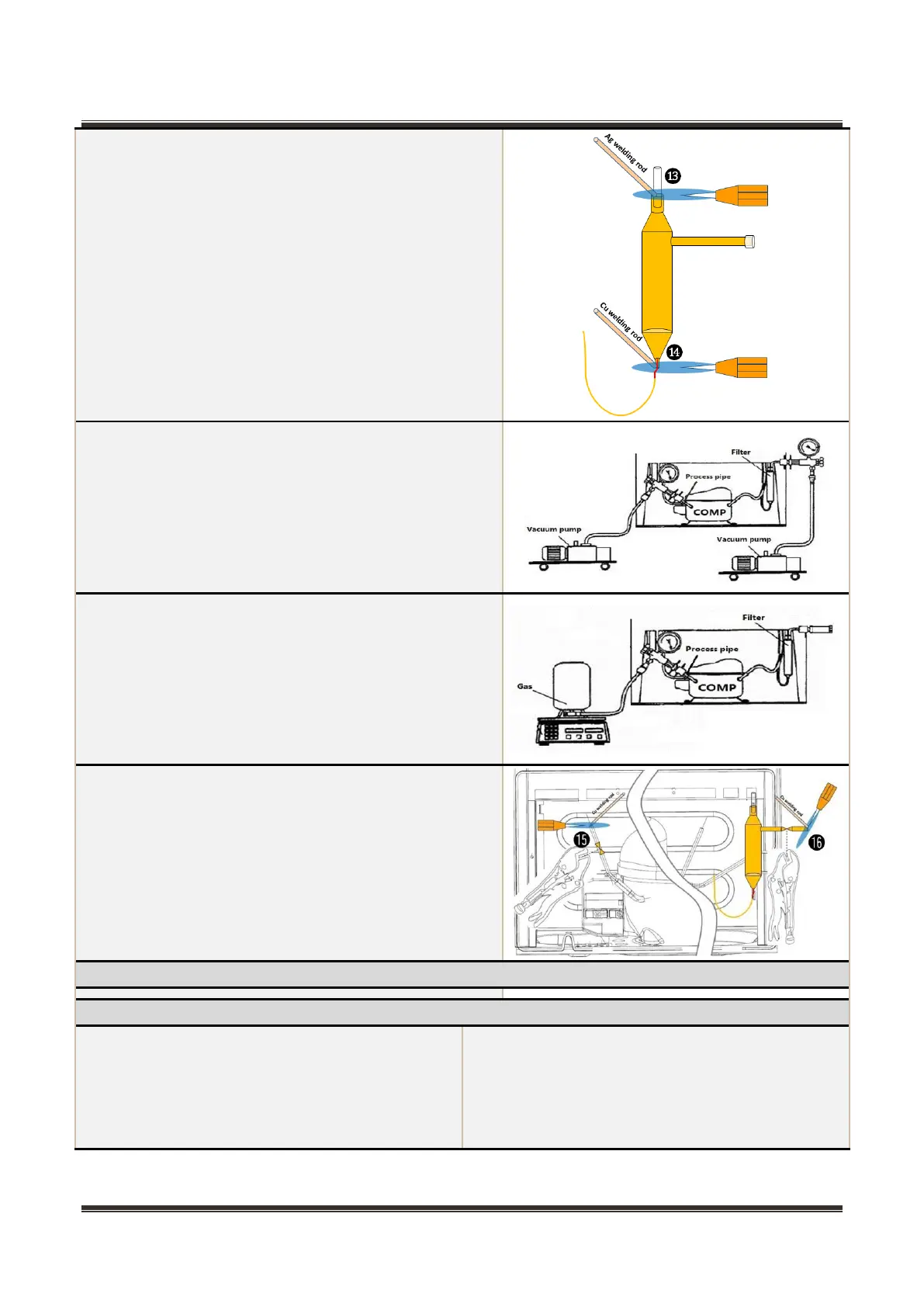

12）Replace the filter, Cu-Fe tubes welding ⓭ used Ag
welding rod, Cu-Cu tubes welding⓮ used Cu welding
rod.
13）Vacuum system,The degree of vacuum below 6Pa.
14）Perfusion refrigerant.
15）Use the vise grip pliers clamp the middle of the
process pipe, then seal welding process tube⓯⓰.
Back hanging wire tube condensor（None）
Piping system in the compressor case
1.Compressor
2. Suction connection tube
3.Dryer
4.Capillary tube
5. Anti-condensation tube
6. Right condenser
7. Left condenser
8.Component supplying pipe connector
9.Main control board
