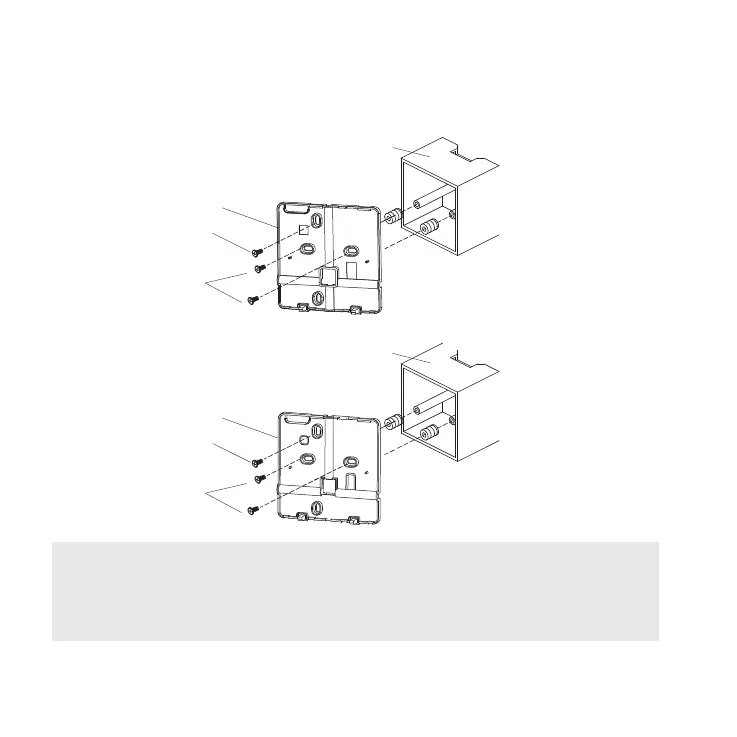

b. For flush mounting, fasten the back plate to the
switch box with 2 screws (M4×25), and fasten the
back plate to the wall with 1 screw (M4×20).
Fig. 10b
Fig. 10a
NOTE: Place the unit on a flat surface. Be careful not
to distort the back plate of the remote control by
over tightening the screws.
Switch box
Back plate
Screw (M4×20)
Screws (M4×25)
MODEL A
MODEL B
Switch box
Back plate
Screw (M4×20)
Screws (M4×25)
