Midea LSBLG MCF Series User Manual

Flooded type water cooled screw chiller (MIC) MCAC-CTSM-2018-1
16

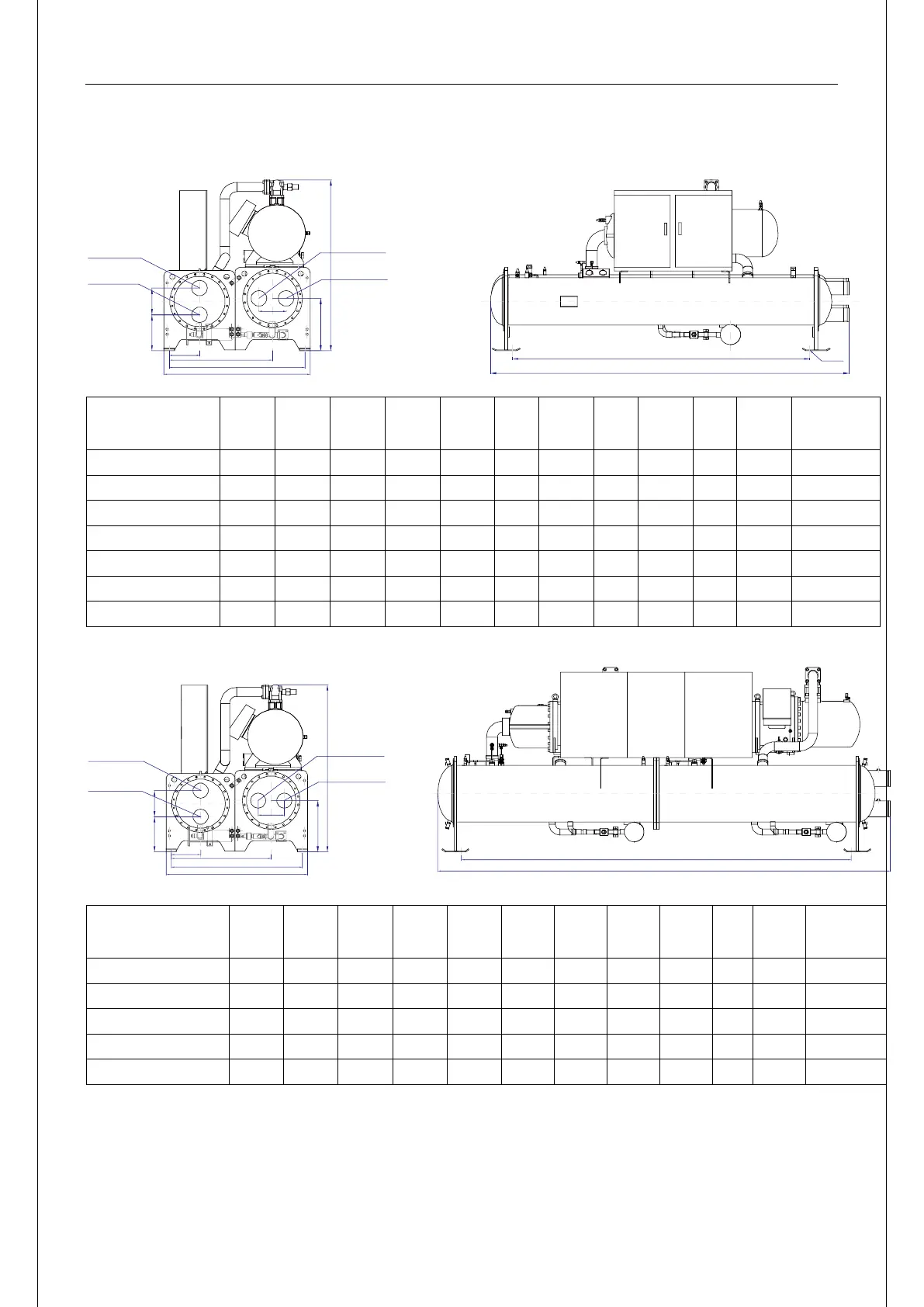

4. Outline dimension
Single head (LSBLG340~1055/MCF)
Unit: mm
Model
Ａ
Ｂ
Ｃ
Ｄ
Ｅ
Ｆ
Ｇ
Ｈ
J
K
L
Water
inlet/outlet
LSBLG340/MCF
3496
1200
1716
2850
1100
411
260
300
600
260
541
DN150
LSBLG440/MCF
3496
1200
1768
2850
1100
411
260
300
600
260
541
DN150
LSBLG540/MCF
3496
1200
1848
2850
1100
411
260
300
600
260
541
DN150
LSBLG720/MCF
3521
1400
1928
2850
1300
441
300
350
700
300
591
DN200
LSBLG805/MCF
3521
1400
2026
2850
1300
441
300
350
700
300
591
DN200
LSBLG890/MCF
3521
1400
2026
2850
1300
441
300
350
700
300
591
DN200
LSBLG1055/MCF
3588
1500
2250
2850
1400
443
350
375
750
375
618
DN200
Dual heads (LSBLG1200~1780/MCF)
Unit: mm
Model
Ａ
Ｂ
Ｃ
Ｄ
Ｅ
Ｆ
Ｇ
Ｈ
J
K
L
Water
inlet/outlet
LSBLG1200/MCF
4593
1500
2191
3850
1400
443
350
375
750
350
618
DN200
LSBLG1300/MCF
4593
1500
2241
3850
1400
443
350
375
750
350
618
DN200
LSBLG1410/MCF
4593
1500
2241
3850
1400
443
350
375
750
350
618
DN200
LSBLG1620/MCF
4611
1600
2343
3850
1500
468
350
400
800
350
643
DN200
LSBLG1780/MCF
4611
1600
2343
3850
1500
468
350
400
800
350
643
DN200
NOTE: Drawings are not contractually binding. Before designing an installation, consult the certified dimensional drawings
supplied with the unit or that are available on request.
For the positioning of the fixing points, weight distribution and center of gravity coordinates, refer to the dimensional
drawings.
Cooling
water inlet
Chilled
water inlet
Cooling
water outlet
Chilled
water outlet
B
E
J
K
H
F
L
C
G
Cooling
water inlet
Chilled
water inlet
Cooling
water outlet
Chilled
water outlet
B
E
J
K
H
F
L
C
G
A
D
A
D
