Midea LSBLG MCF Series

Flooded type water cooled screw chiller (MIC) MCAC-CTSM-2018-1
44
control range. When unit is in paused state, if temperature controlling is lower than compressor starting
temperature, compressor starts.
 Status information- operation query

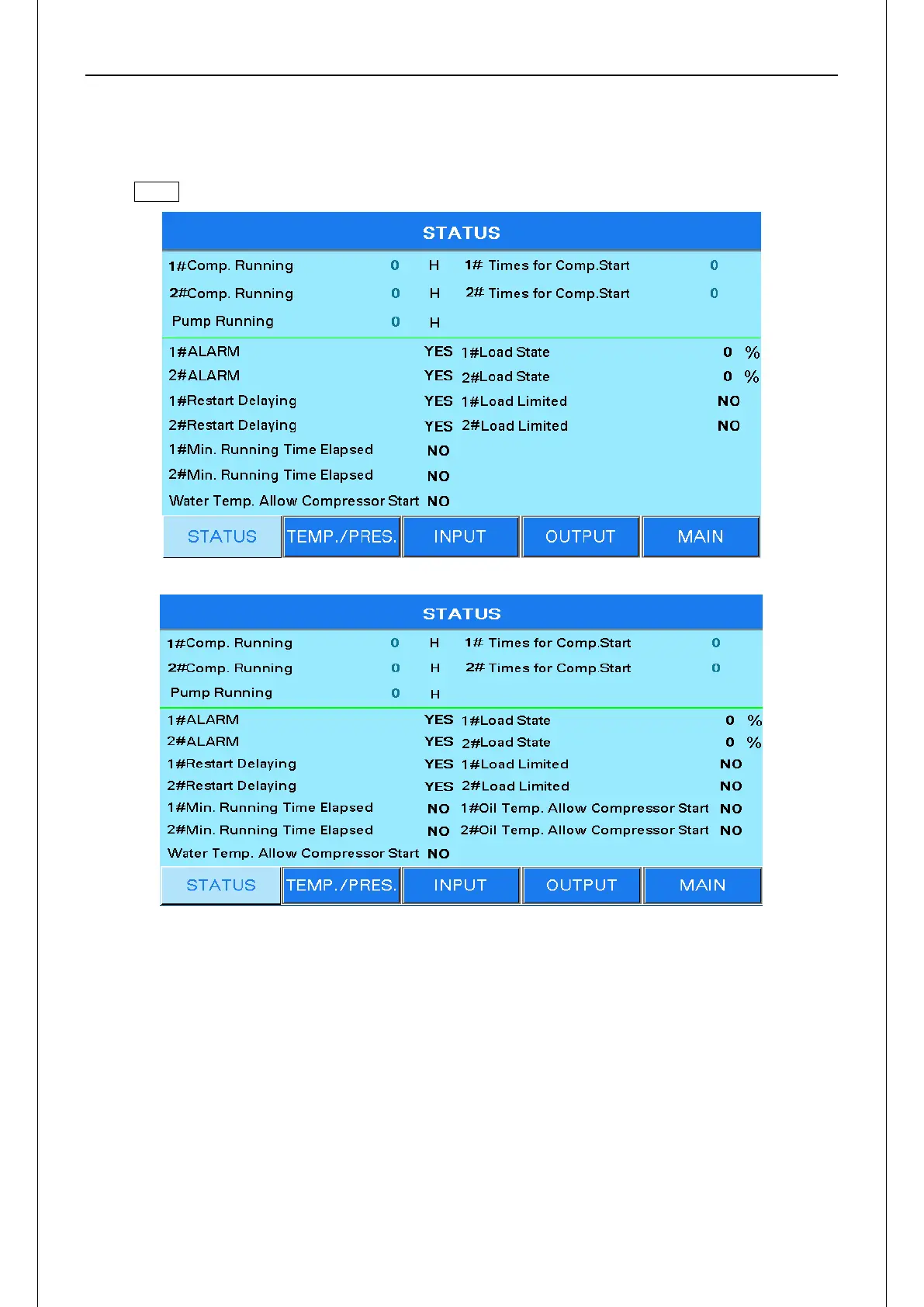

Press status in the figure 6.5 and enter figure 6.6.
Displaying the unit without oil temperature sensor
Displaying the unit with oil temperature sensor
Figure 6.6
Displaying contents of status information includes the following:
① Display refrigerant type;
② Display operating time of compressor and water pump;
③ Display times that compressor starts;
④ You can check which state the unit operates in（25%、50%、75%、100%）;
⑤ Display whether the unit has a set limit for maximum load;
⑥ Display whether the unit gives an alarm, and which unit head gives the alarm exactly;
⑦ Display whether the compressor oil heating is finished. If compressor starts, It needs to be satisfied
that oil heating time is ‘０’or oil temperature satisfies the compressor start is ‘YES’;
⑧ Display if the starting temperature is satisfied, when compressor starts, water temperature
conditions must be met and “compressor start” must be‘YES’;
⑨ Display if delay restart conditions are satisfy, when compressor starts, “delay restart” must be‘NO’;
