Midea LSBLG MCF Series

MCAC-CTSM-2018-1 Flooded type water cooled screw chiller (MIC)
59

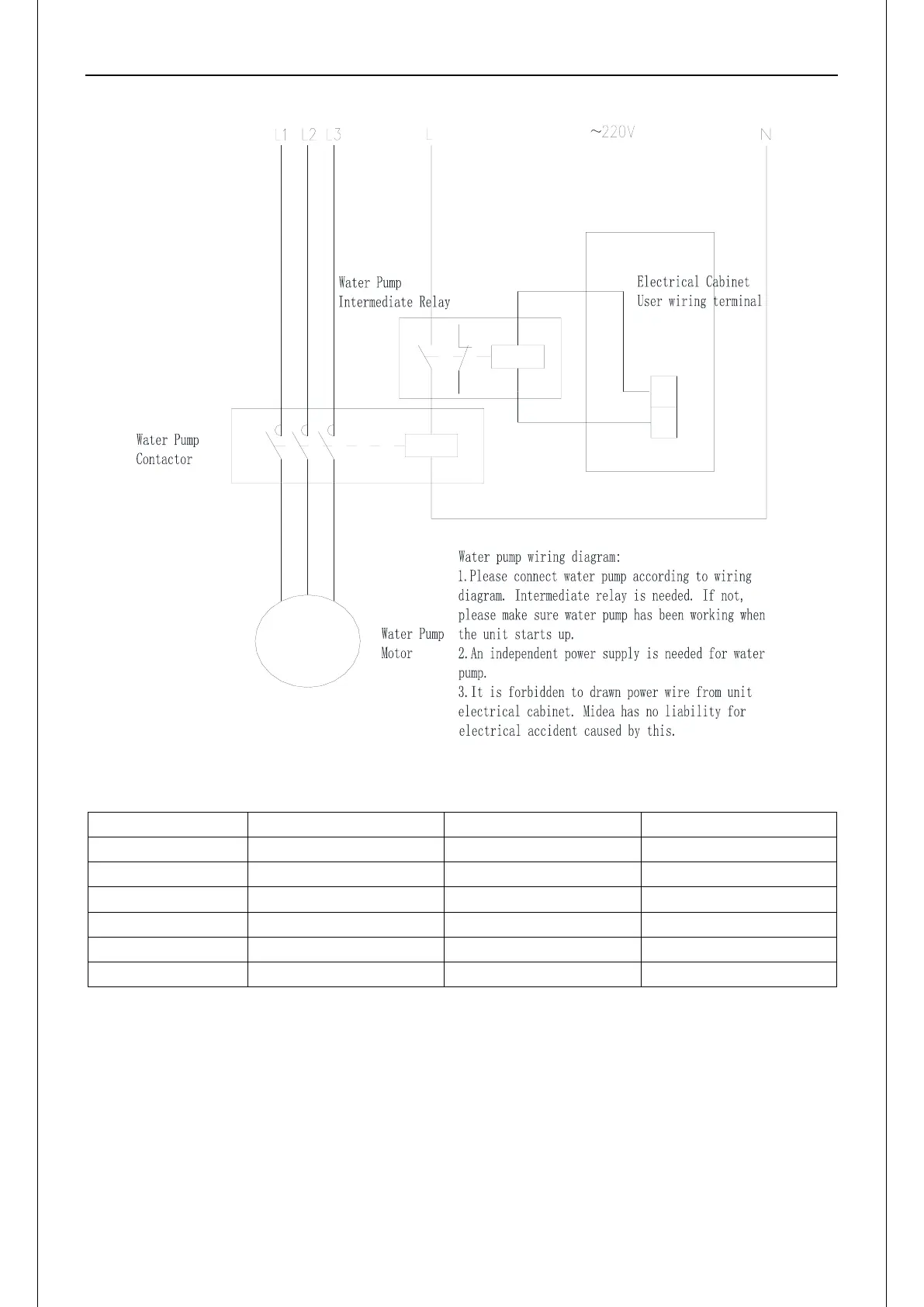

Water Pump Wiring Diagram
Recommended external wiring cable
Unit Model
External wiring cable (mm
2
)
Unit Model
External wiring cable (mm
2
)
LSBLG340/MCF
4×AWG1+AWG3
LSBLG1055/MCF
4×AWG400+AWG4/0
LSBLG440/MCF
4×AWG1/0+AWG3
LSBLG1200/MCF
4×AWG500+AWG250
LSBLG540/MCF
4×AWG3/0+AWG1
LSBLG1300/MCF
4×AWG500+AWG300
LSBLG720/MCF
4×AWG4/0+AWG1/0
LSBLG1410/MCF
4×AWG600+AWG300
LSBLG805/MCF
4×AWG300+AWG4/0
LSBLG1620/MCF
4×(2×AWG300)+AWG300
LSBLG890/MCF
4×AWG400+AWG4/0
LSBLG1780/MCF
4×(2×AWG400)+AWG500
Notice: The given wire length limits voltage drop to < 2%. If the length cannot be reduced, the power cord should be
bolder.
If the cable is installed in pipe or the ambient temperature is above 40℃, enlarge the wire section. Refer to relevant
electrical code according to the max. running current.
M
3～
