Installation & Owner's Manual
15
5.2 Time setting

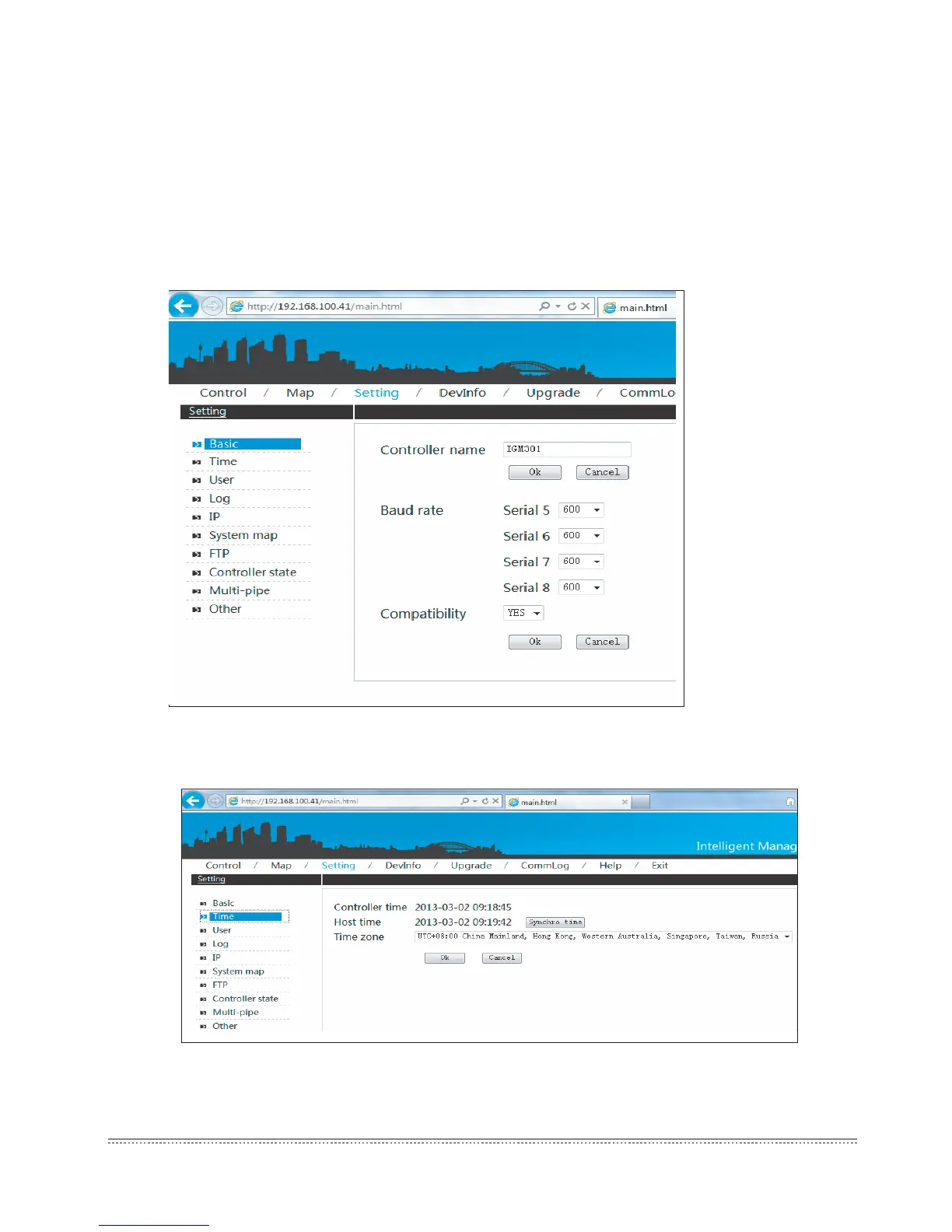

Fig.5-2
5. SETTINGS
Do the following settings before using the M-INTERFACE gateway. Only the administrator can
make the following operation.
5.1 M-INTERFACE setting
M-INTERFACE gateway setting as the following display, the setting of baud rate and the energy-
requiring compatibility please refer to IMM TECHNOLOGY MANUAL.
Fig.5-1
Offer M-INTERFACE gateway system time synchronization function, display as follow:
Select the time area, click the “OK” button, and then click the “Synchro time” button for
synchronization. Time synchronization function should be used with caution; details refer to IMM
TECHNOLOGY MANUAL.
