4.1 M-INTERFACE Network
1
)
M-INTERFACE gateway can connect the local area network or Internet network through LAN

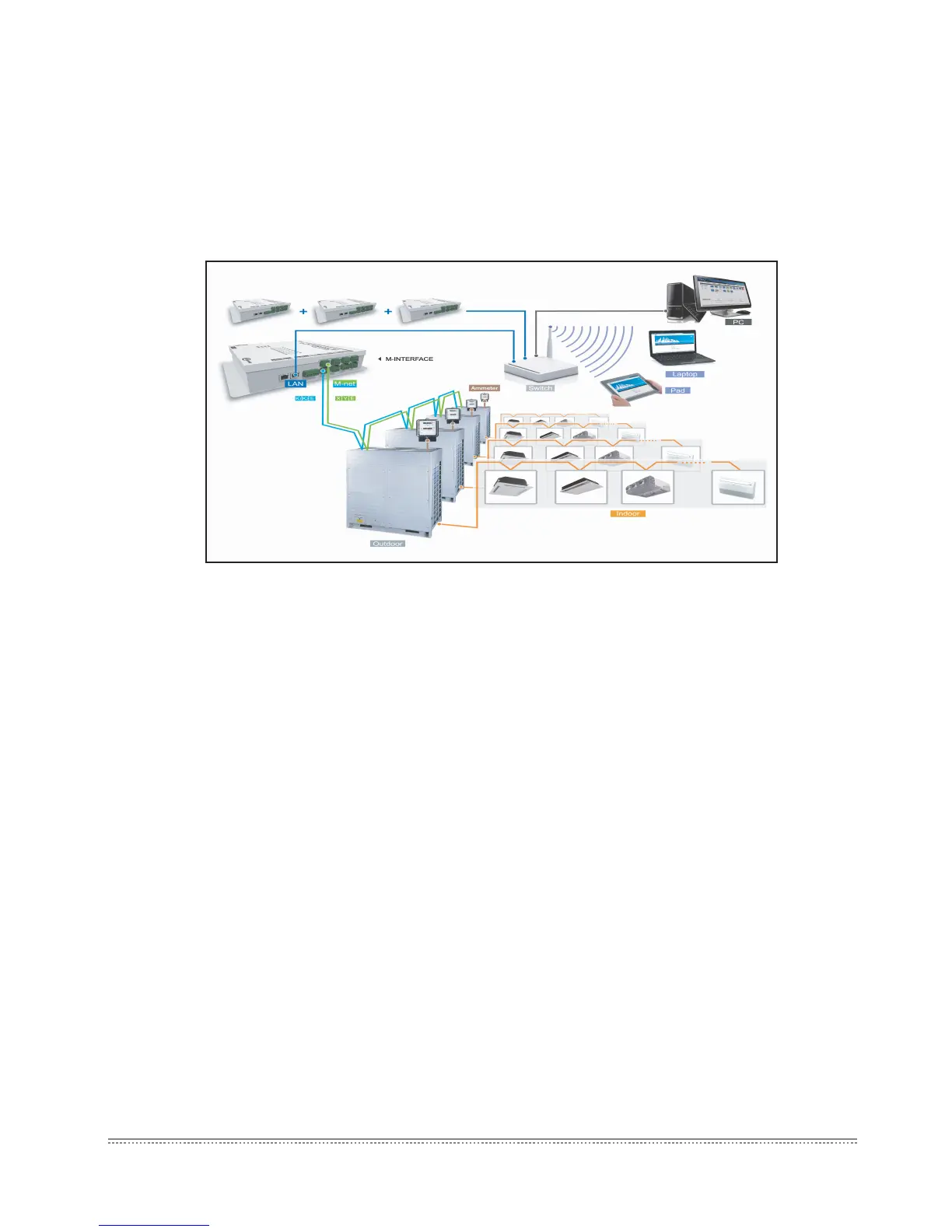

terminal. M-INTERFACE network topology as follows Fig 4-1.
2
)
M-net terminals are listed to be two rows, 1-4 are XYE terminals, 5-8 are K1K2E terminals.
Computer or other similar devices can visit M-INTERFACE WEB through browser, and then local
or remote control the devices.
4.2 Models which could be inserted
1
)
Can freely insert all VRF models.
2
)
If mini VRF will be connected to the project and need power consumption function, the outdoor unit
must be connected to an extra module.
3
）
Details refer to IMM TECHNOLOGY MANUAL.
4.3 Base on WEB technology
M-INTERFACE is a gateway based on WEB technology, unrelated to computer or similar devices
operation systems. M-INTERFACE insert into network then can browse the WEB page through the
browser of system platform, we suggest using IE (9.0 or above), Firefox (11.0 or above), Chrome (18.0
or above) or Safari (5.1 or above).
4.4 Local network connection
M-INTERFACE gateway can connect to the LAN network through switch. IP address of computer or
similar devices must in the same subnet area as the IP address of M-INTERFACE gateway.
Fig.4-1
To Next Page
