Midea M-INTERFACE - Ftp Setting

Installation & Owner's Manual
16

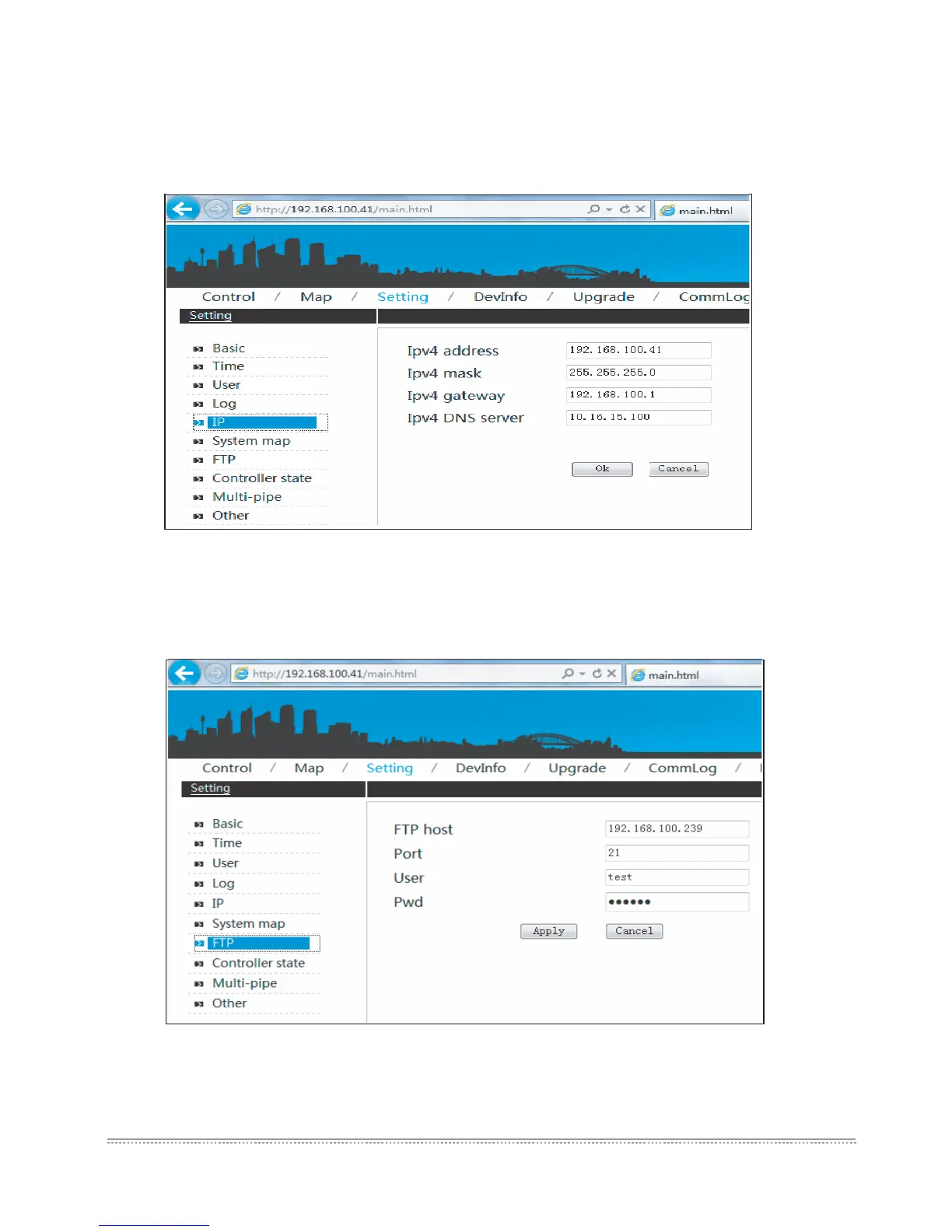

5.3 IP setting
If add the M-INTERFACE into local network, then it needs to reset the M-INTERFACE IP address,
and click “OK ” button after setting. If many M-INTERFACEs in the same network area, then the IP
address could not be repeated.
Fig.5-3
5.4 FTP setting
Set the IP address, terminal, login name (Default: test) and password (Default: 123456) of ftp server.
Click “apply” button after setting.
Fig.5-4
