Installation & Owner's Manual
10
4.4.1 IP conguration
Default IP of gateway is 192.168.100.40, subnet cover code is 255.255.255.0. IP address of comput-
er or similar devices should manual configure the statistic IP and within the range of 192.168.100,
subnet cover code should be 255.255.255.0. If the computer only insert the M-INTERFACE network,
then use the way of configuring single IP; if the computer also inserts the local network beside
M-INTERFACE network, then use the way of conguring several IP. Methods as follow (Take windows
7 system for example).
1
)
Congure single IP

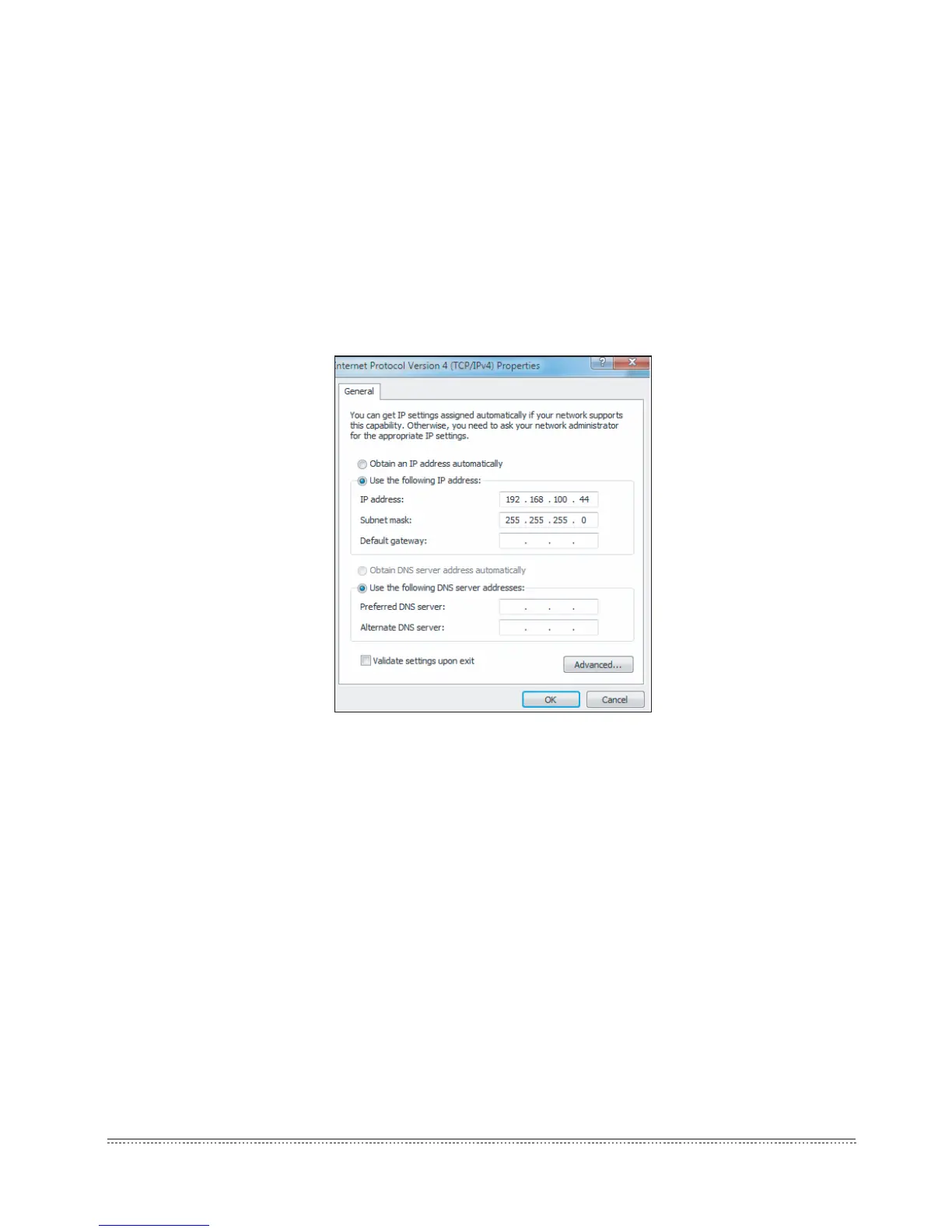

Open the property dialogue box to congure the IP address and subnet cover code, for example: IP:
192.168.100.44, subnet cover code: 255.255.255.0.
After conguration, click the “OK” button.
2
）
Congure several IP
Before congure several IP, it needs to congure a statistic IP address, conguring steps as follow:
■ Check the local IP
Open the property dialogue box, as Fig.4-2 display, if the option “Use the following IP
addresses(S)” has been selected, and the interface displayed IP address, that means the local
IP is statistic IP address. Otherwise it is a dynamic IP address, then it needs to configure a
statistic IP address.
■ Congure statistic IP address
Open the “Start” menu, and type “cmd” in the search column, and display the dialogue box as
follow:
Fig.4-2
To Next Page
