Installation & Owner's Manual
4
Fig.3-4
319±1
66.4±1

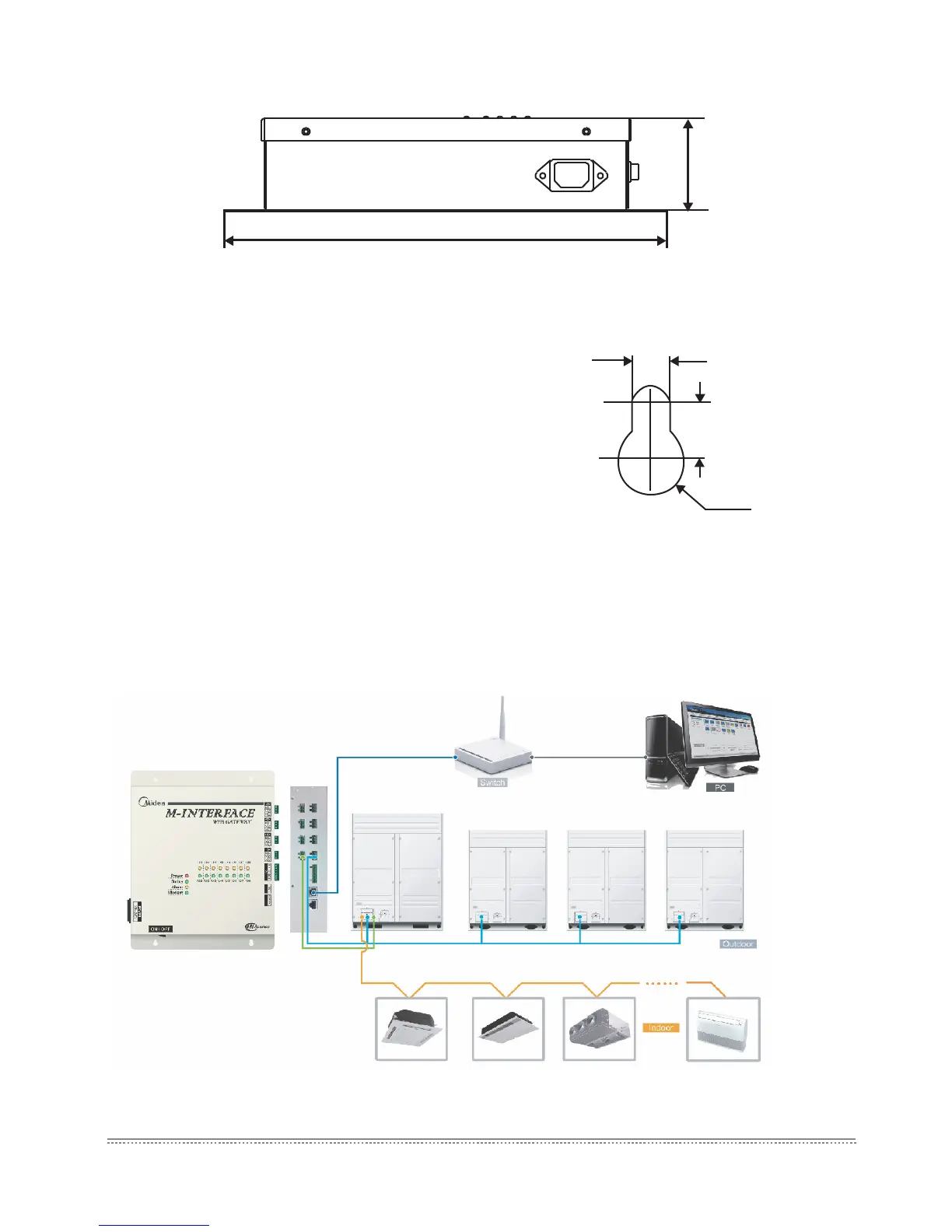

2) Side view of M-INTERFACE gateway controller (Unit: mm)
3) Detailed drawing of installation holes (Unit: mm)
Installation precautions:
■ Must be installed indoors, guarantee the gateway controller
installation must be higher than the ground 50 cm;
■ Install at a place where should not affect by electromagnetic
wave or dust;
■ Avoid to install at a place where affects by sunshine or heat
source device etc;
■ Avoid to install at a place where has high humidity or can
contact the water;
■ Avoid to install at a place where will produce corrosive or
ammable gas.
■ If suspension installed, make sure put the communication
terminal at the upper side.
Please install according to the above requirements, check
installation environment before installation.
3.2 System framework specication
Fig.3-2
Fig.3-3
4
5.5
R3.5
