1 Unit Capacities and External Appearance
1.1 Unit Capacities
Table 1-1.1: Capacity range
Capacity
4kW
6kW
8kW
10kW
12kW
14kW
16kW
Model
1
(MHC-*/D2N8
2
)
V4W
V6W
V8W
V10W
V12W
V14W
V16W
Capacity
12kW
14kW
16kW
Model
1
(MHC-*/D2RN8
2
)
V12W
V14W
V16W
Notes:
1. The full model names can be obtained by substituting the asterisk in the model name format given in the left-hand column of the table above
with the shortened model names given in the table. For example, the model name for the 8kW model is MHC-V8W/D2N8.
2. The presence or omission of the letter R in the model names indicates the unit’s power supply:
 R: 3-phase, 380-415V, 50Hz; Omitted: 1-phase, 220-240V, 50Hz.
1.2 External Appearance

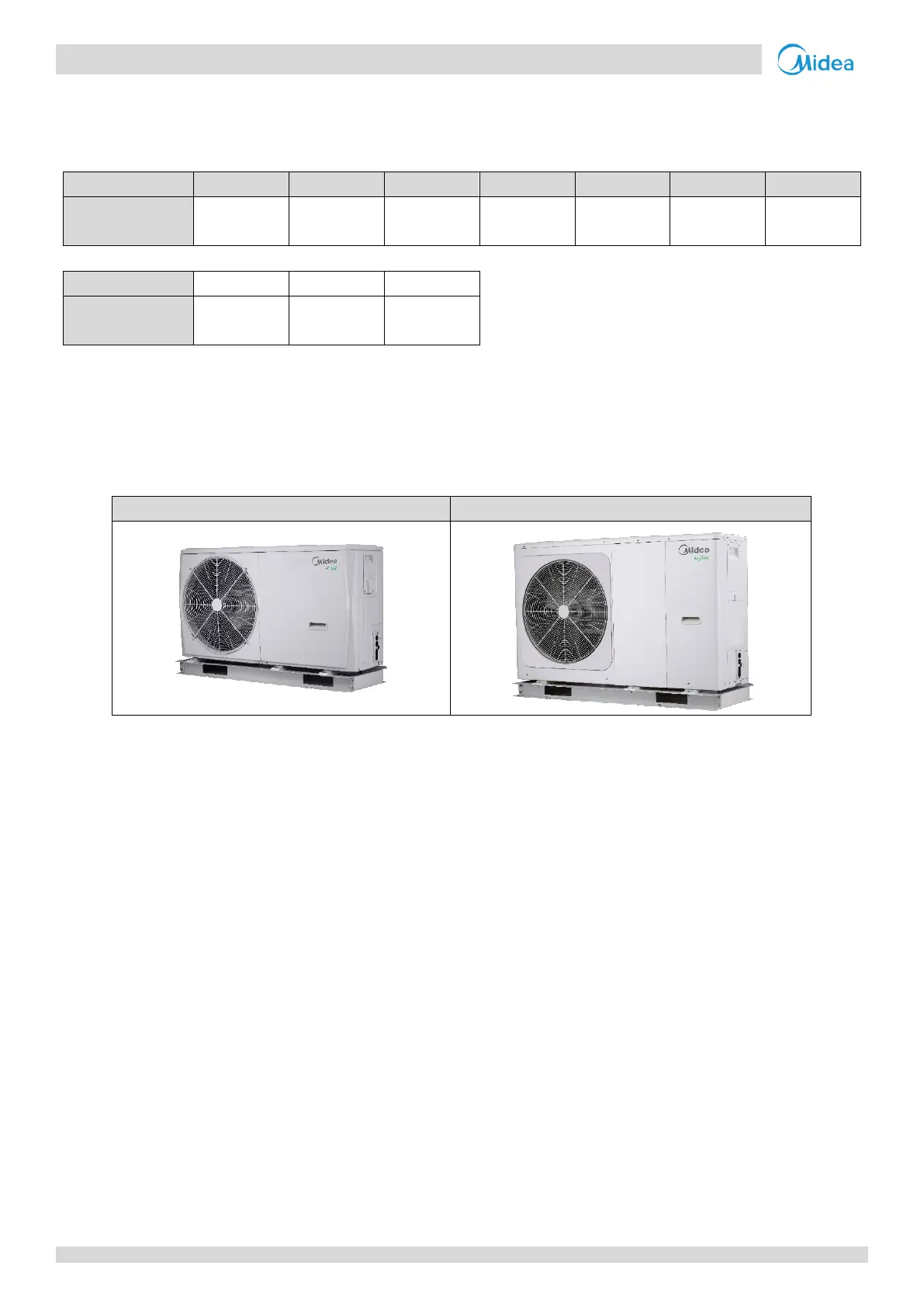

Table 1-1.2: Unit appearance
4/6kW
8/10/12/14/16kW
