M‐ThermalSplit
20190913
Part2‐ ComponentLayout andRefrigerantCircuits
3 RefrigerantFlowDiagrams
Heatinganddomestichotwateroperation

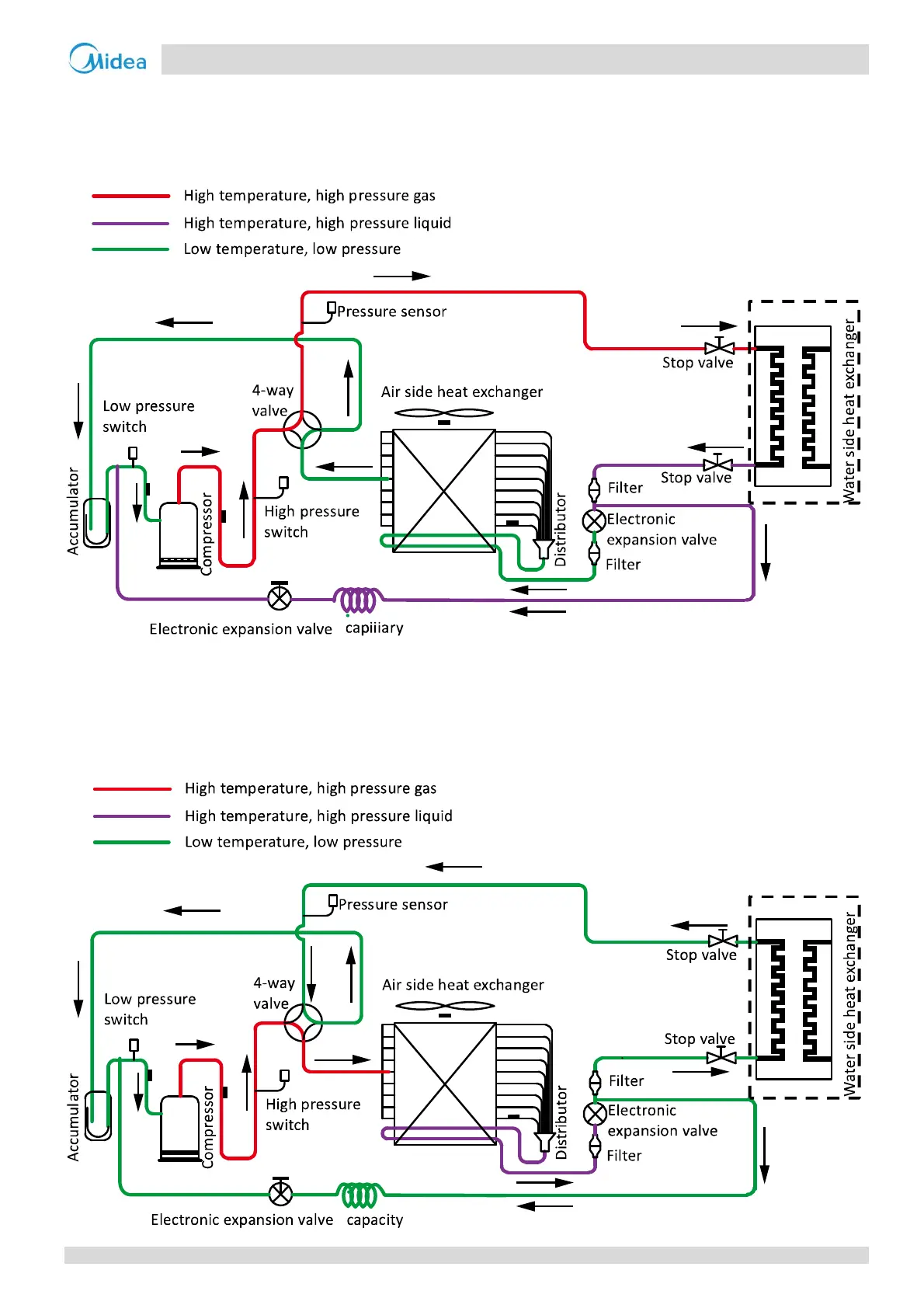

Figure2‐3.1:Refrigerantflowduringheatingordomestichotwateroperation

Coolinganddefrostingoperation
Figure2‐3.2:Refrigerantflowduringcoolinganddefrostingoperations
Hydronicbox
Hydronicbox
