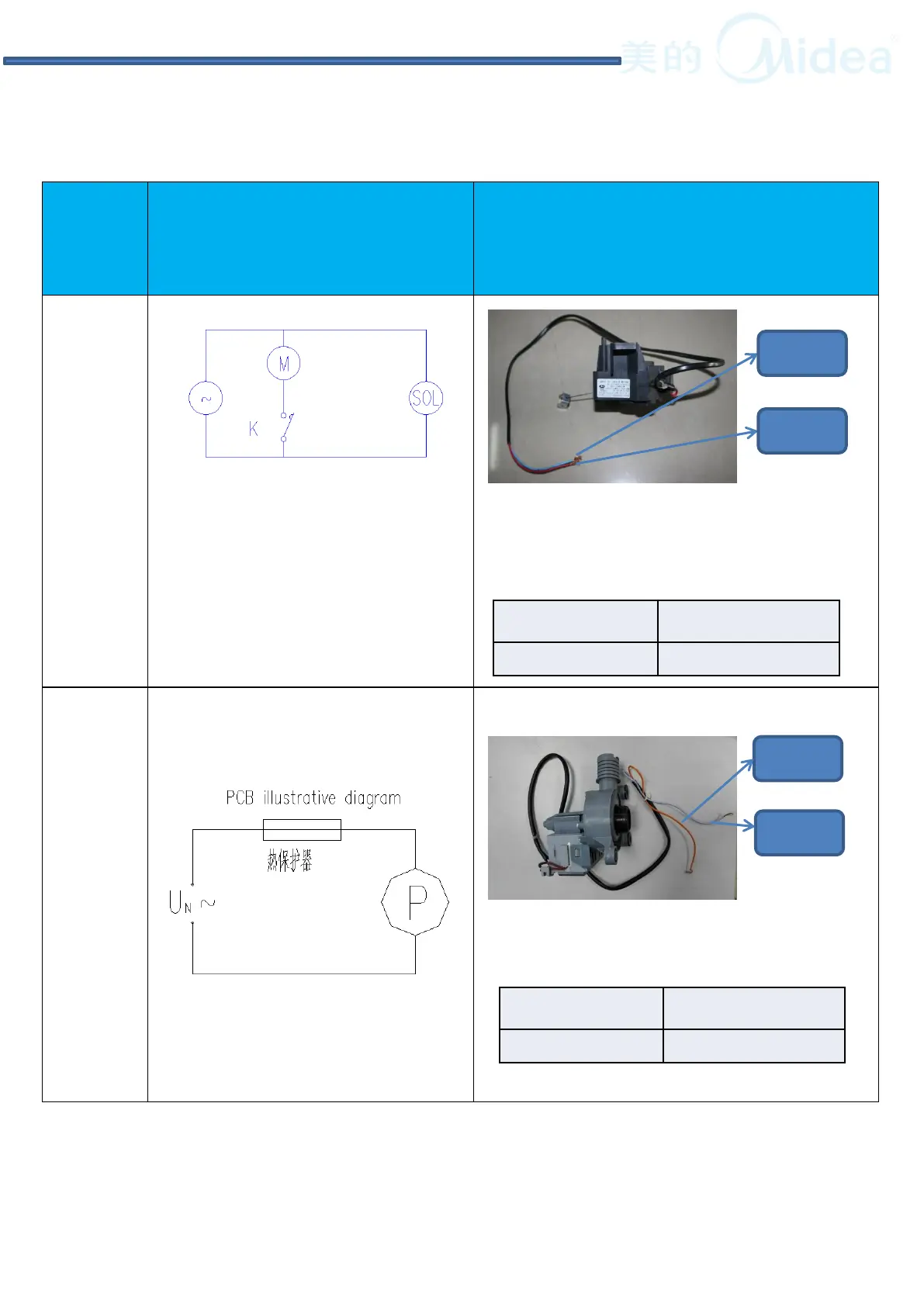

Part. Circuit Diagram/Principle Where, what & how to check?
Retractor
/Drain
motor
Retractor is consisted of motor
and traction system, it can
drive the drain valve to drain
water , and at the same time
control the clutch to achieve
the conversion from washing
to spinning operation .
Check resistance of the drain
motor
Drain
pump
Check resistance between terminals
Light
Blue
Red
Red
Light
blue
Test point
Normal value
Red
-Light blue
0.8
—2KΩ
Test point
Normal value
Red
-Light blue
15
-30Ω
