Midea MAP05R1AWWT-T - Window Slider and Adaptor Connection; Connecting Adaptors and Preparing Sliders

20

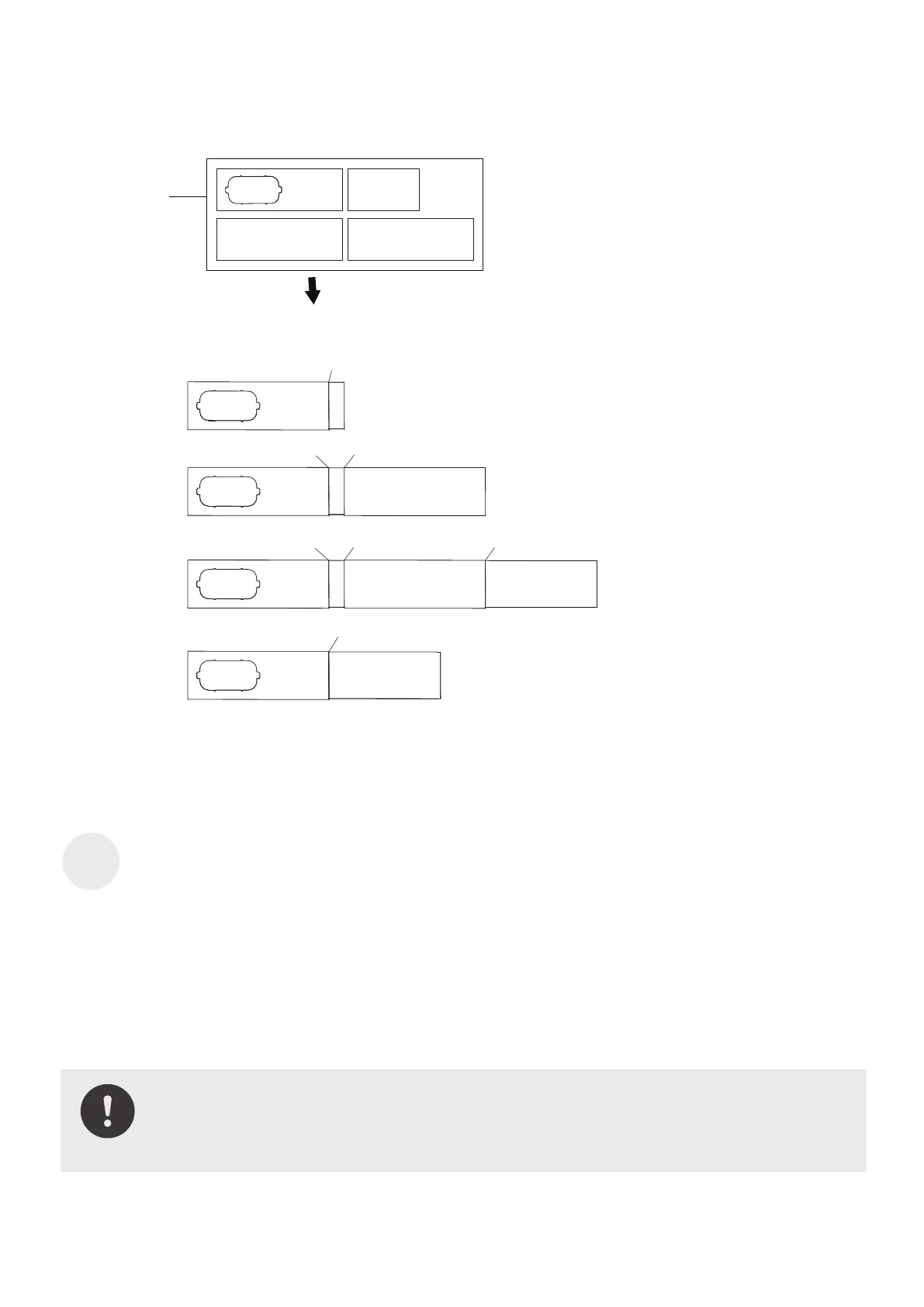

Connect the adaptor to the unit and the window
1+2：
Bolt
1+2+3：
Bolt
Bolt
1+2+3+4：
Bolt
BoltBolt
1+4：
Bolt
Window
Sliders
After assembly
Before assembly
2
NOTE: Please base your window slider installation on the accessories in your
kit and the width of your window.
Preparing the Adjustable Window Slider
Choose the window sliders according the size of your window. Sometimes, it needs
to be cut short to meet the window size, please take extra care to cut it properly.
Use bolts to fasten the window sliders once they are adjusted to the Proper length.
