Installation
Instructions
Step O
ne: Preparing the exhaust hose
assembly

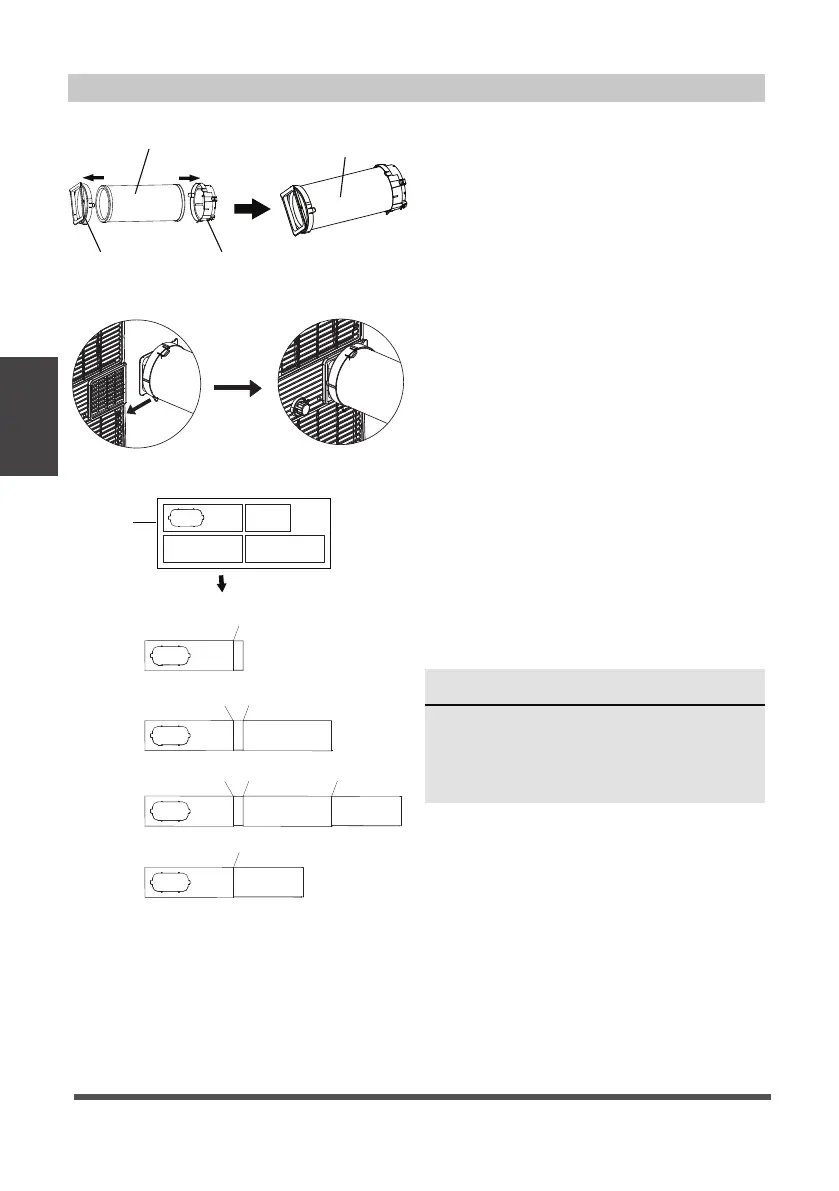

Press the exhaust hose into the window
slider adaptor and unit adaptor, clamp
automatically by elastic buckles of the
adaptors.
Step Two: Install the exhaust hose
assembly to the unit
Push the Exhaust hose into the air
outlet opening of the unit along the
arrow direction.
Step Three: Preparing the adjustable
window slider
1. Depending on the size of your window,
you may need to adjust the size of the
window slider.
2. I
f the length of the window requires
two window sliders, use the bolt to
fasten the window sliders once they
are adjusted to the proper length.
Window Installation Kit
Unit
adaptor
Window slider
adaptor
Exhaust hose Exhaust hose
assembly
NOTE
Once the Exhaust Hose assembly and
Adjustable Window Slider are prepared,
choose from one of the following two
installation methods.
1+2：
Bolt
1+2+3：
Bolt
Bolt
1+2+3+4：
Bolt
BoltBolt
1+4：
Bolt
Window Sliders
After assembly
Before assembly
Page 12
To Next Page
