Fig. 6
Fig. 5
Check that air conditioner is tilted back per
dimension H (Fig. 5) (tilted about 3° to 4°
downward to the outside). After proper
installation, condensate should not drain
from the overfl ow drain hole during normal
use. Adjust the slope if otherwise.
NOTE

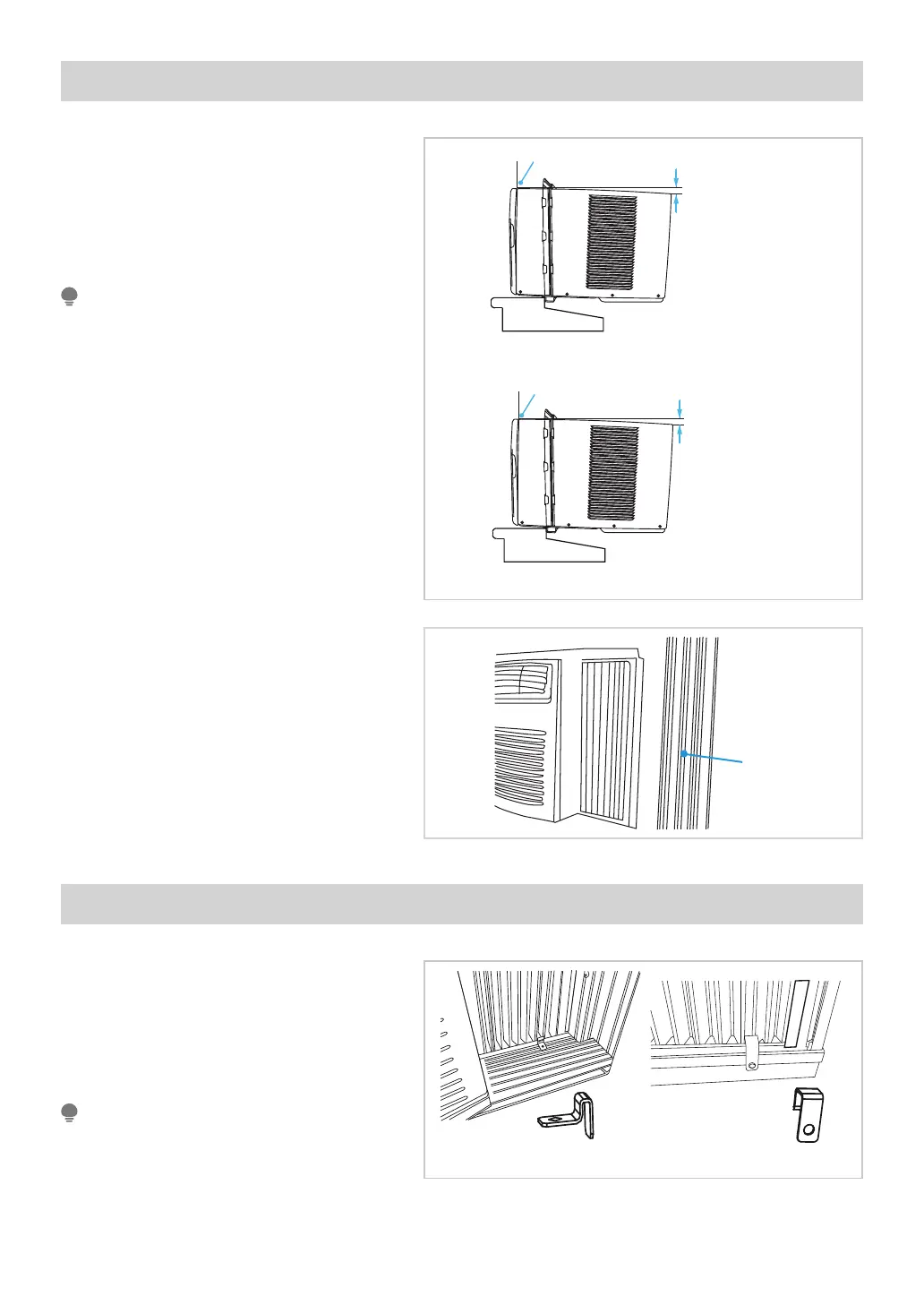

4. Install Air Conditioner
A. Keep a fi rm grip on the air conditioner,
carefully place the unit into the window
opening so the bottom of the air
conditioner frame is against the window
sill (Fig. 5). Carefully close the window
behind the top rail of the unit.
B. Extend the side panels out against the
window frame (Fig. 6).
Wooden Windows
INSIDE
OUTSIDE
H:About 3/4” to 1”
(for 5K to 8K)
Measure from the cabinet edge
3
H:About 1” to 1
/
(for 10K)
8”
H
Vinyl-Clad Windows
INSIDE
OUTSIDE
H:About 3/4” to 1”
(for 5K to 8K)
Measure from the cabinet edge
3
H:About 1” to 1
/
(for 10K)
8”
H
5. Secure Air Conditioner
Fig. 7A Fig. 7B
To prevent window sill from splitting, drill 1/8”
(3 mm) pilot holes before driving screws.
NOTE
A. Place the frame lock between the frame
extensions and the window sill as shown
(Fig. 7A for Wooden windows), (Fig. 7B
for Vinyl-Clad windows). Drive 3/4” (19
mm) or 1/2” (12.7 mm) locking screws
through the frame lock and into the sill.
Window
frame
Window
frame
