Midea MAW - Securing Methods for Windows

12

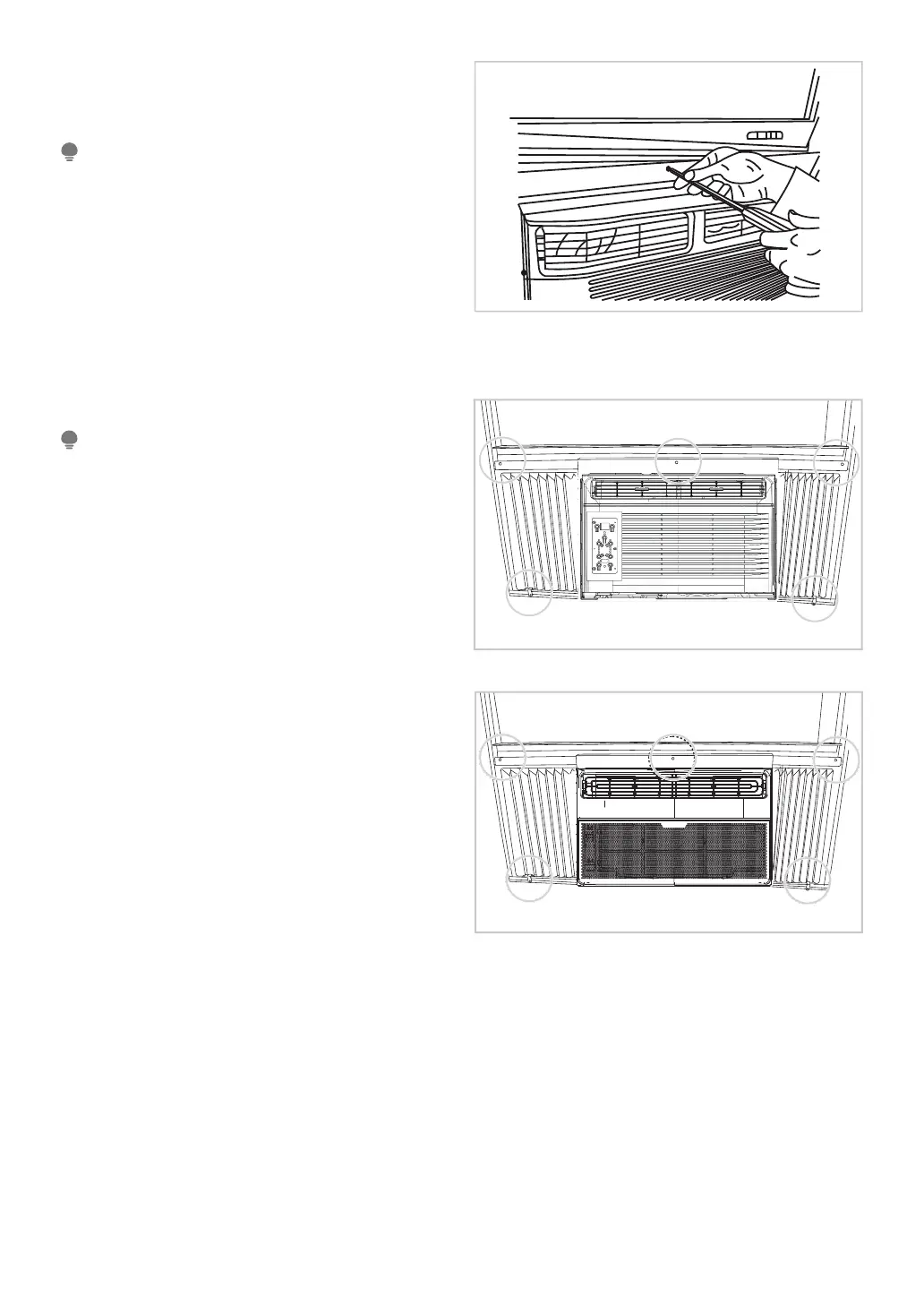

Fig. 8A
B1: For wooden windows:
Drive 1/2” (12.7 mm) locking screws through the
top rail and into the window sash (Fig. 8A).
To prevent window sill from splitting, drill 1/8” (3mm)
pilot holes before driving screws. Drive 1/2” (12.7mm)
locking screws through frame holes into window sash
(Fig. 8B/8C).
NOTE
Before driving the screws, drill 5 holes into the
window through the holes of the top rail and side
panel frames as shown (Fig. 8B/8C).
NOTE
B2: For Vinyl-Clad windows:
Drive 1/2” (12.7 mm) locking screws through the
top rail and into the window sash (Fig. 8B/8C).
MAW08/12 Models
Fi
g
.8
Fig. 8D
MAW05/06 Models
Fig. 8C
