Midea MC-IF7222CCD User Manual

L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
F(mm)
590
520
60
56
560+4
+1
490+4
+1
50 mini
3 mini

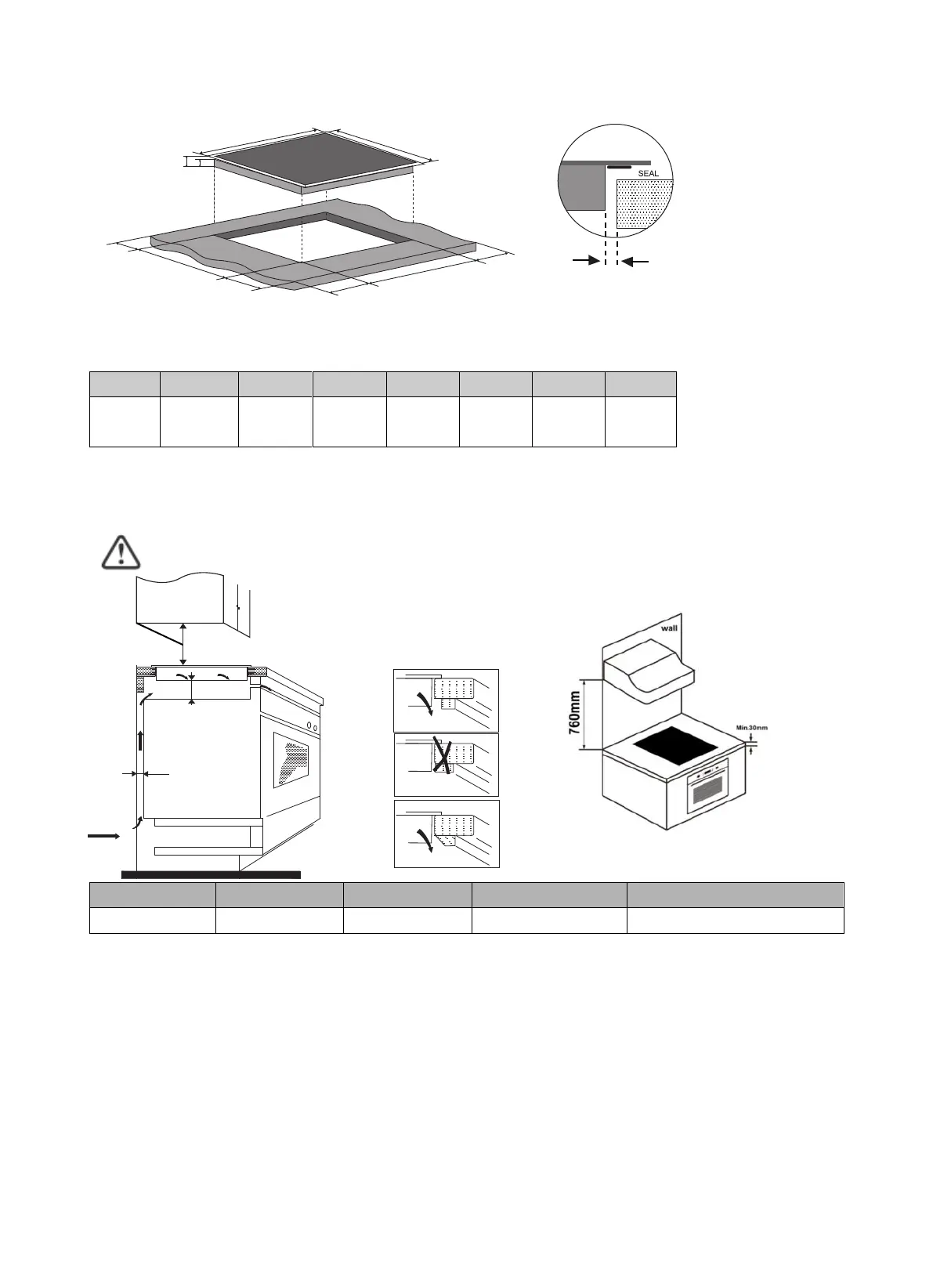

Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and
outlet are not blocked. Ensure the induction cooker hob is in good work state. As shown below
Note: The safety distance between the hotplate and the cupboard above the hotplate should be at
least 760 mm.
WARNING: Ensuring Adequate Ventilation
Make sure the induction cooker hob is well ventilated and that air inlet and outlet are not blocked. In
order to avoid accidental touch with the overheating bottom of the hob, or getting unexpectable
electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum
distance of 50mm from the bottom of the hob. Follow the requirements below.
A(mm)
B(mm)
C(mm)
D
E
760
50 mini
20 mini
Air intake
Air exit 5mm
A
B
E
C
D
A
X
X
X
B
L
H
D
W
X
Mini.3mm
F
22

Midea MC-IF7222CCD Specifications

General

Brand	Midea
Model	MC-IF7222CCD
Category	Hob
Language	English
