Midea MC-SU60-RN1L

Aqua Tempo Super II Series DC Inverter Air-cooled chiller unit (50Hz) MCAC-ATSM-201704
25
No. Part Name Qty No. Part Name Qty

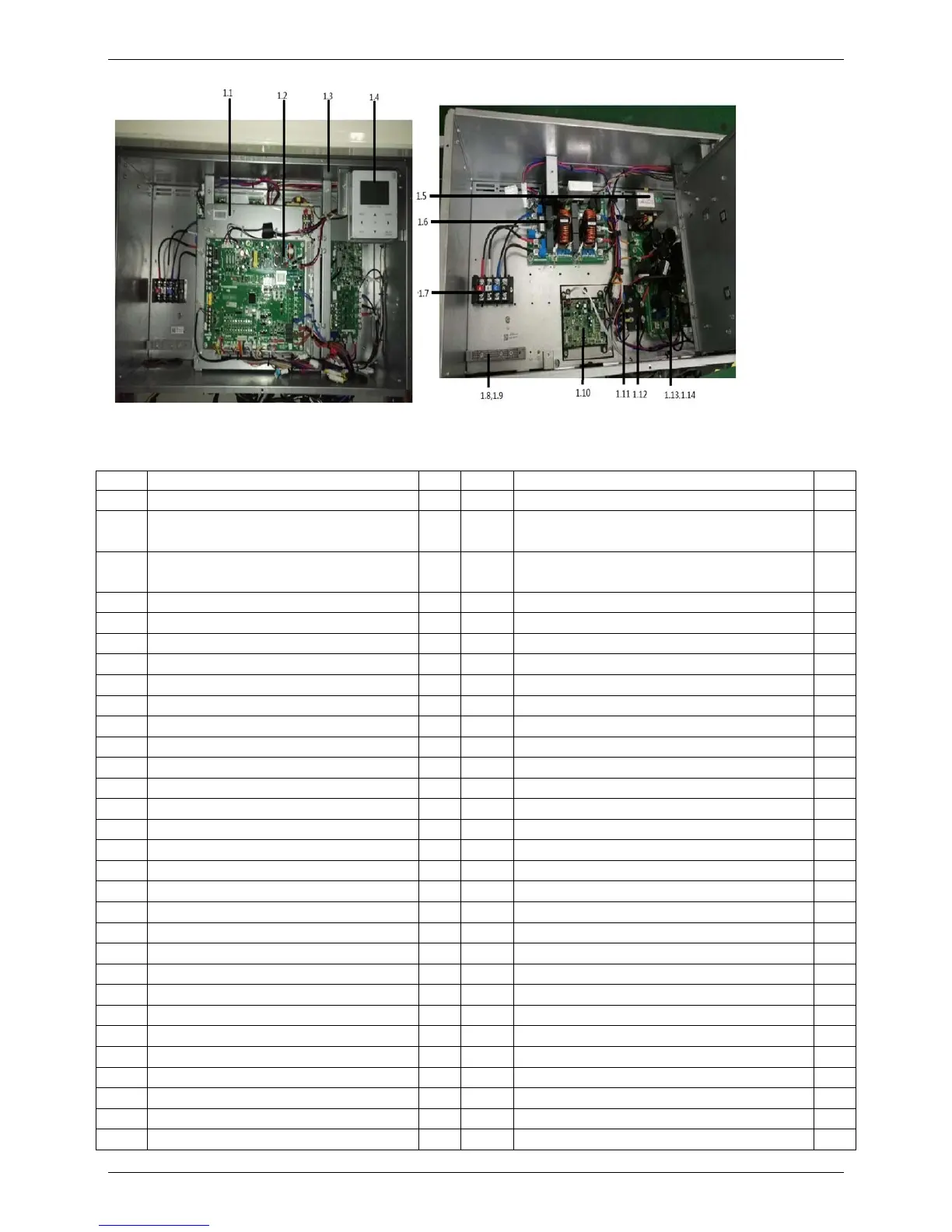

1 Electric control box assembly 1.0 13.1 Pressure sensor 1.0
1.1
Electric installation board
assembly 1.0 13.2 Four-way valve ass’y 1.0
1.2
Tie-in assembly of Outdoor Main
Control Board 1.0 14 Accessory-Connection pipe assembly 1.0
1.3 E-part box assembly 1.0 15 throttle ass'y 1.0
1.4 Wired controller 1.0 15.1 Electionic expansion valve 1.0
1.5 Reactance 1.0 16 Drainage pan 1.0
1.6 Filter board assembly 1.0 17 Oil separator 1.0
1.7 Wire joint, 4P 1.0 18 Coaming assembly 1.0
1.8 Clamp for wiring 1.0 19 Column 1.0
1.9 Clamp for wiring 1.0 20 DC Inverter Rotary Compressor 1.0
1.10 Module board assembly 1.0 21 Gas-liquid separator 1.0
1.11 Current detection board ass'y 1.0 22 Base assembly 1.0
1.12 Bridge Rectifier 1.0 23 Coaming assembly 1.0
1.13 Module board assembly 1.0 24 B unit condenser assembly 1.0
1.14 Radiator 1.0 25 Pipe temperature sensor assemblies 2.0
2 Wind nets 1.0 26 Temperature sensor 1.0
3 Top cover assembly 1.0 27 Discharge Temp. sensor ass'y 2.0
4 Column 3.0 28 Room Temperature Sensor 1.0
5 Coaming assembly 1.0 29 Pipe Temperature Sensor 4.0
6 Condenser assembly 1.0 30 Pipe Temperature Sensor 1.0
6.1 Bracket assembly 1.0 31 Pipe Temperature Sensor 1.0
6.2 Top frame 1.0 32 Fixing board assembly 1.0
6.3 Axial fan 1.0 33 Partition board assembly 1.0
6.4 Brushless DC Motor 1.0 34 Water Outlet pipe assembly 1.0
7 B unit condenser assembly 1.0 35 Heat-exchanger assembly 1.0
8 Exhaust valve 1.0 36 Holder ring 2.0
9 Vertical beam 1.0 37 Drainage plug assembly 1.0
10 E-part box door 1.0 38 Flow Switch 1.0
11 D unit suction pipe assembly 1.0 39 Water Inlet pipe assembly 1.0
11.1 throttle assembly 1.0 40 Safety valve 1.0
