DM17-01.01.08en Light Commercial R410A on-off
146
Change the fan motor static pressure
corresponding to external duct static pressure.
NOTE: 1.Do not put the connecting duct weight on the indoor unit.
2.When connecting duct, use inflammable canvas tie-in to prevent vibrating.
3.Insulation foam should be wrapped outside the duct to avoid condensate and internal duct underlayer shall
be added to reduce the noise for special requirement.

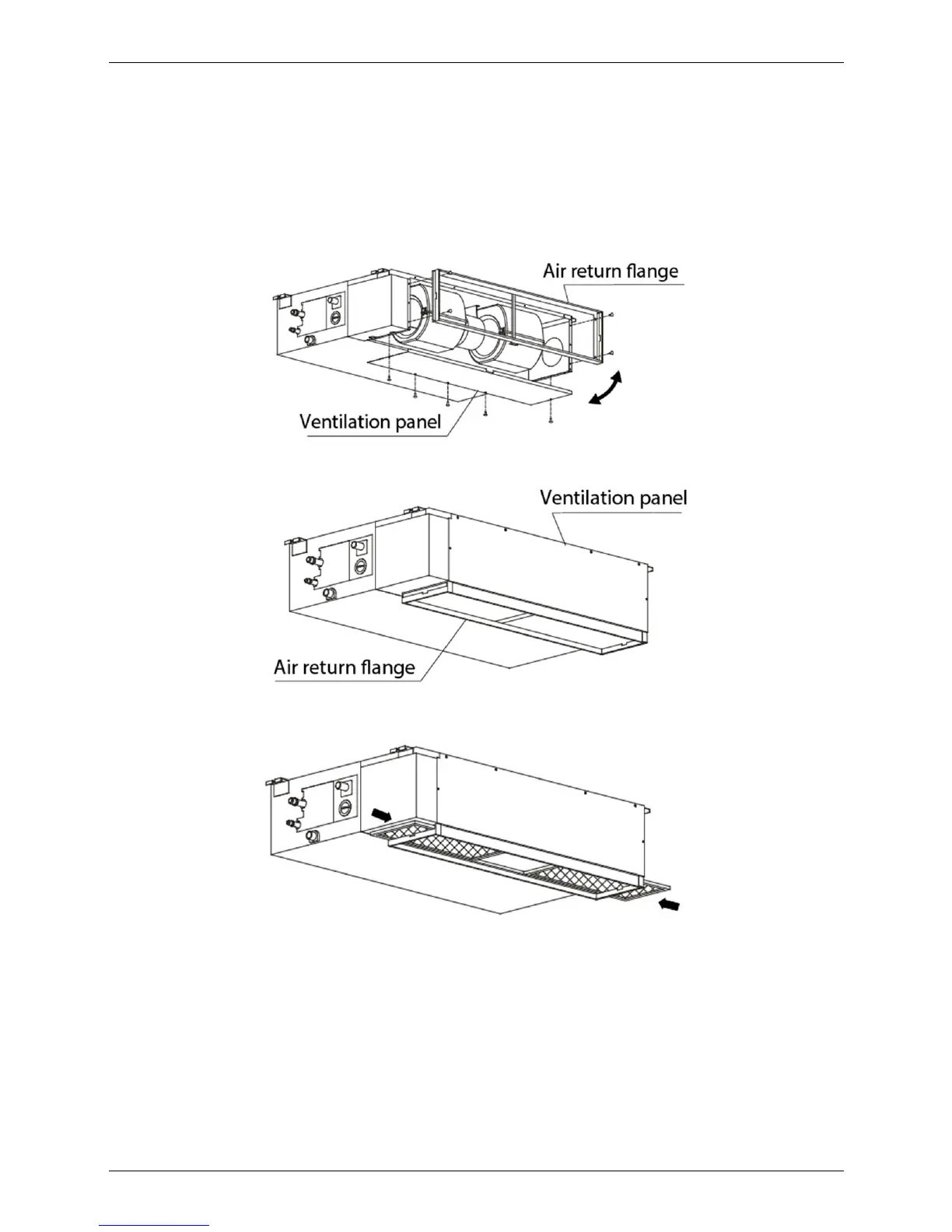

3.4.7 Adjust the air inlet direction(From rear side to under-side.)
① Take off ventilation panel and flange,
② Change the mounting positions of ventilation panel and air return flange .
③ When install the filter mesh, please plug it into flange as shown in figure below.
NOTE: All the figures in this manual are for explanation purpose only. They may be slightly different from the
air conditioner you purchased.
The actual unit shall prevail.
