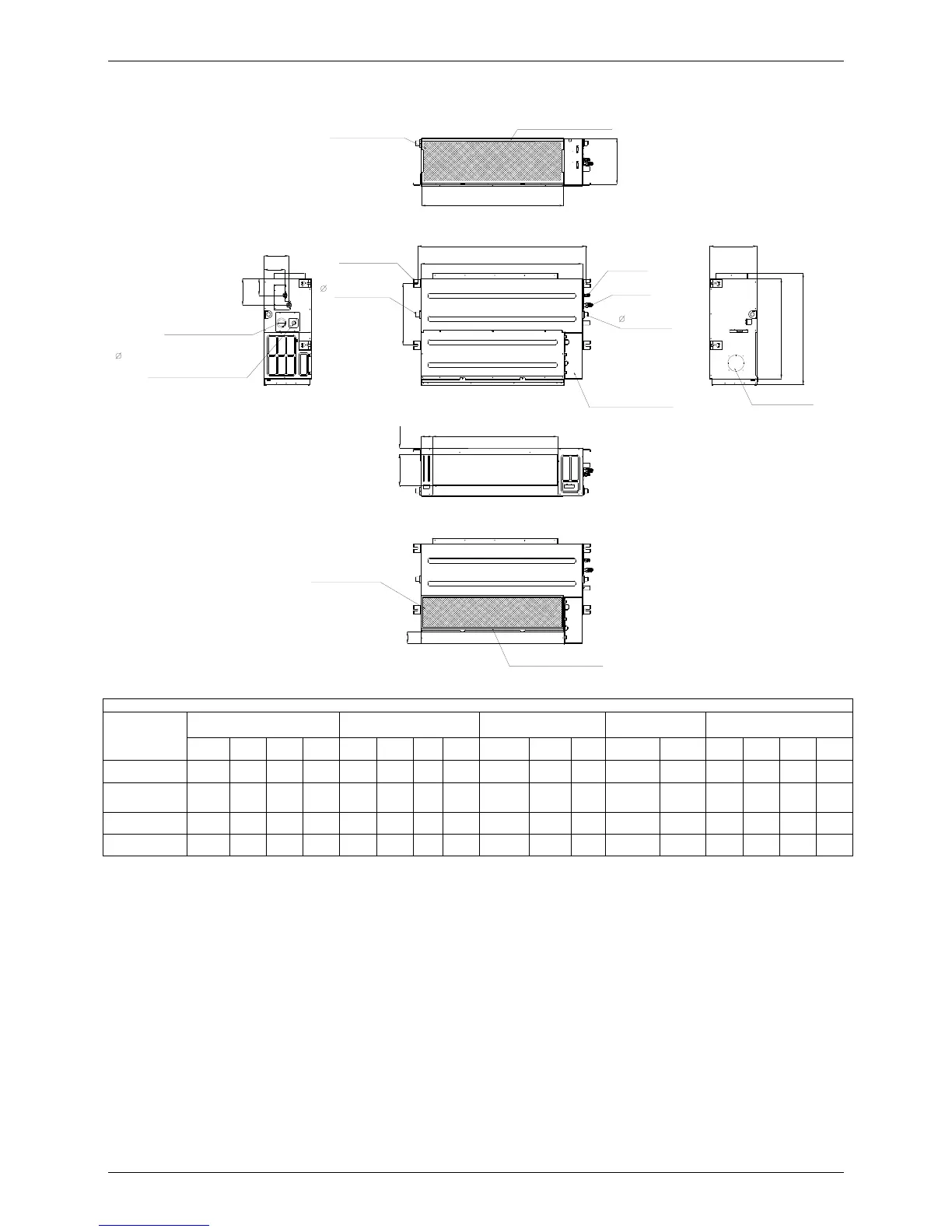

3. Dimensions
A
C
B
D
J
I
K
Air filter ( optional )
air inlet from rear side
air inlet from bottom side
FE
G
H
Electric control box
Air filter ( optional )
L
4-install hanger
Gas side
Liquid side
M
W1
W2
H1
H2
25 Drain connecting pipe
( for pump )
Test mouth & Test cover
Fresh air intake
25 Drain pipe
25 Drain pipe
Note: standard product without filter Unit: mm
Model(Btu/h)
Outline dimension(mm) Air outlet opening size Air return opening size
Size of install
hanger
Size of refrigerant pipe
A B C D E F G H I J K L M H1 H2 W1 W2
18K 920 210 635 570 65 713 35 119 815 200 80 960 350 120 143 95 150
24K 920 270 635 570 65 713 35 179 815 260 20 960 350 120 143 95 150
36K 1100 249 774 700 140 926 50 175 1001 228 5 1140 598 80 150 130 155
48K/60K 1200 300 865 800 80 968 40 204 1094 288 45 1240 500 175 198 155 210
