3.7 Floor standing indoor unit installation

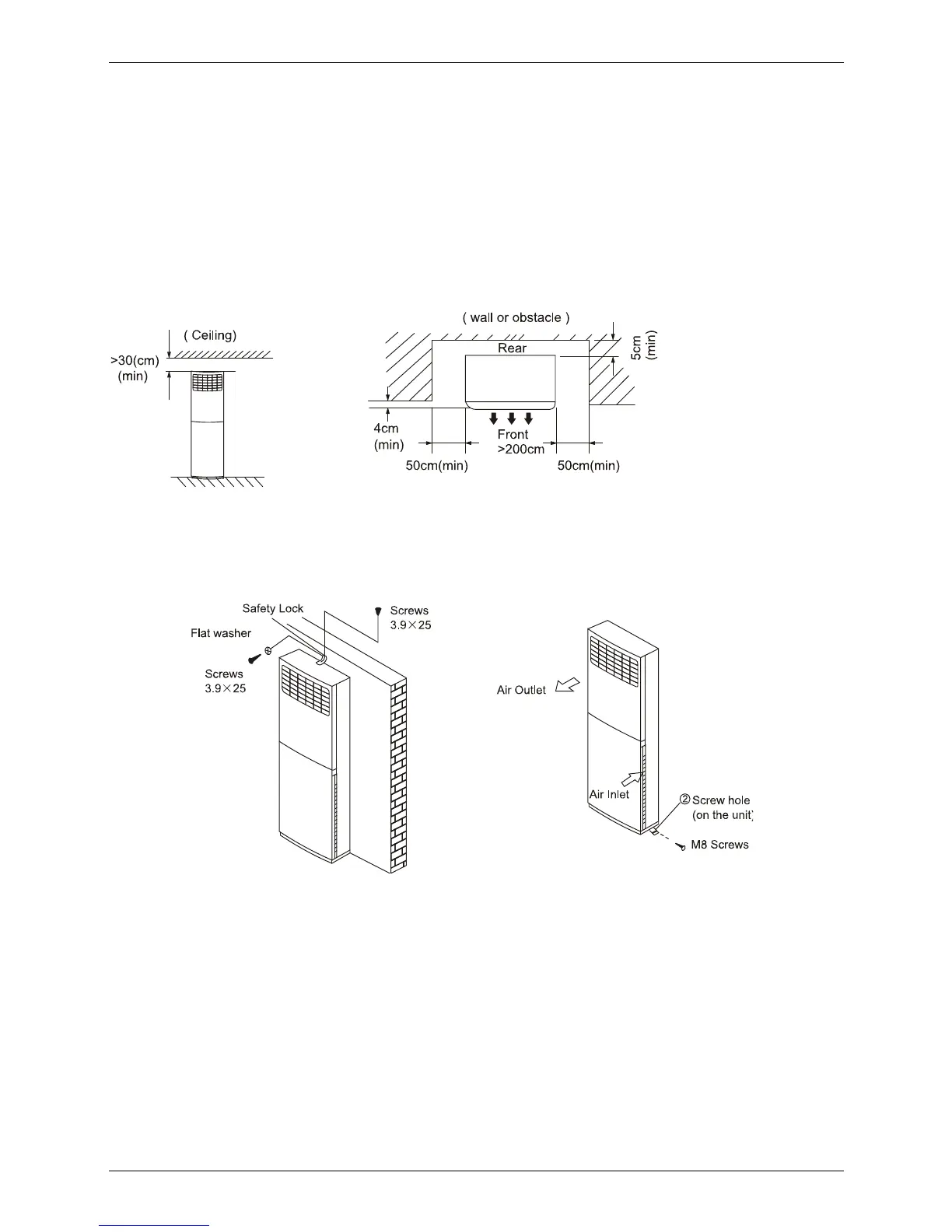

3.7.1 Service space for indoor unit
a. A place which provides the spaces around the indoor unit as required above in the diagram.
b.
A place where is no obstacle near the inlet and outlet area.
c.
A place which can bear the weight of the indoor unit.
d.
A place which allows the air filter to be removed downward.
e.
A place where the reception range is not exposed to direct sunlight.
f.
In the center of the room where possible.
3.8.1.1 Please stand the unit in hard and flat ground;
Please reserve space for installation and maintenance.
3.7.2 Installing
3.7.2.1. Anti-falling;
To prevent the indoor unit from falling, you must:
a. Pay full attention to the unit because its long outer shape makes it easy to fall;
b. Firmly fix the unit to the wall or in the ground to avoid accidental falling.
3.7.2.2.
Dismounting the air-inlet grid
Please take off the air-inlet grid before connecting the pipes/wires.
The grid is hitched by a loop inside. To dismount the air-inlet grid, hold both sides of the grid and pull it up, let
it slant downwards until the loop become straight. Then removing the screws fastened the loop with the grid,
and the grid goes free.
