DM17-01.01.08en Light Commercial R410A on-off
70

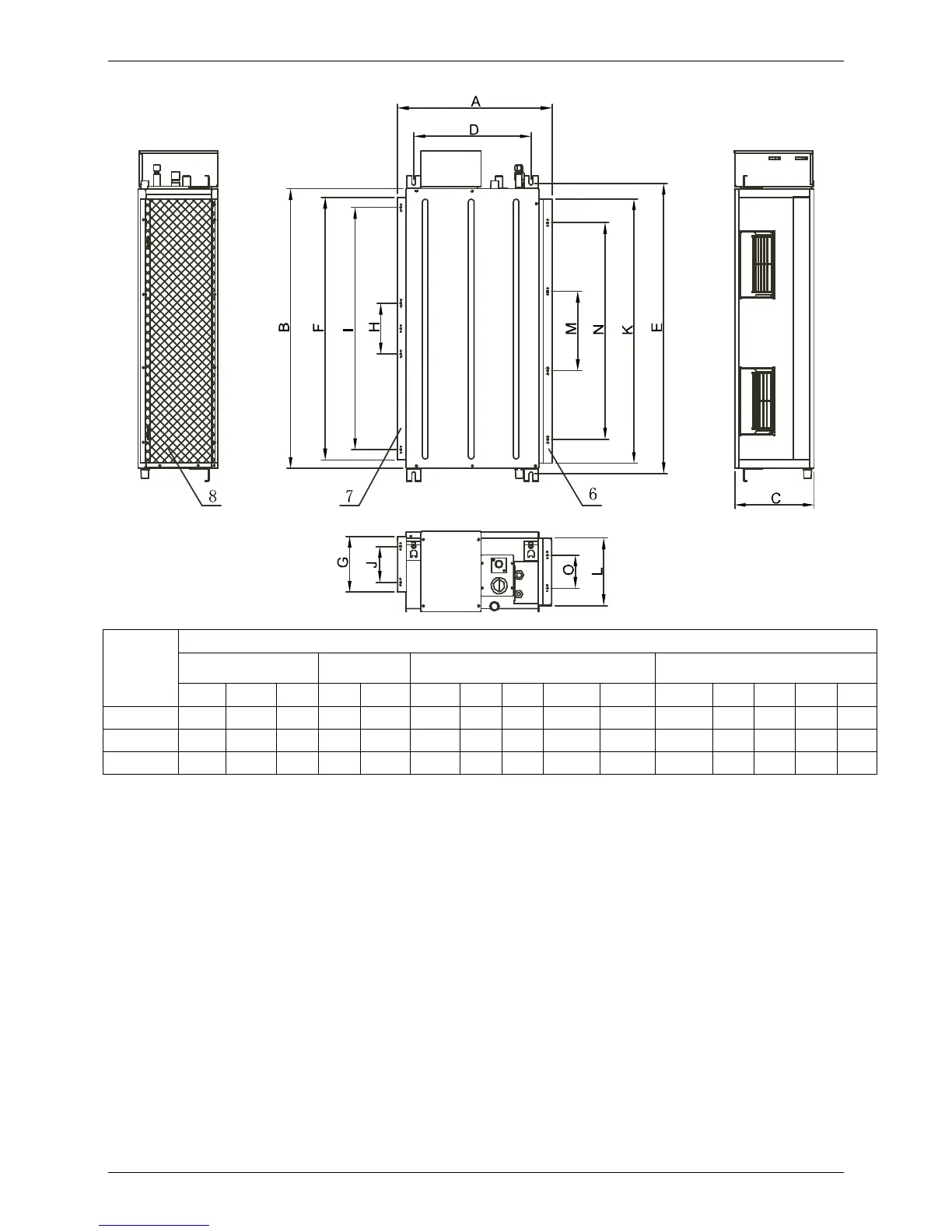

3. Dimensions
Capacity
(KBtu)
Unit: mm
Outline dimension
Size of
mounted lug
Air outlet opening size Air inlet opening size
A B C D E F G H I J K L M N O
24 525 900 270 397 936 844 185 160 780 120 851 226 215 665 110
36 525 1110 270 397 1146 1054 185 220 960 120 1061 226 315 875 110
48/60 625 1200 380 495 1236 1000 253 270 900 170 1145 334 325 925 130
