Midea mDC3203DWW3A - Page 11

Drain hose:
This unit has a special grey drain hose included. If you
choose a permanent installation you must connect this hose to the
dishwasher drain threaded connector. Use one hose clamp supplied.
Instruction:
This should be done by a professional and qualified
installer
1.
Decide the best location to run the hoses under the sink. Make sure
both hoses will reach before cutting into counter top.
2.
The quick connect faucet adapter and hoses must be removed from the
unit for both the intake and drain connections.
3. Change the intake hose to a 3/4 inch and secure tightly.
4.
Using the special grey hose supplied, tighten hose to the drain
connector.
5.
Run both hoses below the sink and attach as a permanent installation
for water intake and drainage. The special drain hose should be
attached at one end to the dishwasher, at the other end to the sink
tail pipe (not included), and secured at both ends with a clamp (one
clamp provided).
Note:
The intake hose should be connected to the HOT water pipe.
The drain hose should be below the height of the base of the
dishwasher.
6. Test the water connections to insure that there are no leaks
7.
Connect dishwasher to a 120v household, grounded outlet.
10
English
Water Hose
Water Hose
Special Grey Drain Hose
Special Grey Drain HoseSpecial Grey Drain Hose
Sink Drain
Place clamp here; insure no leakage
To the Sink HOT water pipe
Change intake valve to standard
3/4 inch dishwasher inlet hose
Grey "L" Hose to dishwasher
drain connector
Dishwasher
Tail Pipe
(Not Included)
Back of Dishwasher

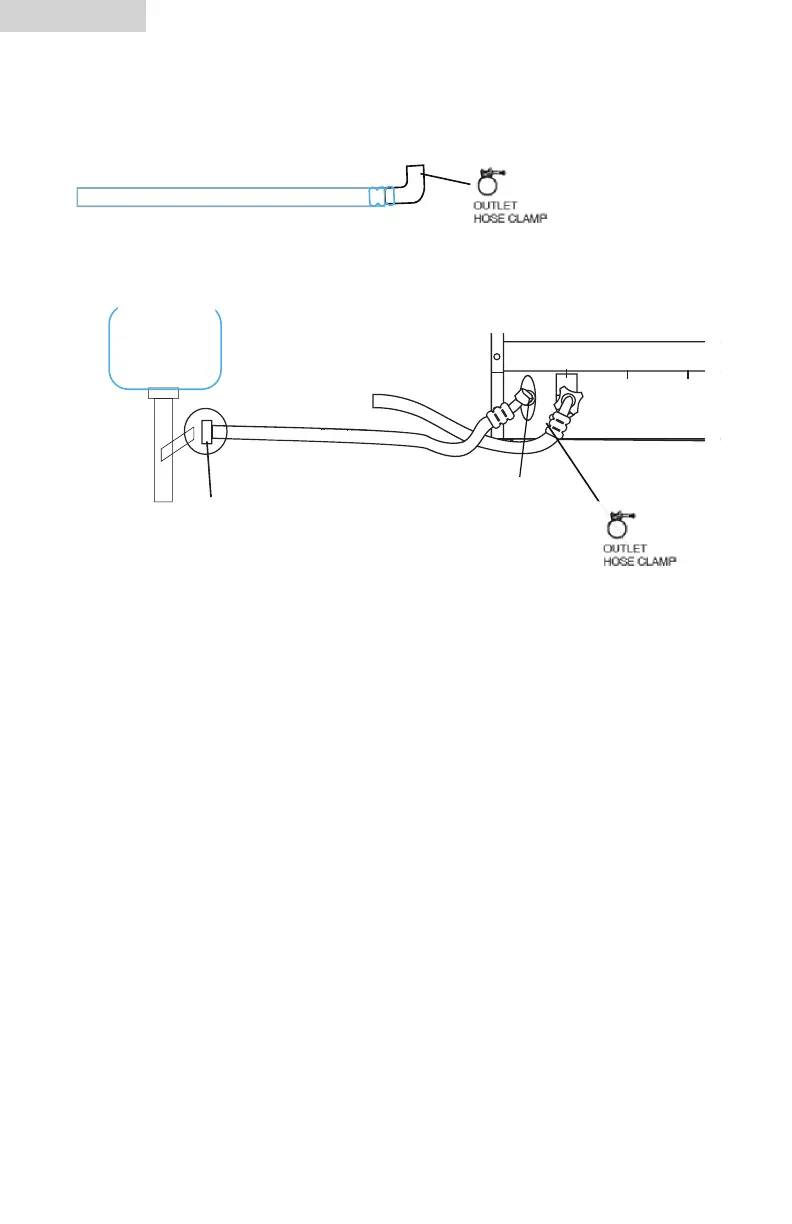

Hose connections for permanent installation
Hose connections for permanent installation
Place clamp here; insure no leakage
Purchased hose clamp
Purchased hose clamp
Sink Drain
To the Sink HOT water pipe
Back of Dishwasher
