Midea MDV-V120W/DN1 General Information

MCAC-VTSM-2013-12 R410a Full DC Inverter Mini VRF
Installation 79

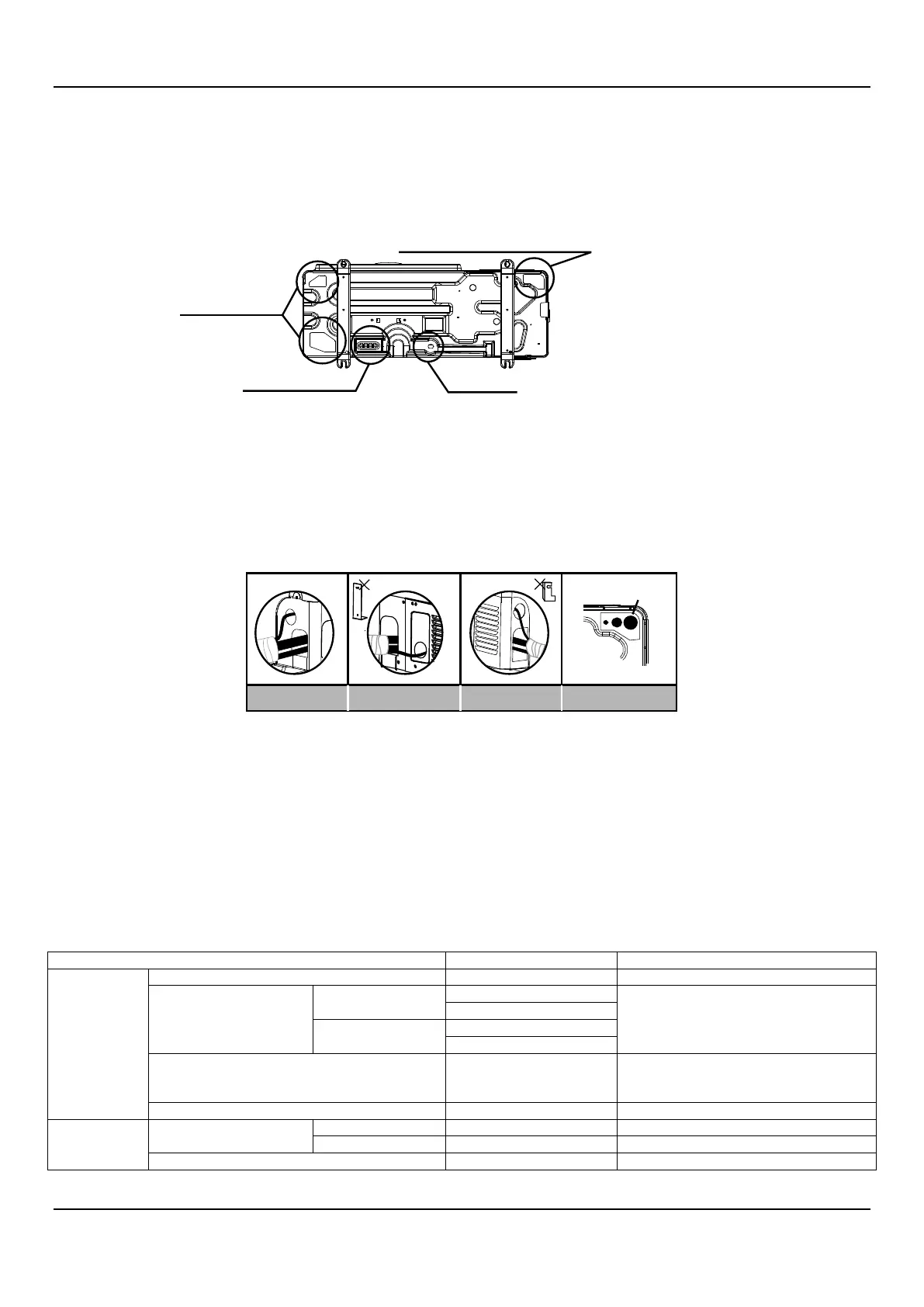

While installing the outdoor unit, pay attention to the installation place and the drainage pattern; if it’s installed at the alpine zone, the
frozen condensed water will block up the water outlet, please pull out the rubber stopper of the reserve water outlet. If that still fails to
satisfy for the water draining, please knock open the other two water outlets, and keep the water
can drain in time. Pay attention to the knock the reserve water outlet from outside to inside, and it will be beyond repair after
knocking open, please pay attention to the installation place, lest cause the inconvenience. Please do the moth proofing for the
knocked out hole, to avoid the pest processing into and destroy the components.
4. Piping installation
4.1 Piping connection
Various piping and wiring patterns can be selected, such as out from the front, the back, the side, and undersurface, etc.（The follow
display the locations of several piping and wiring knock-off interfaces）
Cautions:
Side out pipe: please remove the L-shape metal plate, otherwise cannot wiring.
Back out pipe: Please wipe off the piping support rubber blanket beside the inner outlet pipe cover of the machine while back side
getting out pipes.
Undersurface outlet pipe: the knock out should from inside to outside, and then piping and wiring through this.
Pay attention to the piping the fat connecting pipe should out from the largest hole, otherwise the pipes will be rubbed. Please do the
moth proofing for the knocked out hole, to avoid the pest processing into and destroy the components.
4.2 Allowable length and level difference of refrigerant pipe
Permitted value
Piping
Pipe Length
Total Pipe Length(Actual)
≤100m
L1+L2+L3+L4+L5+a+b+c+d+e+f
Maximum
Piping(L)
Actual Length
≤45m(80/105 model)
L1+L2+L3+L4+L5+f(The first
connecting method) or
L1+L3+L5+f(The second connecting
method)
≤60m(120~160 model)
Equivalent Length
≤50m(80/105 model)
≤70m(120~180 model)
Pipe Length (from the first branch to the
furthest IDU)
≤20m
L2+L3+L4+L5+f(The first connecting
method) or L3+L5+f(The second
connecting method)
Pipe Length(IDU to the nearest branch)
≤15m
a,b,c,d,e,f
Level
difference
Level difference
between IDU~ODU
Outdoor Unit Up
≤30m
----
Indoor Unit Down
≤20m
----
Level difference between IDU~IDU
≤8m
----
Front out pipe
Back out pipe
Side out pipe
Undersurface out pipe
Fat pipe
Reserve water outlet
Reserve water outlet
Water Outlet
Outlet for power and connecting pipes
(Need to knock open)
(With rubber stopper)
