B. Insert the center (white/neutral) wire tip through the bottom center
terminal
block opening. On certain models, the wire will need to be inserted
through the ground strap opening and then into the bottom center block
opening. Insert the two side bare wire tips into the low er left and the lower
right terminal block openings.
C. Tighten the screws until the wire is firmly secured (35 to 50 inch-lbs.). Do
not overtighten the screws.
CAUTION
Aluminum Wiring: Aluminum build ing wire may be used but it must be rated
for the correct amperage and voltage.

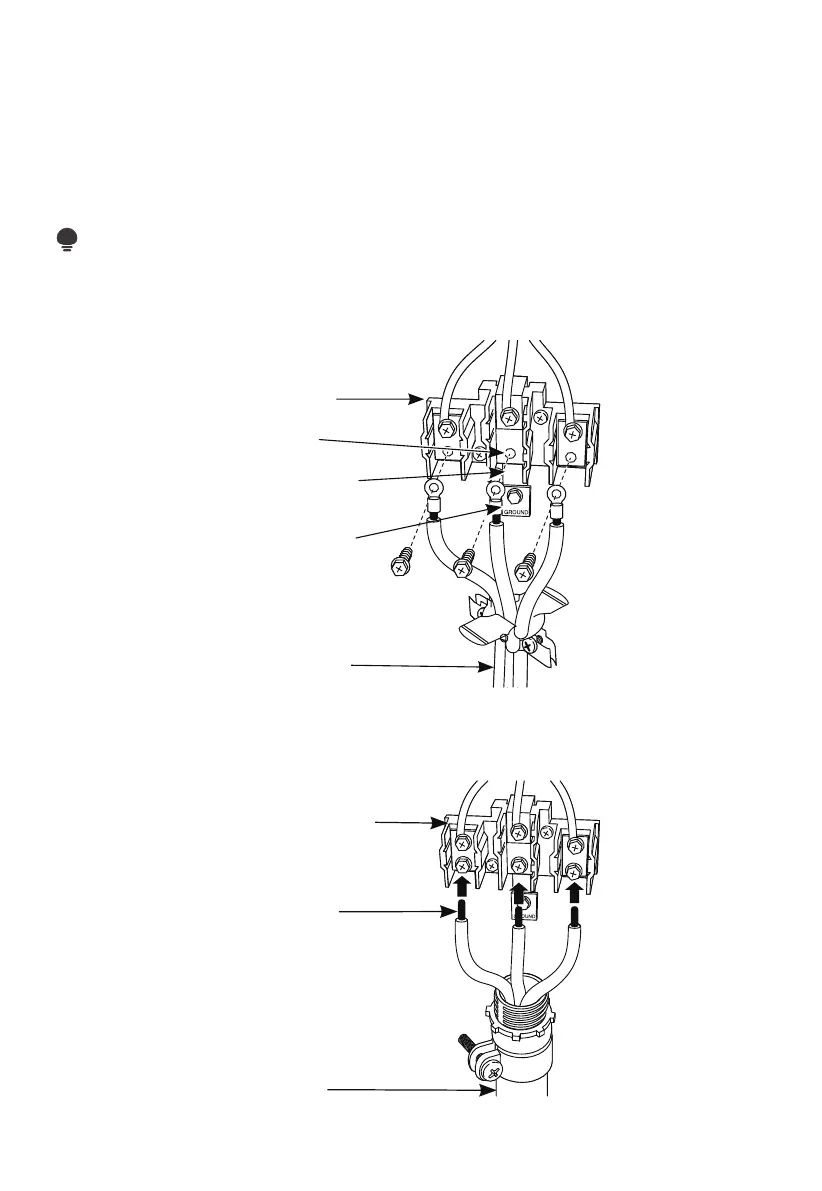

Power Cord
Conduit
Terminal Block
(appearance
may vary)
Neutral
Terminal
Ground Strap
Ground Plate
Power Cord
Terminal Block
Wire Tips
Conduit
To Next Page
