Air outlet
Air inletAir inlet
Fig-14
≥1000 mm
≥1000 mm
≥500 mm
≥1000 mm
≥1000 mm
Fig-15
NOTE:
1. In case any obstacles exist above the outdoor unit, such obstacles must be 2000mm above the outdoor unit.
2. If miscellaneous articles are piled around the outdoor unit, such articles must be 400mm below the top of the outdoor unit.

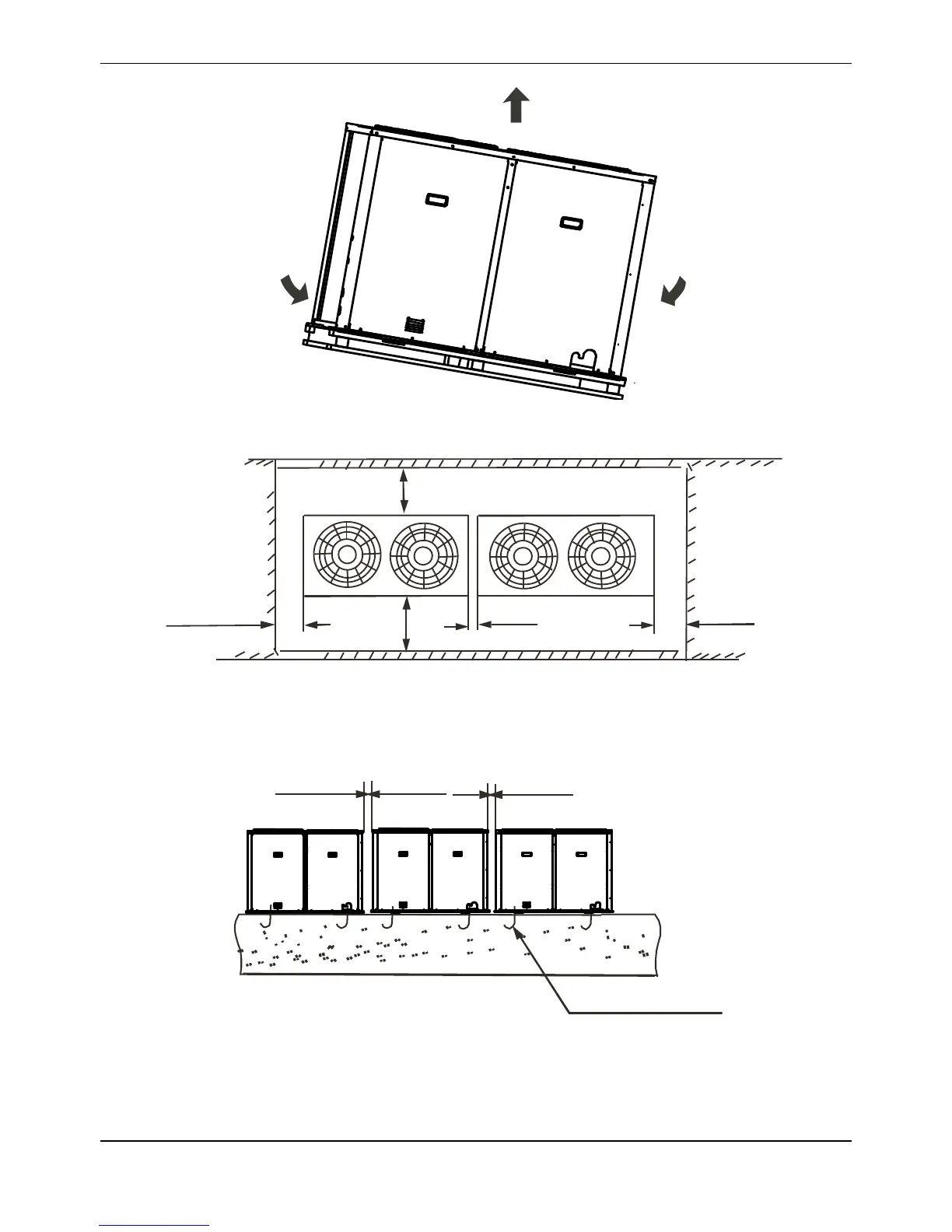

As shown in Fig-16, leave an interval of 500mm between the outdoor units.
≥500 mm
≥500 mm
M12 foundation bolt
4 screws for 1 unit
Fig-16
