R410A 50Hz Tropical Split AC MCAC-UTSM-2012-12
16

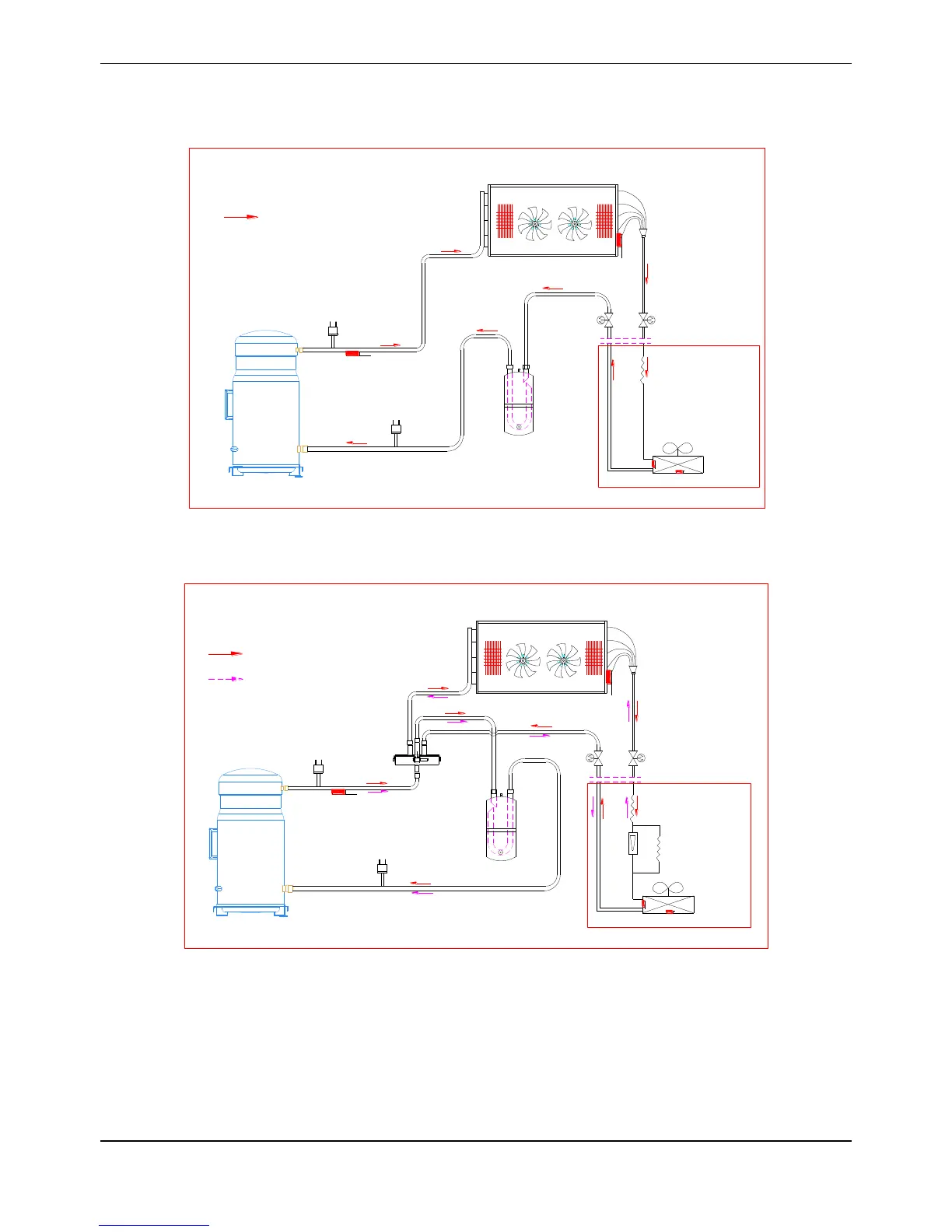

5. Refrigerant cycle diagram
5.1 Cooling only: MTA-76CRN1, MTA-96CRN1, MTA-120CR N1, MTA-150CR N1
MHB-76CRN1, MHB-96CRN1
Discharge temp. sensor
HP Switch
Compressor
Liquid-gas seperator
Outdoor heat-exchanger
Stop valve
Stop valve
Indoor unit
LP Switch
T4
T2
T3
Cooling
Indoor
heat-exchanger
5.2 Cooling and heating: MTA-76HRN1, MTA-96HRN1, MTA-120HRN1
MHB-76HRN1, MHB-96HRN1
Discharge temp. sensor
HP Switch
Compressor
4-way valve
Liquid-gas seperator
Outdoor heat-exchanger
Stop valve
Stop valve
Indoor unit
Check valve
LP Switch
T4
T2
T3
Heating
Cooling
Indoor
heat-exchanger
Capillary
Capillary
