MCAC-UTSM-2012-12 R410A 50Hz Tropical Split AC
133

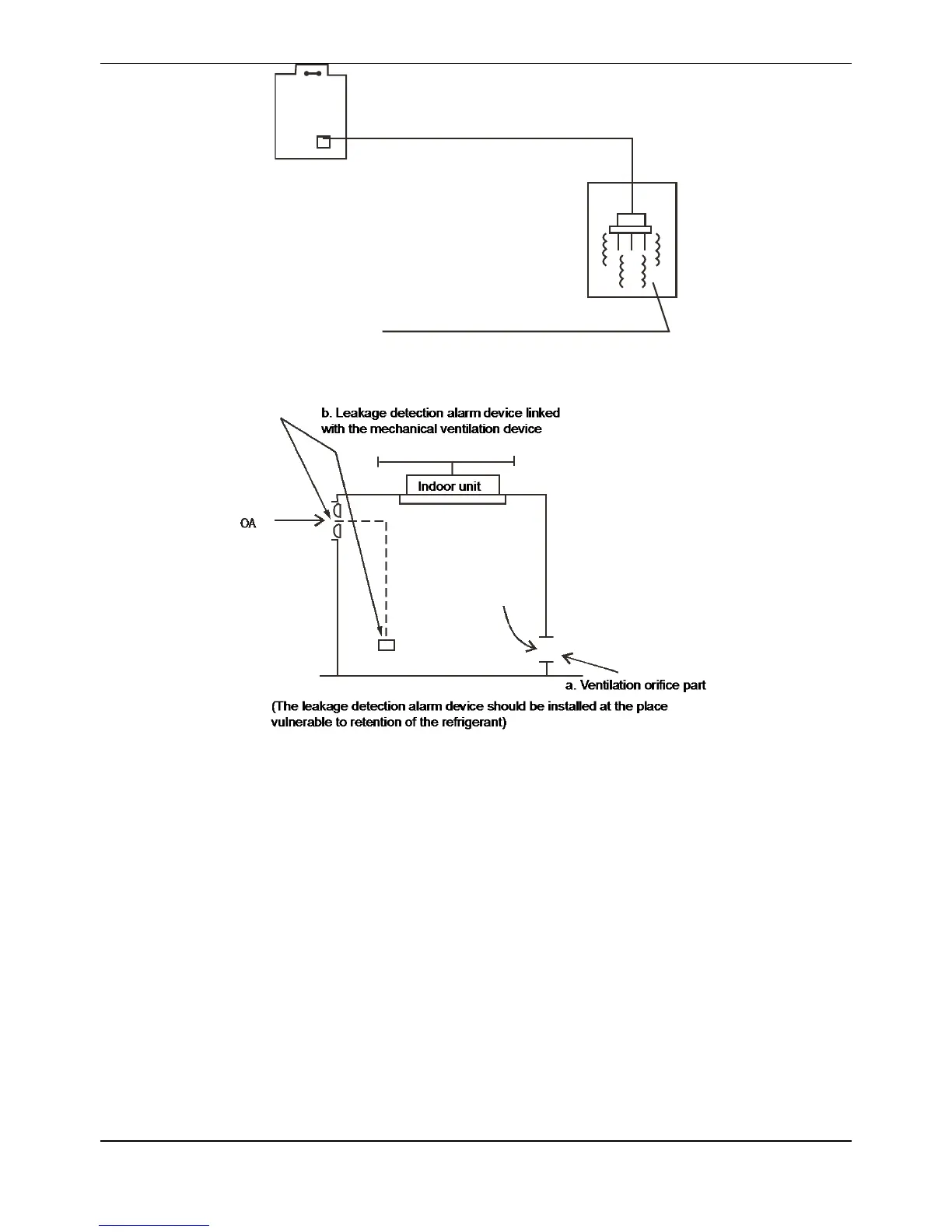

Outdoor unit
Room in which refrigerant is leaked
(All refrigerant is leaked)
Fig-24
Fig-25
3.12 Completing the Connection System Name
In case multiple systems are set, in order to identify the connection system of the indoor unit and outdoor unit,
it is necessary to give name to each system, and mark it onto the nameplate on the electric control box cover
of the outdoor unit.
NOTE:
The indoor unit and outdoor unit are categorized into system A and system B. When installing and
connecting the indoor unit and outdoor unit, identify the label carefully, and make sure that indoor unit
corresponds to the outdoor unit exactly. Otherwise, it may lead to fault of the air conditioner.
Model of indoor unit. Room name
Example: the first system indoor unit A of the 2
nd
floor is recorded as: 2F 1A.
