MCAC-UTSM-2012-12 R410A 50Hz Tropical Split AC
153

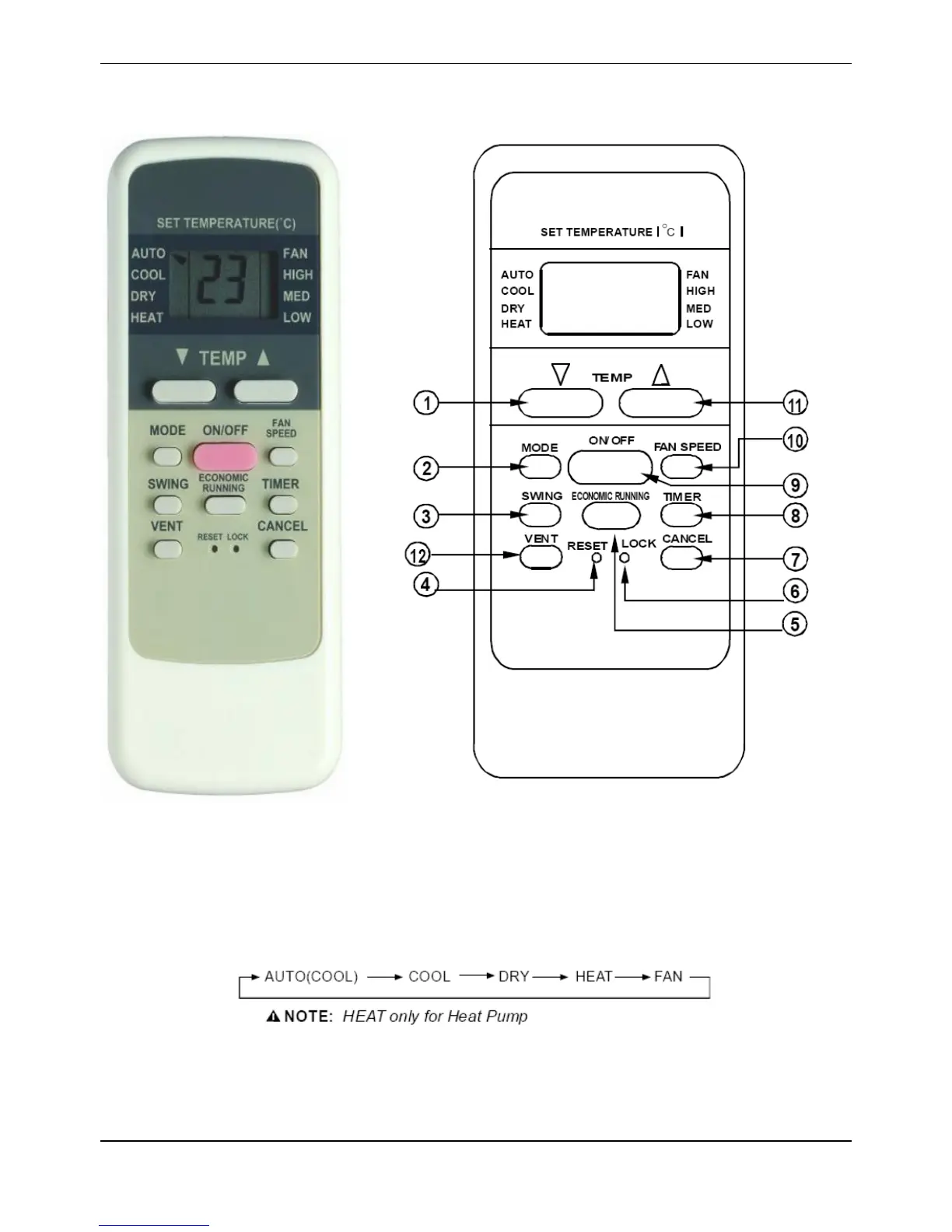

1.2 Introduction of Function Buttons on the Remote Controller
Fig-1
Note: This illustration is for explanation purposes only. The actual shape or button names of the remote controller may be slightly
different.
① TEMP Button: Push the TEMP button to decrease the indoor temperature setting or to adjust the TIMER in
a counter-clockwise direction.
② MODE Select Button: Each time you push the button, a mode is selected in a sequence that goes from
AUTO、 COOL、 DRY、 HEAT and FAN as the following figure indicates:
③ SWING Button: Push this switch button to change the louver angle.
④ RESET Button: When the RESET button is pushed, all of the current settings are cancelled and the control
will return to the initial settings.
⑤ ECONOMIC RUNNING Button: Push this button to go into the Energy-Saving operation mode.
To Next Page
