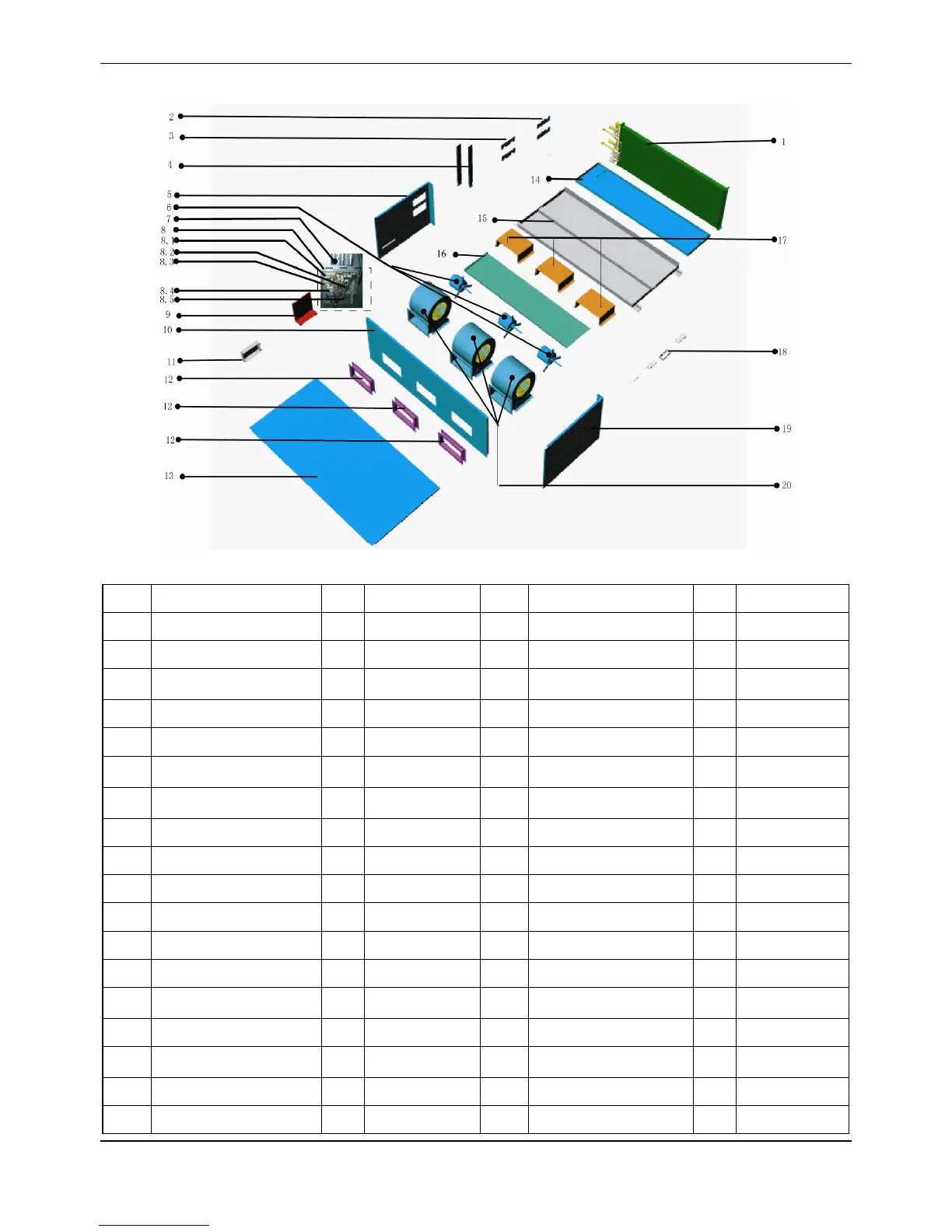

Midea MFA-96CRN1 User Manual

MCAC-UTSM-2012-12 R410A 50Hz Tropical Split AC
45
11.7 MTA-150CRN1
No.
Part Name
QTY
BOM Code
No.
Part Name
QTY
BOM Code
1
evaportator ass'y
1
201570990081
8.5
Wire joint, 7p
1
202301450056
1.1
Evaporator
1
201586900502
8.6
Wire joint
2
202301450122
1.2
Evaporator
1
201586900504
9
Components of electronic
control box cover
1
201270600180
1.3
Evaporator
1
201586900505
10
Front panel ass'y
1
201286910001
1.4
Evaporator
1
201586900506
11
Capacitor box
1
201286900512
1.5
evaportaor input pipe
ass'y(II)
1
201670990106
12
Air outlet ass'y
3
201285000612
1.6
evaporator input pipe
ass'y(I)
1
201670990104
13
Top cover ass'y
1
201286900504
1.7
Output pipe ass'y
2
201686900500
14
Drainage pan ass'y
1
201252600013
2
Pipe clamp board ass'y
2
201286900505
15
Base ass'y
1
201286910002
3
Clamp board ass'y
2
201286900524
16
Drainage pan ass'y
1
201252600023
4
Evaporator left clapboard
2
201252600012
17
Motor installation board
3
201286910000
5
Left clapboard ass'y
1
201286900502
18
Remote controller
1
203355090107
6
Motor
3
202400400071
19
Right cover ass'y
1
201286900503
8
Indoor electronic control
box components
1
203370990033
20
Volute shell ass'y
3
201200300201
8.1
E-part box
1
201285000350
21
Room temp sensor ass'y
1
202301300214
8.2
Main control board
assembly
1
201370900071
22
Temp.sensor ass'y
1
202440500002
8.3
Relay
3
202300800003
23
Display board ass'y
1
203342090023
8.4
Transformer
1
202300900093
