Midea MGA-D30W/SN1 - Wired Controller LCD Screen Functions; Display Operation Mode; Display Query Data; Display Operation Status

MCAC-2008-11 Air-cooled Modular Chiller
62

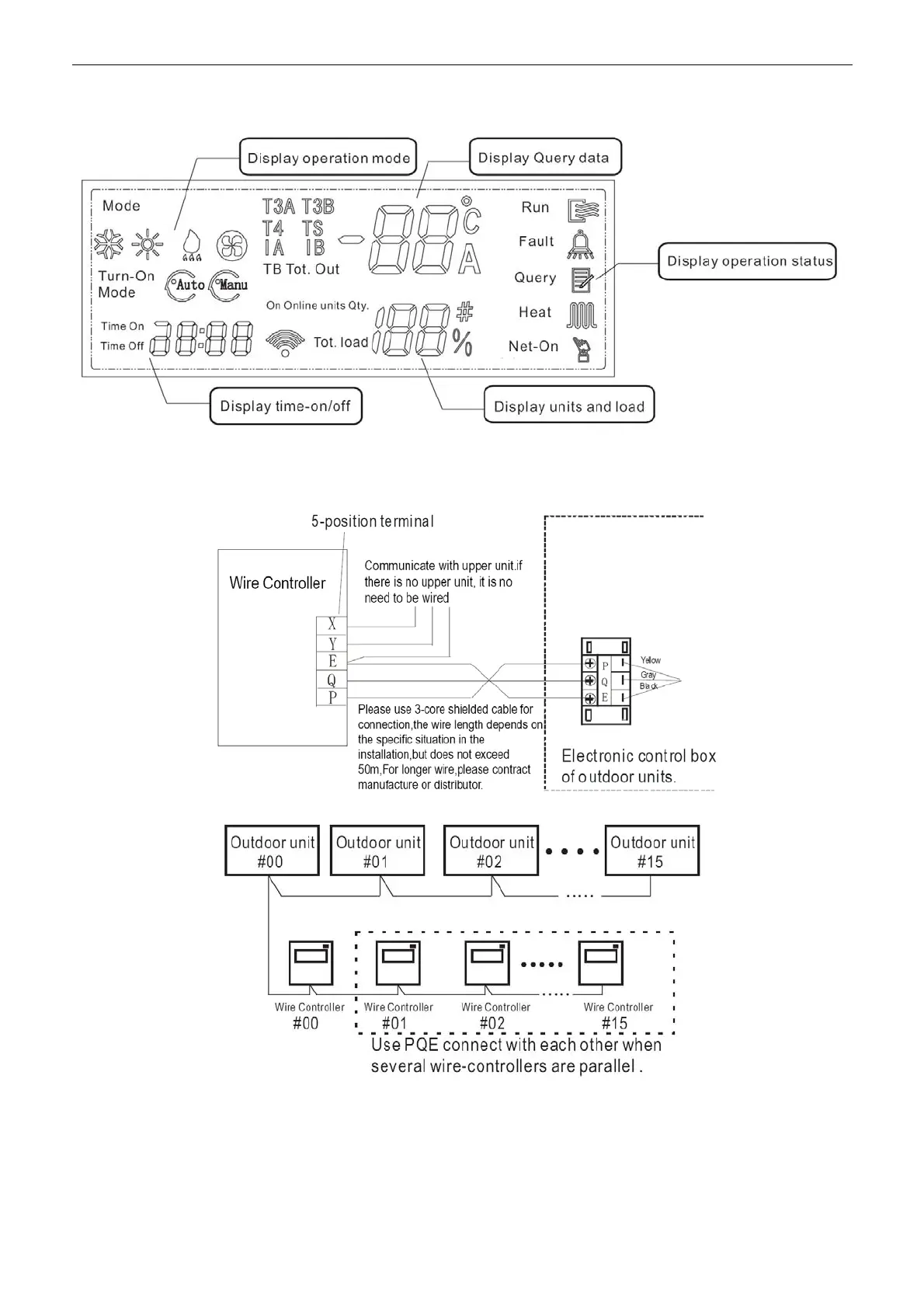

Name and function description of LCD screen of wired controller:
Installation procedure:
1. The wiring procedure and principles are shown in the figure:
Note: Use PQE position connects with each other when several wire-controllers are parallel.
2. Power connection:
