Midea MGA-F30W/SN1 - 10.4 MGA-D65 W;SN1

MCAC-2008-11 Air-cooled Modular Chiller
29

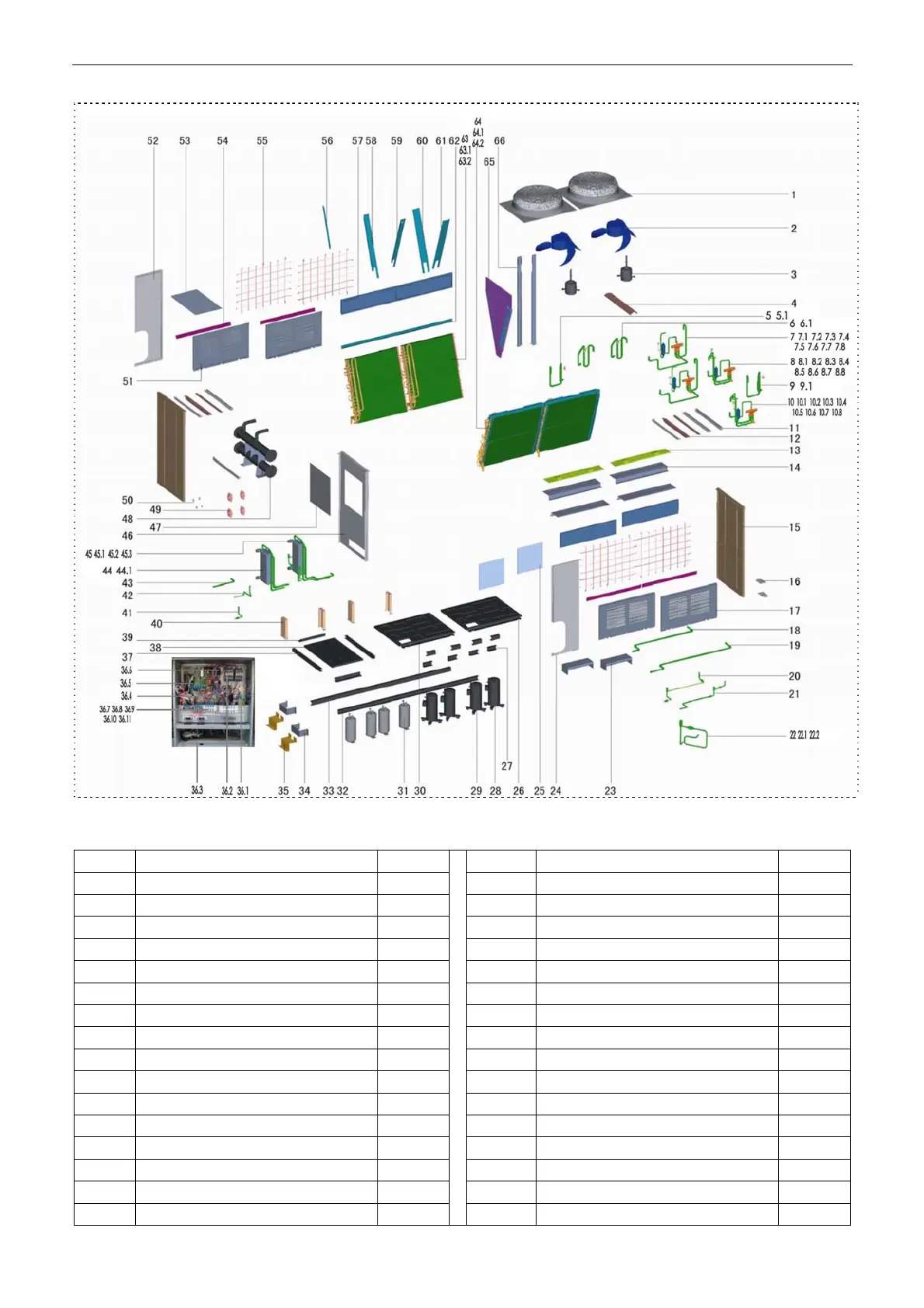

10.4 MGA-D65W/SN1
No. Part Name Quantity No. Part Name Quantity
1 Top cover 2 31
A
ccumulator cylinde
r
4
2
A
xial flow fan 2 32 Base bracket 1
3 Motor 2 33 Base bracket 1
4 Beam 1 34 Clamp 2
5 Suction pipe ass'y B 1 35 Holder for Plate Heat-exchanger 2
5.1 Pressure controller 1 36 E-part box ass'y 2
6 Suction pipe ass'y A 2 36.1 Compressor capacitor 2
6.1 Pressure controller 1 36.2 Contactor 4
7 4-way valve ass'y 2 36.3 E-part box 2
7.1 Muffler 1 36.4 Transformer 2
7.2 4-way valve 1 36.5 Main controller ass'y 2
7.3 Pipe joint 3 36.6 Relay 4
7.4 Strainer 1 36.7 Wire joint 2
7.5 Pressure controller 1 36.8 Wire joint 8
7.6 EEV solenoid 1 36.9 Wire joint 2
7.7 Discharge temp sensor 1 36.10 Wire joint, 3p 1
