MCAC-2008-11 Air-cooled Modular Chiller
68

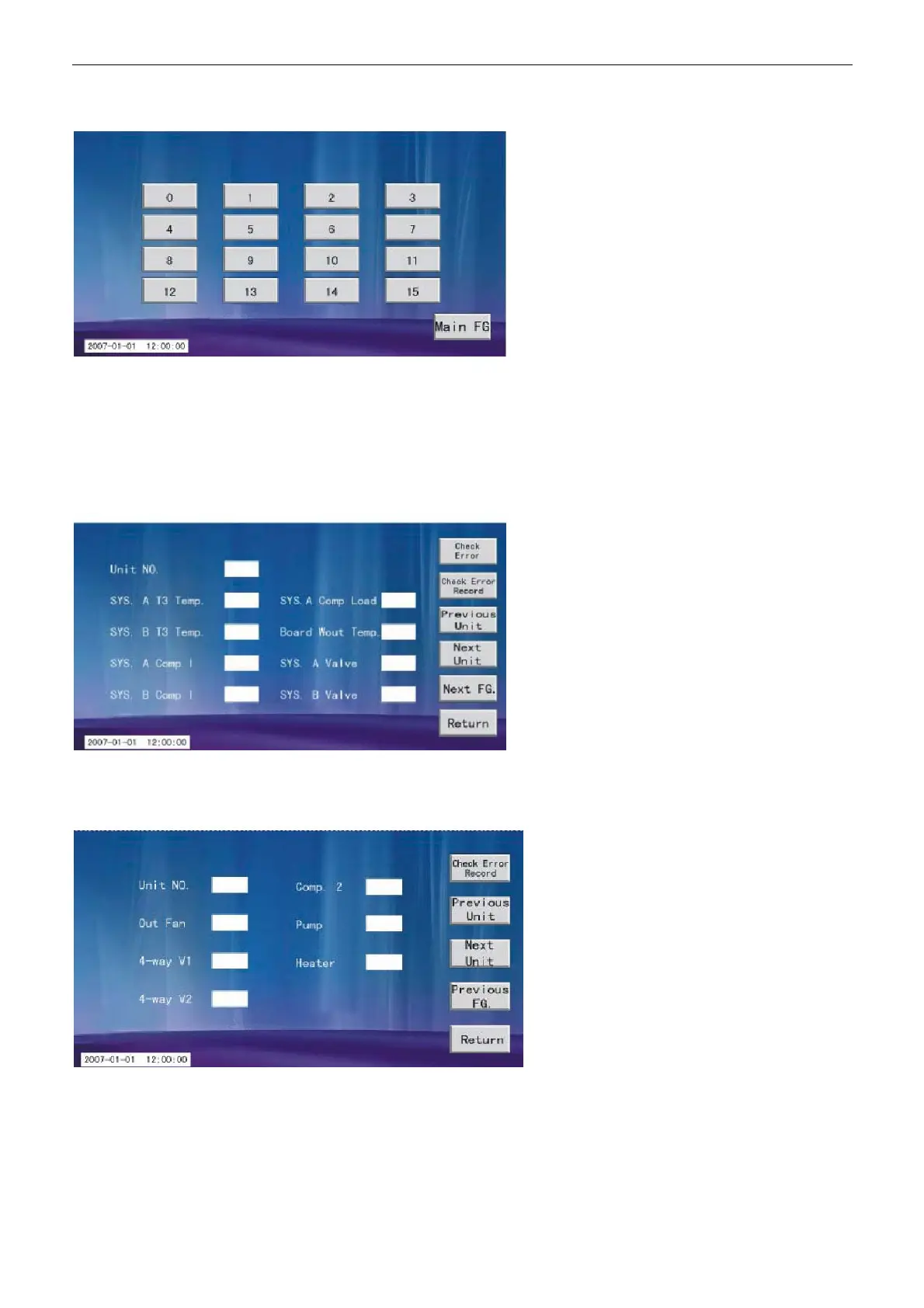

Query window
Click “query”, access to the following window:
In this page, you can query the information from unit No.0 to No.15.
On-line units’ number shows in light blue, while out-line units' number shows in gray.
Page 1 of Query Window:
Press a certain on-line units' number, the following window shows and relevant parameters of the units
system could be queried.
Page 2 of Query Window:
Press “Next FG.” button, the other information of this unit group can be queried.
Press “Next unit” or “Previous unit” can query its neighbor unit's information.
LCD setting window.
Press “Mode setting” in principal window, the following window is entered.
To Next Page
